Funn FUNNDURO Installation And Use Manual

Thank you for purchasing the FUNN FUNNDURO STEM.
Please read these instructions thoroughly before attempting to install this item.
Following all fitting instructions in order is required for compliance with FUNN's warranty policy.
tools required
． Hex key 4mm
contents

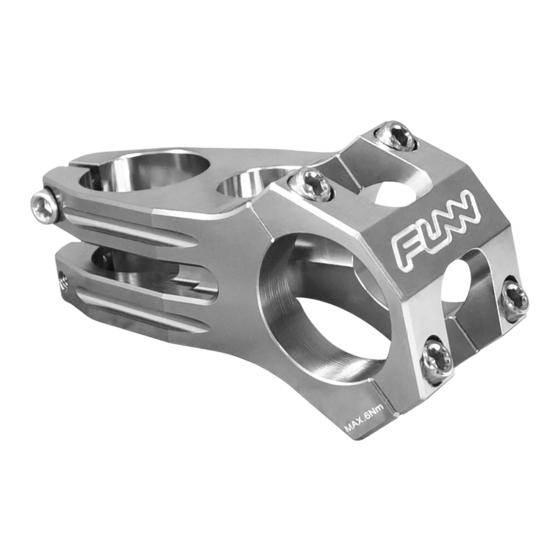

． Funnduro Stem
Steerer tube preparation
． Funnduro stem requires a 28.6mm (1 1/8") steerer tube.
Ensure the steerer tube is the correct length – there should be 2-3mm gap from the top of the spacer or stem
．
to the top of the steerer tube. If the steerer tube requires modifying to fit, ensure it is cut level.
stem installation
1. Remove all bolts. Grease the threads and under the heads.
2. Ensure the external surface of the steerer tube is both
clean and dry. Slide the stem onto the steerer, depending
on the rise or drop required.
WWW.FUNNMTB.COM
FUNNDURO STEM 2022.09.10 / REV. 0
． Torque wrench
1 PC
3. Fit the top cap and tighten the headset pre-load bolt to
remove any play while keeping the steering smoothly.
FUNNDURO STEM
INSTALLATION AND USE
2 to 3mm gap from
top of stem
to top of steerer tube.
