Thank you for purchasing this set FUNNDAMENTAL PEDALS.
Please read these instructions thoroughly before attempting to install this item.
Proper installation is required for compliance with FUNN's warranty policy.
tools required
. Hex key 2mm
. Hex key 8mm
contents
. Pedals
. Traction pins
. Traction bolts
. Screw washers

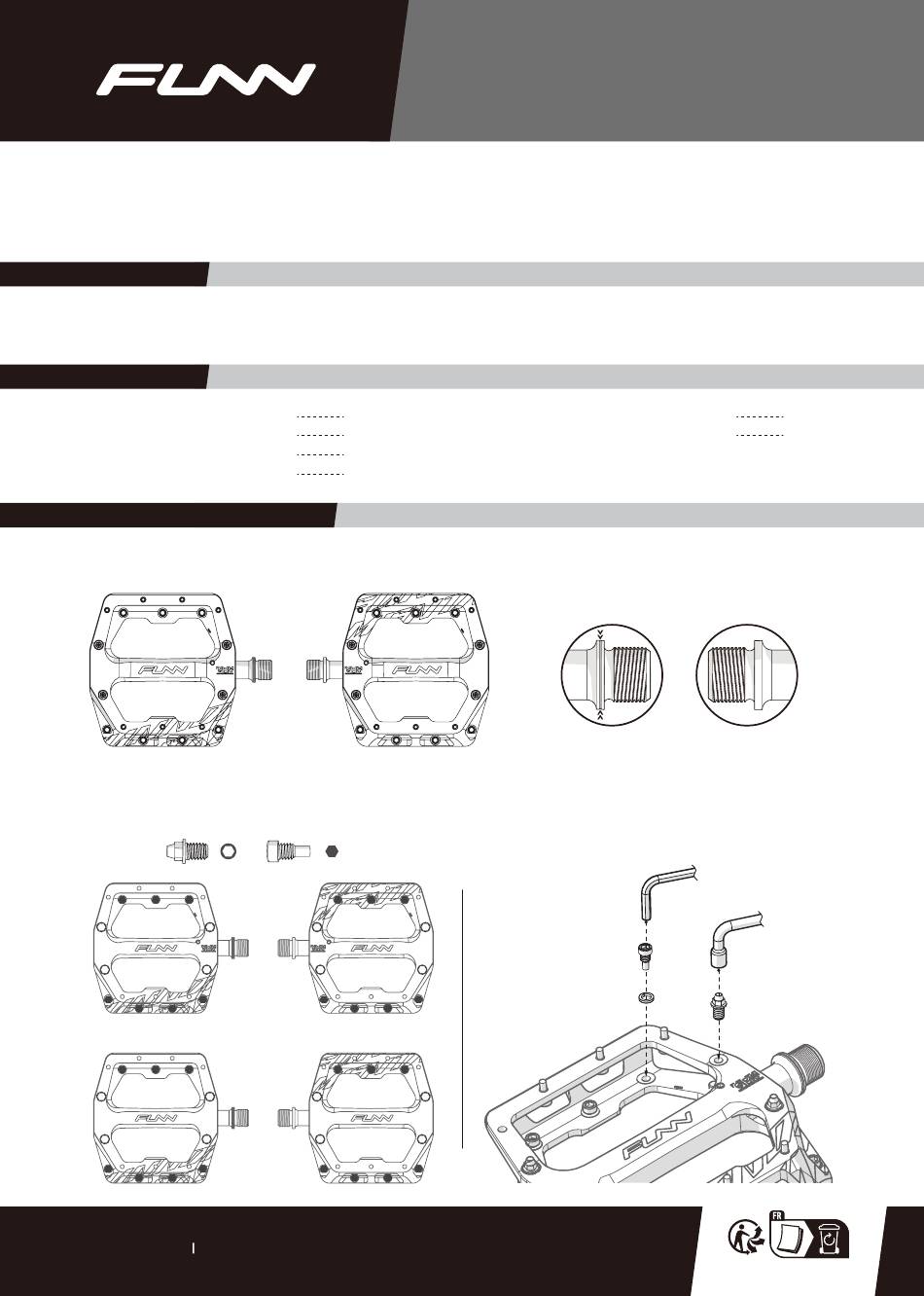

PEDAL installation
1. Identify the left and right hand side pedals. The left side pedal has a lathed mark on the axle head.
LEFT
2. Install the traction bolts and pins with the 3mm hex key and 4mm socket wrench, respectively.
You can fine tune the height of bolt with the 1mm washers. Do not use more than one washer per bolt.
LEFT
WWW.FUNNMTB.COM
FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0
1 SET
16 PCS
28 PCS
28 PCS
RIGHT
RIGHT
FUUNDAMENTAL PEDALS
. Hex key 3mm
. Socket wrench 4mm
. Hex key 3mm
. Socket wrench 4mm
LEFT
Hex key 3mm
INSTALLATION AND USE
INSTALLATION AND USE
1 PC
1 PC
RIGHT
Socket wrench 4mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUNNDAMENTAL PEDALS and is the answer not in the manual?

Questions and answers

Summary of Contents for Funn FUNNDAMENTAL PEDALS

  • Page 1 INSTALLATION AND USE Thank you for purchasing this set FUNNDAMENTAL PEDALS. Please read these instructions thoroughly before attempting to install this item. Proper installation is required for compliance with FUNN’s warranty policy. tools required . Hex key 2mm . Hex key 3mm ....
  • Page 2: Installation And Use

    3. Tighten the bolt back on to seal the GRS port. 4. The GRS is for light lubrication once in a while, we recommend a full rebuild every 6 months. Hex key 2mm WWW.FUNNMTB.COM FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 3: Tools Required

    Welcome to the Funndamental Pedals Bearing and Axle Replacement Guide Before beginning the maintenance on Funndamental pedals, ensure a seamless process by utilizing high-quality tools to avoid damaging the screw sockets. It's advisable to service your pedals one side at a time to avoid mixing up parts. Additionally, be mindful of thread directions, as indicated by diagrams on both sides of the pedal, and pay special attention when handling these specific parts.
  • Page 4 BEARING / Axle Replacement step 1 : Remove the side cap using a 6mm hex key. 6mm hex key step 2 : Remove the spacer using a tweezers. WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 5 Axle nut LEFT RIGHT Axle nut Spacer 8mm hex key step 4 : Inside the axle bore, you'll find an o-ring. Use tweezers to gently remove it. WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 6 Secure the M4 nut with a 7mm open-end wrench, and use the 3mm hex key to tighten step 6 : the M4 bolt. Continue tightening the M4 bolt until the bearing is extracted. 3mm hex key 3mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 7 Push and screw the bushing remover tool into the bushing within the pedal body. Once step 8 : the remover is fully engaged with the bushing, pull it out to remove the bushing. WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 8 Then remove the spacer using a tweezers. Spacer 5-6Nm Bearing 6mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 9 Spacer Axle nut LEFT RIGHT 8-9Nm 8-9Nm Axle nut Spacer 8mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
  • Page 10 Reattach the side cap using a 6mm hex key. After installation, check that the axle rotates step 14 : smoothly and is free from any side-to-side movement. 5-6Nm 6mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 FUNNDAMENTAL PEDALS 2024.04.23 / REV. 0...
