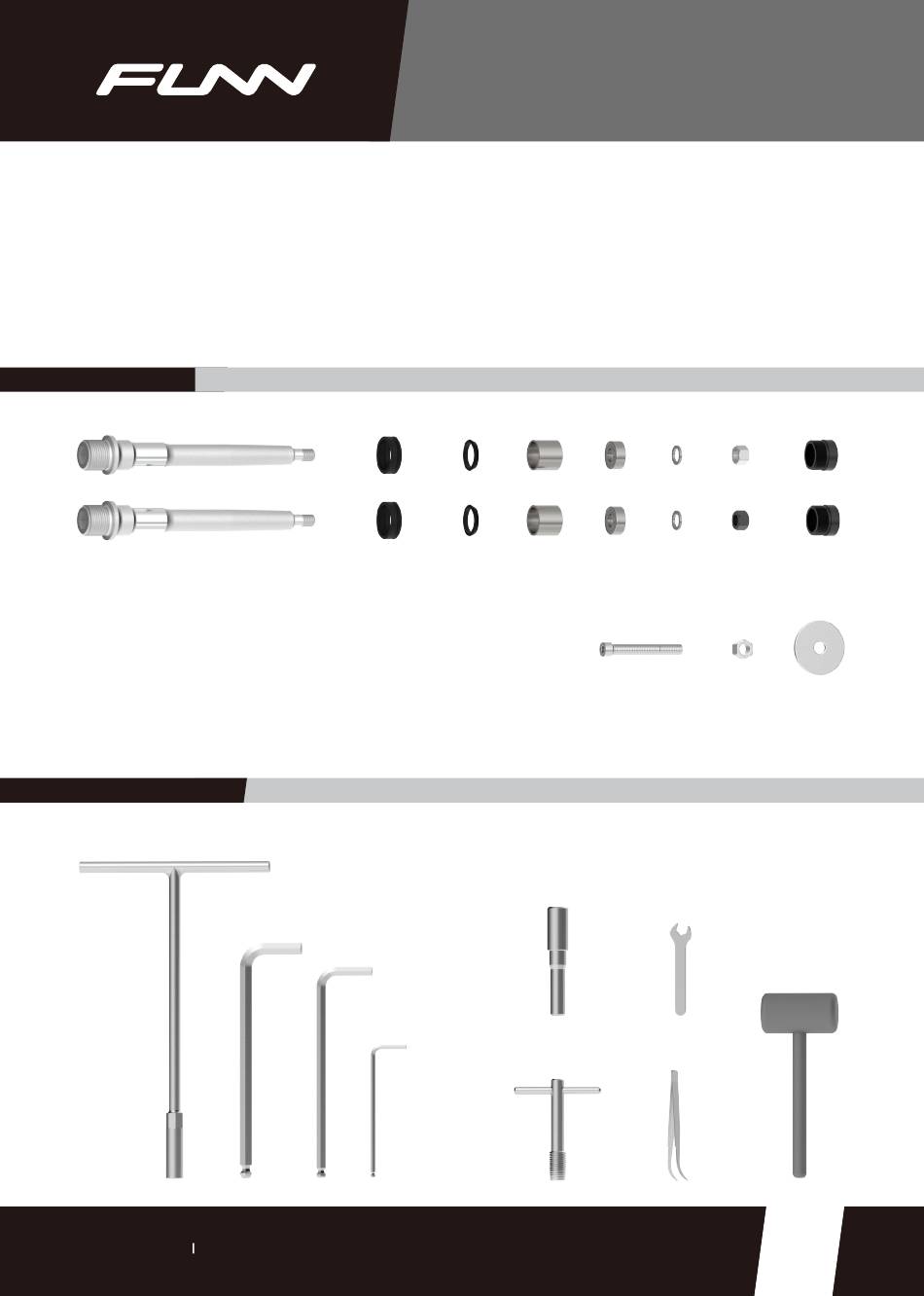

Welcome to the Mamba Pedals Bearing and Axle Replacement Guide
Before beginning the maintenance on Mamba pedals, ensure a seamless process by utilizing high-quality tools to avoid
damaging the screw sockets. It's advisable to service your pedals one side at a time to avoid mixing up parts. Additionally, be
mindful of thread directions, as indicated by diagrams on both sides of the pedal, and pay special attention when handling
these specific parts.
new axle kit
Pedal axles
tools required
8mm socket wrench
8mm hex key
WWW.FUNNMTB.COM
WWW.FUNNMTB.COM
MAMBA PEDALS 2024.04.22 / REV. 0
TAIPAN PEDALS 2024.04.15 / REV. 0
Outer seals
Inner seals
6mm hex key
3mm hex key
MAMBA PEDALS
BEARING / Axle Replacement
Bushings
Bearings
Spacers
M4 bolt
Bushing press
7mm open-end wrench
Tweezers
Bushing remover
Axle nuts
Side caps
M4 nut
Spacer
Plastic hammer
01
Advertisement
Related Manuals for Funn MAMBA
Summary of Contents for Funn MAMBA
- Page 1 Welcome to the Mamba Pedals Bearing and Axle Replacement Guide Before beginning the maintenance on Mamba pedals, ensure a seamless process by utilizing high-quality tools to avoid damaging the screw sockets. It's advisable to service your pedals one side at a time to avoid mixing up parts. Additionally, be mindful of thread directions, as indicated by diagrams on both sides of the pedal, and pay special attention when handling these specific parts.
- Page 2 2 : Be aware of the thread direction on each side of the pedal. Spacer Axle nut LEFT RIGHT Axle nut Spacer 8mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
- Page 3 To extract the bearing from inside the pedal, start by inserting an M4 bolt into the pedal body step 4 : with a 3mm hex key. Then, fit a washer and M4 nut onto the M4 bolt . 3mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
- Page 4 Secure the M4 nut with a 7mm open-end wrench, and use the 3mm hex key to tighten step 5 : the M4 bolt. Continue tightening the M4 bolt until the bearing is extracted. 3mm hex key 3mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
- Page 5 Push and screw the bushing remover tool into the bushing within the pedal body. Once step 7 : the remover is fully engaged with the bushing, pull it out to remove the bushing. WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
- Page 6 Make sure the side cap absolutely bottoms out to make sure the bearing is properly seated. 5-6Nm Bearing 6mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
- Page 7 Spacer Axle nut LEFT RIGHT 8-9Nm 8-9Nm Axle nut Axle nut Spacer Spacer 8mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
- Page 8 Reattach the side cap using a 6mm hex key. After installation, check that the axle rotates step 12: smoothly and is free from any side-to-side movement. 5-6Nm 6mm hex key WWW.FUNNMTB.COM WWW.FUNNMTB.COM TAIPAN PEDALS 2024.04.15 / REV. 0 MAMBA PEDALS 2024.04.22 / REV. 0...
