Thank you for purchasing this BLACK MAGIC PEDALS.
Please read these instructions thoroughly before attempting to install this item.
Proper installation is required for compliance with FUNN's warranty policy.
tools required
． Hex key 6mm
contents
． Pedals

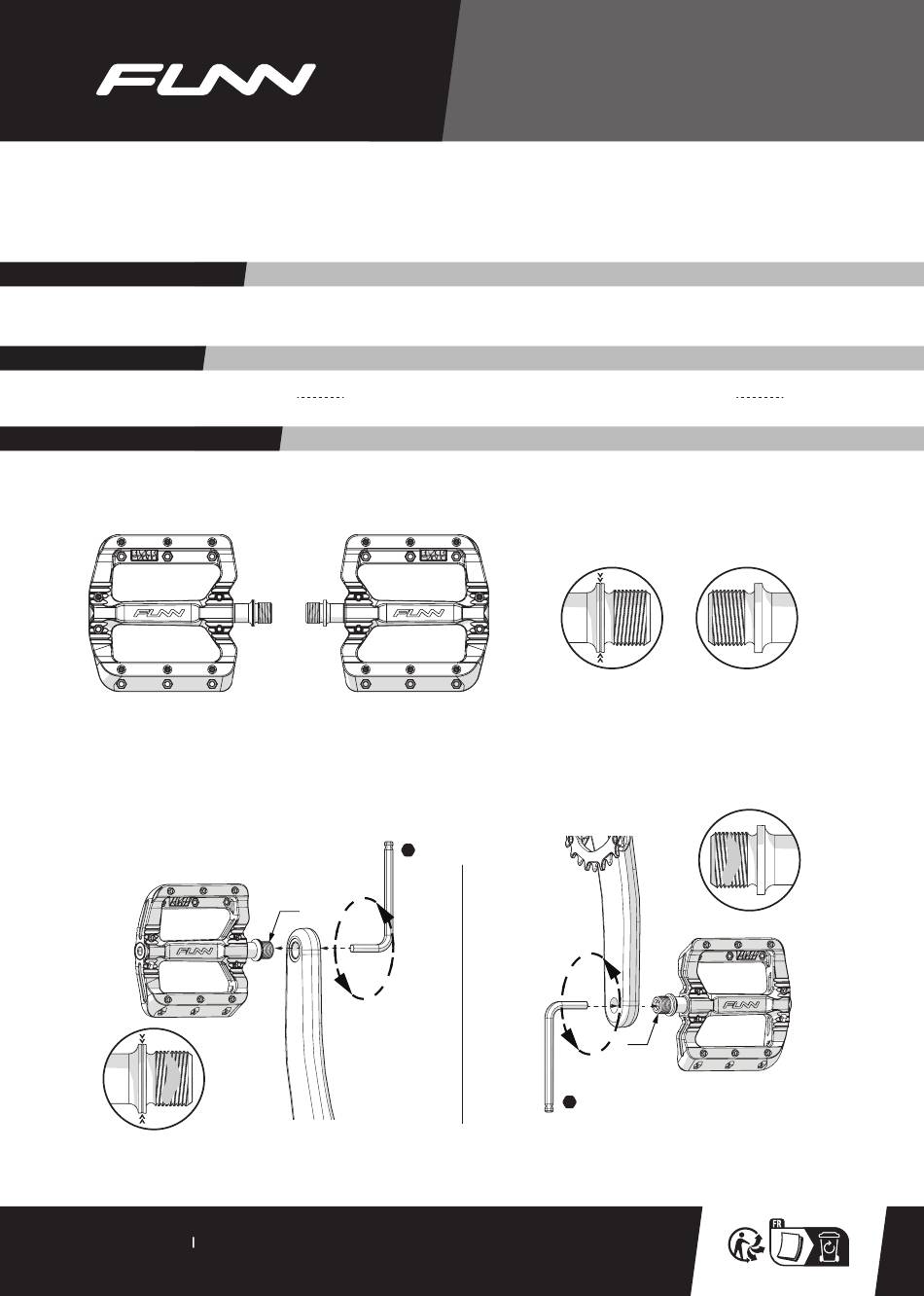

PEDAL installation
1.
Begin by identifying the left and right pedals. The left side pedal has a single indented line surrounding the spindle.
LEFT
2.
Lightly lubricated the axle thread with grease before installing onto the crankset.
3.
Thread the axle into the crank hole with your fingers. Please follow the illustrated directions for tightening the left
and right pedals.
4.
Insert a 6mm hax key to further tighten the screw to 34Nm (300 lb-in) torque and avoid excessive force.
LEFT
WWW.FUNNMTB.COM
BLACK MAGIC PEDALS 2022.02.10 / REV. 0
1 SET
RIGHT
6mm
34 Nm
BLACK MAGIC PEDALS
． Socket wrench 4mm
． Socket wrench 4mm
LEFT
34 Nm
6mm
INSTALLATION AND USE
1 PC
RIGHT
RIGHT
