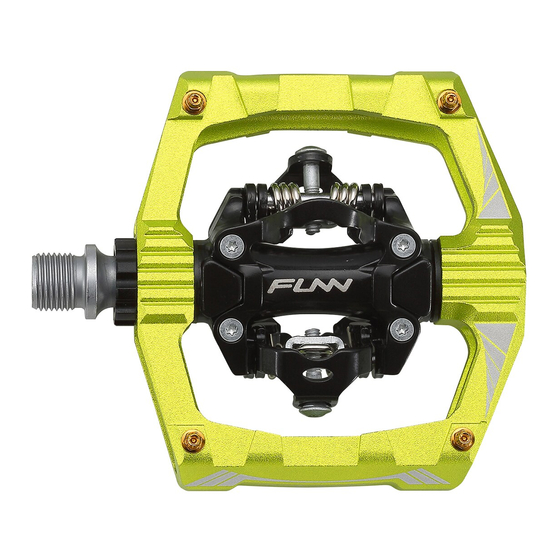

Thank you for purchasing this RIPPER CLIPLESS PEDALS.
Please read the instructions thoroughly before attempting to install this item.
Proper installation is required for compliance with FUNN's warranty policy.

tools required

. Hex key 3mm
. Hex key 8mm

contents

. Pedals
. Traction pins

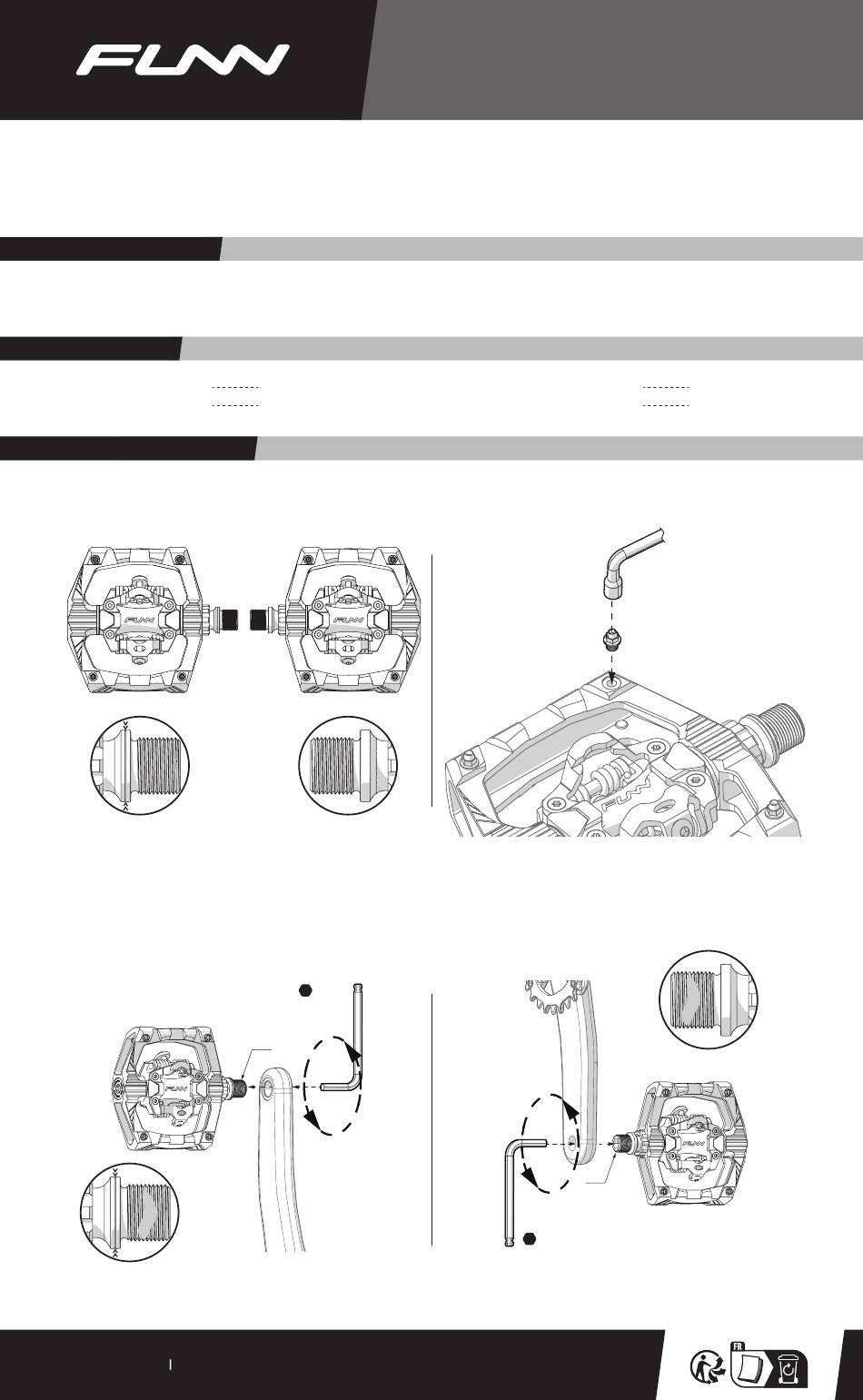

PEDAL installation

1.
Begin by identifying the left and right pedals. The left side
pedal has a single indented line surrounding the spindle.
LEFT RIGHT
LEFT
3.
Lightly lubricate the axle threads with anti-size grease before installing to the crankset.
4.
Thread the axle into the crank hole with your fingers. Please follow the illustrated directions for tightening the left and
right pedals.
5.
Insert a 8mm hex key to further tighten the screw to 34Nm (300 lb-in) torque and avoid excessive force.
LEFT
WWW.FUNNMTB.COM
RIPPER CLIPLESS PEDALS 2022.08.20 / REV. 1
1
SET
16
PCS
RIGHT
8mm
34 Nm
RIPPER CLIPLESS PEDALS
. Socket wrench 4mm
. Cleat kit
. Socket wrench 4mm
2.
Install the traction pins with the 4mm socket wrench.
34 Nm
8mm
INSTALLATION AND USE
1
SET
1
PC
Socket wrench 4mm
RIGHT
