4.2 TEMPERATURE CONTROL
There are several options available on CLASS UNIT units to ensure a comfortable tempera-
ture. The options are controlled either via supply or extract air temperature.
Supply Air Temperature
Supply temperature control is the default setting. This involves keeping a constant supply air temperature without consi-
deration to the load in the premises. The supply air temperature is measured on sensor T5.
Extract Air Temperature
The default temperature control can be changed to Extract temperature control via the advanced setup.
The extract air temperature is measured on sensor T2. Extract air control involves keeping a constant temperature in the
extract air duct (premises), by controlling the supply air temperature. This provides a uniform temperature in the pre-
mises regardless of the load. The internal sensor T2 can be replaced with the optional external room temperature sensor
(CID370042).

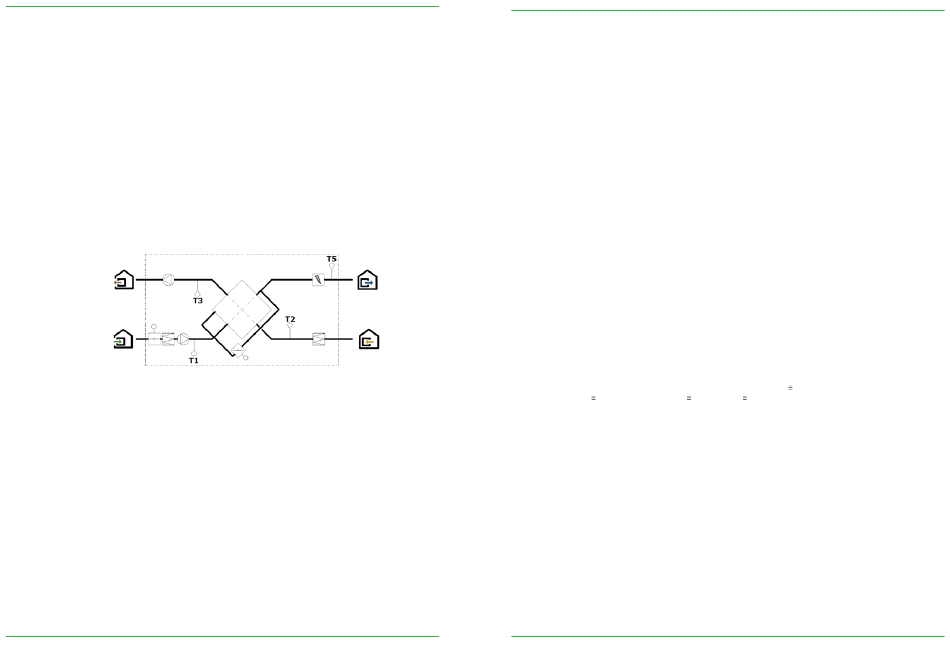

Temperature sensor positioning :
12
Operation and maintenance
instructions – CLASS UNIT TAC5
4.4 FROST PROTECTION
PLATE HEAT EXCHANGER
There are three strategies to protect the plate heat exchanger from freezing :
•
1 - Reduced supply air flow :
The heat exchanger is supplied with a frost protection sensor on the exhaust air (T3). If the exhaust air
temperature (T3) is >1°C and <+5°C :
• In airflow control mode and demand control, the supply air flow will modulate between 100% and 33%
(AFlow)of the setpoint (AFn)
• In pressure control mode, the supply air pressure will modulate between 100% and 50% (AFlow) of the setpoint
(AFn)
If the exhaust air temperature (T3) is <1°C, the supply air fans will stop until the exhaust air temperature (T3) is
>2°C for 5 minutes.
•
2 - Modulating bypass :
The modulating bypass is controlled by the exhaust temperature sensor (T3). If:
• Exhaust temperature (T3) >+1°C: bypass closed or controlled by free cooling function
• Exhaust temperature (T3) ≤ +1°C: bypass will modulate for the exhaust temperature (T3) to exceed +1°C.
The corresponding supply air temperature will drop due to a lower airflow through the heat exchanger
These Settings can be configured in ADVANCED SETUP
4.5 TIME SCHEDULE
The controller allows 6 time slots (channels) to be configured. For each day of the week,
the operation mode can be either AUTO (operate according to time slots) or OFF.
For each time slot select :
•
In airflow control mode: the airflow by selecting m³h K1 / m³h K2 / m³h K3 / OFF (stop)
•
In demand control mode :
• with only one 0-10 V signal (default) or with 2 signals to control the
supply airflow: the link LS (percentage of the nominal link, cfr m³/h Vmin
and m³/h Vmax in setup OR cfr %TQ Vmin and %TQ Vmax in setup) and
the rate of the exhaust airflow by the supply airflow.
• with one 0-10 V signal for supply and one 0-10 V signal for exhaust (via
advanced setup): one link LS (percentage of the nominal link) for supply
and one for exhaust.
Operation and maintenance
instructions – CLASS UNIT TAC5
13
