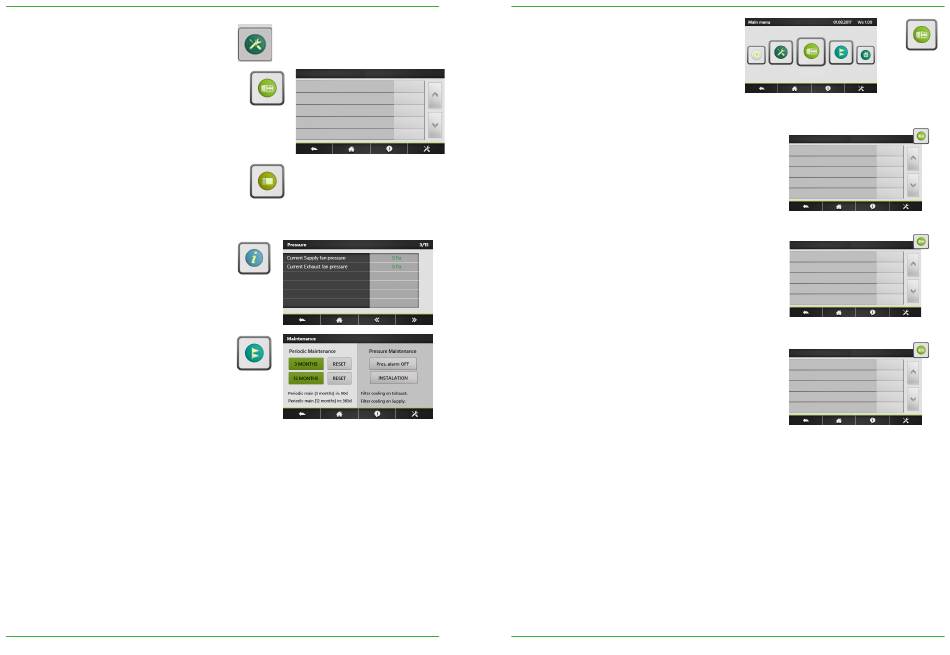

Setup
Basic Setup
The basic setup menu will guide the user
through the most critical settings of the
air handling unit. This setup procedure is
described in detail, section 5.1.3
Advanced setup
A code and a special training are desired
for access to this menu.
Readings
The operating status and the Settings can
be read. Used for performance checks and
for generally checking Settings, settings,
power consumption, etc. No Settings can
be altered in this menu group.
Maintenance
Configuration of service related settings.
A maintenance warning interval can be
configured as wel as the filter clogging
alarm.
18
PARAMETRES
LANGUAGE
UNITS
AIRFLOW REGULATION
TEMPERATURE
FIRE ALARM
Operation and maintenance instructions – CLASS UNIT TAC5
5.1.3 BASIC SETUP
When the air handling unit is started up for the
first time, the commissioning menu is automati-
cally displayed. At the very end of the commis-
sioning (menu) the commissioning of the unit
has to be confirmed by the service technician.
Once the commissioning has been confirmed,
the commissioning menu will not be displayed as
first menu any more. The commissioning menu,
however, will remain accessible through the ad-
vanced setup. See Section 5.1.4.
Language
The language desired can be set here. The language setting can
be changed at any time in the basic setup menu.
Setting Settings Factory
range setting
Language Languages as English
displayed
Units
The desired unit can be set here. The unit setting can be changed
at any time in the basic setup menu.
Setting Settings Factory
range setting
Unit m³/h m³/h
l/s
Airflow regulation
The desired control mode can be set here. The setting can be
changed at any time in the basic setup menu. Depending on
the selected function, flows can be set as (l/s, m³/h), pressure
(Pa), input signal strenght (%) or torque (%). For both "Airflow
control" and "Torque control", three setpoints are available: Low,
medium and high.
Setting Settings Factory
range setting
Operating mode OFF Airflow
Airflow
Demand control
Pressure
Torque
Operation and maintenance instructions – CLASS UNIT TAC5
PARAMETRES
PARAMETRES
LANGUAGE
UNITS
AIRFLOW REGULATION
TEMPERATURE
FIRE ALARM
PARAMETRES
LANGUAGE
UNITS
AIRFLOW REGULATION
TEMPERATURE
FIRE ALARM
PARAMETRES
LANGUAGE
UNITS
AIRFLOW REGULATION
TEMPERATURE
FIRE ALARM
