Tools Needed - MULTIQUIP WHITEMAN HTXD6i Manual

The specialized tools listed in Table 1 are required to maintain and service the HTXD6i and STXD6i ride-on trowels. Fleet
technicians and servicing dealers must have these tools for efficient unit setup and component calibration.
Tool
Tool Kit
CAN Gateway Cable
Gauge Tool (3.25")
Gauge Tool (2.25")
Set Up Jumper
Pedal Wrench
page 10 — HTXD6i/STXD6i Trowel • SeTUp, aDJUSTMeNTS aND CalIBraTIoNS — rev. #0 (03/14/13)

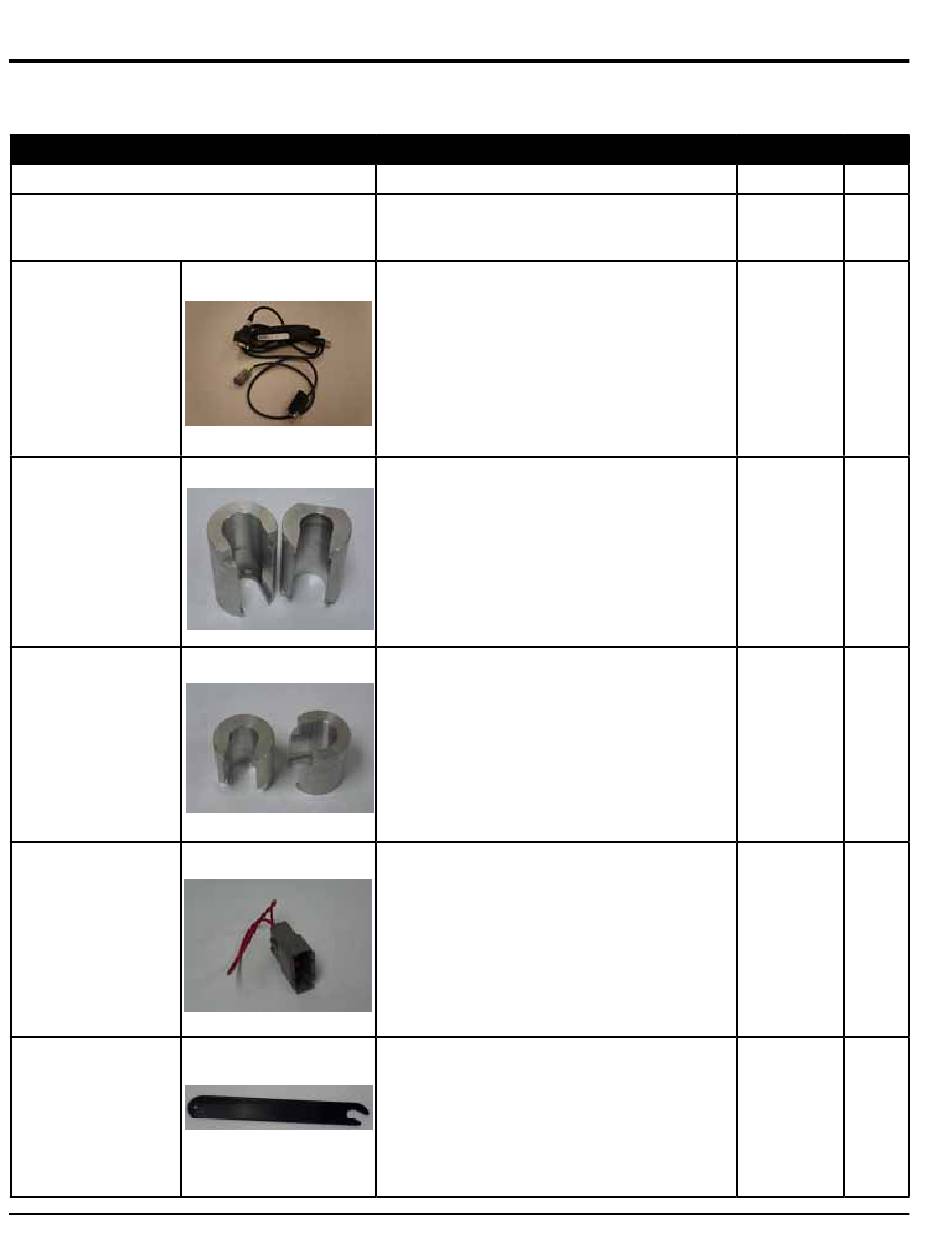

Table 1. Setup, Calibration, and Diagnostic Tools
Required to interface to the trowel MCU.
Required for foot pedal calibration, pitch
sync calibration, stroke cylinder calibration,
engine fault code reading, diagnostics, ETC.
Used in calibrating one of the two blade pitch
set points as part of the synchronization
process.
Used in calibrating one of the two blade pitch
set points as part of the synchronization
process.
Used to place the engine at full speed for
component calibration and to simultaneously
disable both the stroke follower and cold
start mode.
Used to help set the foot pedal sensor. It is
also used for setting the Zero Pitch Cylinder
Stops by using the thickness of the wrench.
DeSCrIpTIoN
Includes all tools listed below.

tools needed

parT No.
32062
22882
32044
32000
32007
32020
QTY
1
1
2
2
1
1
