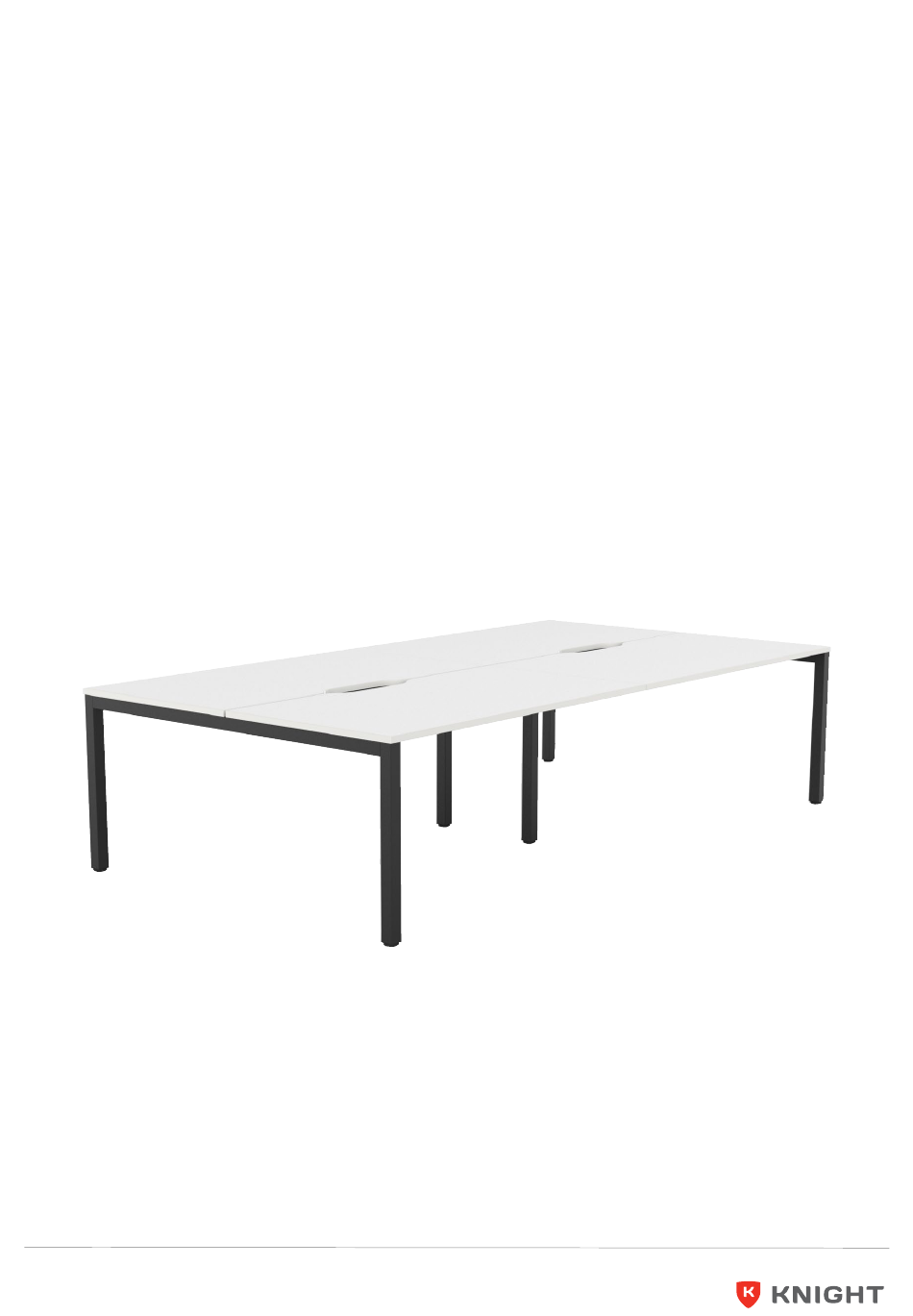

- Page 1 Cubit System Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Cubit System Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
- Page 3 Cubit System Assembly Instructions Parts 2 x Legs 2 x Rails 8 x M8x16 20 x ST5x23 4 x ST5x70 Tools Electric Driver Allen Key Sqaure knightgroup.co.nz...
- Page 4 Cubit System Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 8 x M8x16 M8x16 Allen Key knightgroup.co.nz...
- Page 5 Cubit System Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Worktop Alignment with Frame: Please note when installing the worktops, they will need to over hang at the front by 5mm to allow for the screen bracket 20 x ST5x23 4 x ST5x70 gap of 10mm between the two worktops.
- Page 6 Cubit System Page 3 Page 3 (Wire Basket Install) Assembly Instructions Assembly Instructions 6 x ST5x23 1 x Wire Basket knightgroup.co.nz...
- Page 7 ‘Cantilever Leg and Rail Set’. Active25 Screens: To add Active25 Screens to Cubit System please refer to the assembly instructions for ‘Active25 System Screens’. Assembly instructions available online at knightgroup.co.nz under resources.
