Summary of Contents for Knight Cubit Ice

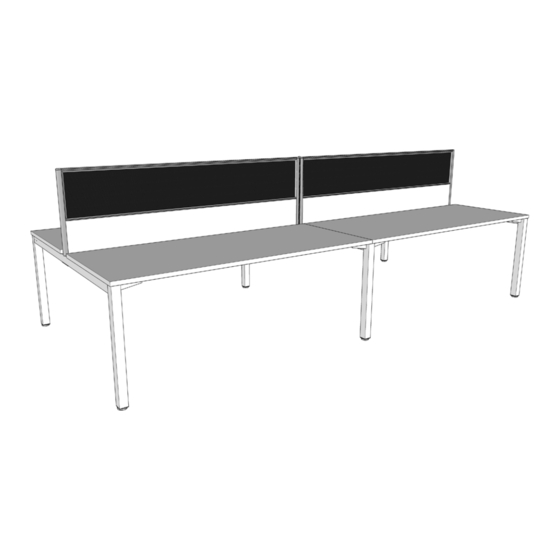

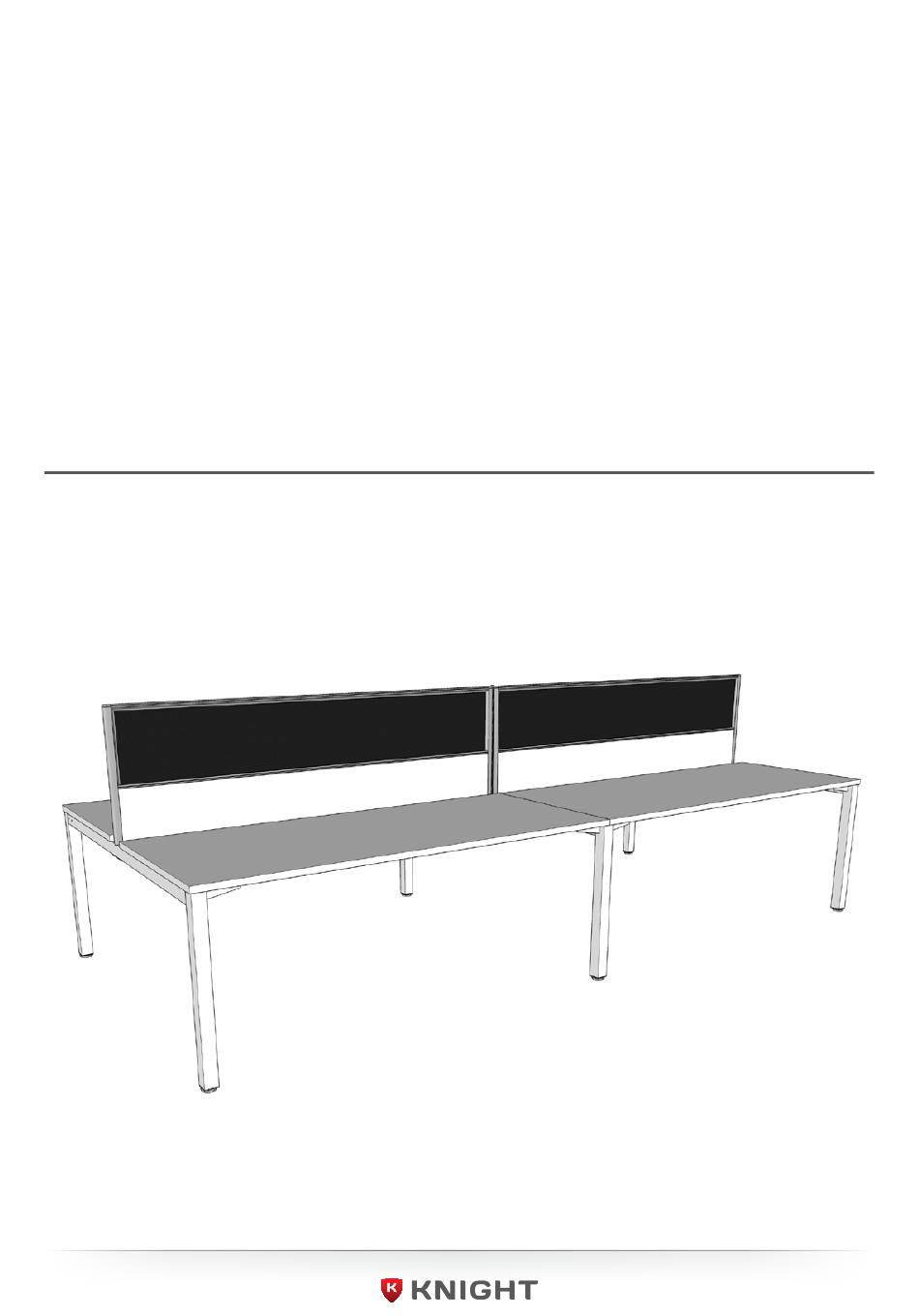

- Page 1 Cubit Ice Double Sided Desks Assembly Instructions Tools Required: Powered screwdriver...
- Page 2 Cubit Ice Double Sided Desks Page 1 Assembly Instructions IMPORTANT NOTES! Prior to installment, use or maintenance of the desk frame, any installer and any user of the desk must study this assembly and operation manual carefully, so as to gain a complete understanding of its content.
- Page 3 Cubit Ice Double Sided Desk Page 2 Assembly Instructions Step 1 Step 2 Assemble frames & rails together, loosely Assemble screen brackets to frame, loosely (1 turn from tight). (1 turn from tight). Step 3 Step 4 Fix desk top with 5mm overhang over metal Slide centre screen pole over bracket.
- Page 4 Cubit Ice Double Sided Desks Page 3 Assembly Instructions Step 5 Step 6 Attach centre screen end seal and top cap Attach screens to centre pole with top slug with soft non-marking mallet. connectors. Step 7 Step 8 Install all top caps simultaneously down...
- Page 5 Cubit Ice Double Sided Desks Page 4 Assembly Instructions Step 9 Step 10 Fully tighten all rail to frame screws, & then Attach cable trays with screws provided. screen bracket screws. Completed knightgroup.co.nz...
