Summary of Contents for Knight Ergoplan Coffee Table

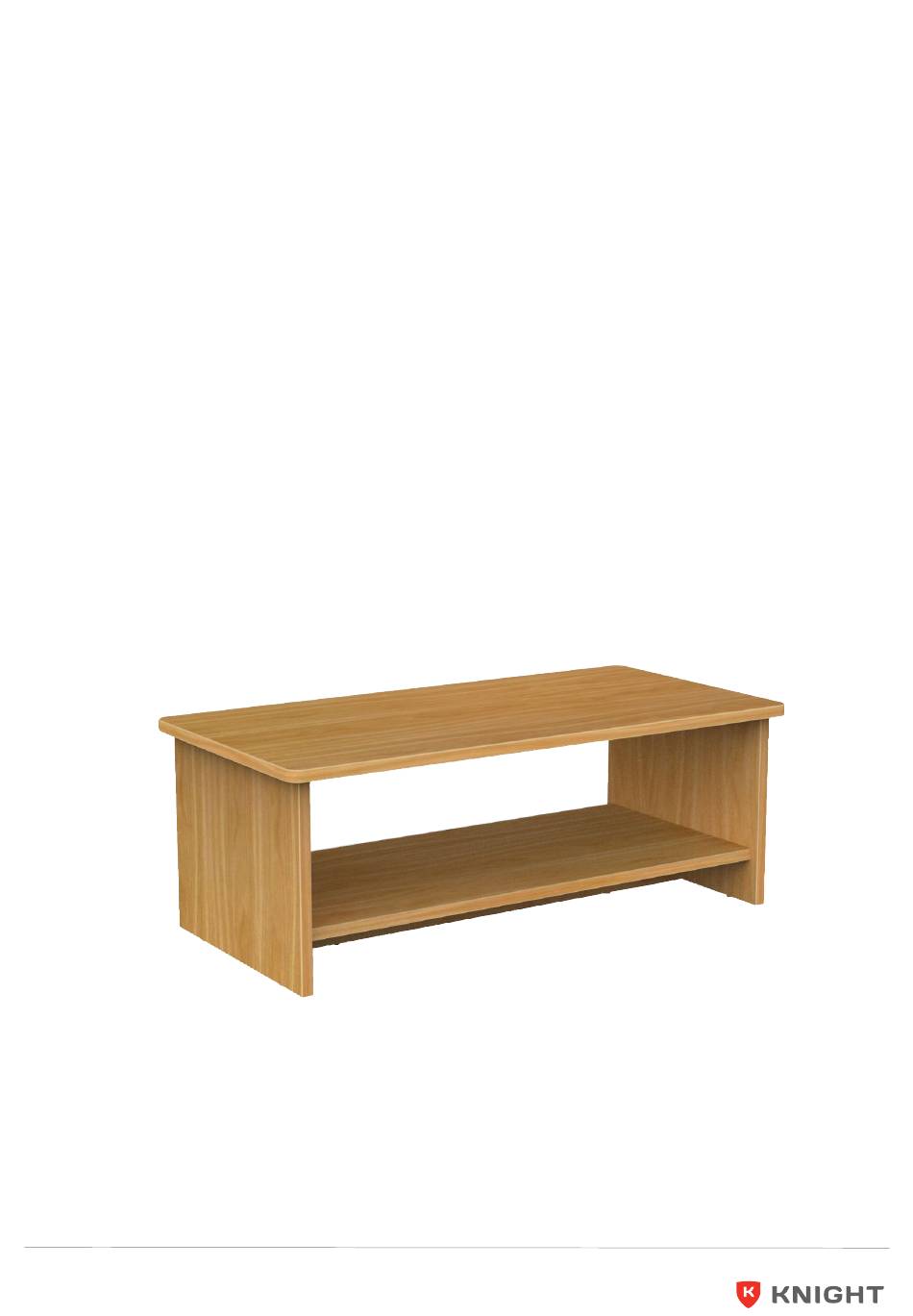

- Page 1 Ergoplan Coffee Table Assembly Instructions Tools Required: Philips Screwdriver knightgroup.co.nz...
-
Page 2: Setup And Installation
Ergoplan Coffee Table Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance. - Page 3 Ergoplan Coffee Table Assembly Instructions Parts Incorrect Correct Item Description Quantity The turning direction of attaching Top Panel Left Side Panel Right Side Panel Immovable Panel Centre Base Panel knightgroup.co.nz...
- Page 4 Ergoplan Coffee Table Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Bracket 3.5x15 Screw c1 6x35 Cam Bolt d1 8x30 Dowel Pin c2 Cam Sticker b1 Bracket s1 3.5x15 Screw (pre-installed) knightgroup.co.nz...
- Page 5 Ergoplan Coffee Table Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A, left side panel X, right side panel Z, centre base panel D and immovable panel F. lnsert cam bolts (c1) into the panel A and F.
- Page 6 Ergoplan Coffee Table Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Centre base panel D and immovable panel F assembly. Insert cam bolts (c1) on panel F into cams on panel D and tighten in a clockwise direction.
- Page 7 Ergoplan Coffee Table Page 3 Page 3 Assembly Instructions Assembly Instructions Step 3 Left side panel X, right side panel Z, centre base panel D and immovable panel F assembly. Insert cam bolts (c1) on panels X and Z into cams on panels F & D and tighten in a clockwise direction.
- Page 8 Ergoplan Coffee Table Page 4 Page 4 Assembly Instructions Assembly Instructions Step 4 Top panel A assembly. Insert cam bolts (c1) on panel A into cams on panels X & Z and tighten in a clockwise direction. Cover top of cams with cam stickers (c2).
- Page 9 Ergoplan Coffee Table Page 5 Page 5 Assembly Instructions Assembly Instructions Step 5 Connect panel A & Z and panel A & X with brackets (b1) using screws (s1). �� knightgroup.co.nz...
- Page 10 Ergoplan Coffee Table Page 6 Page 6 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
