Summary of Contents for Knight Cubit System DSD

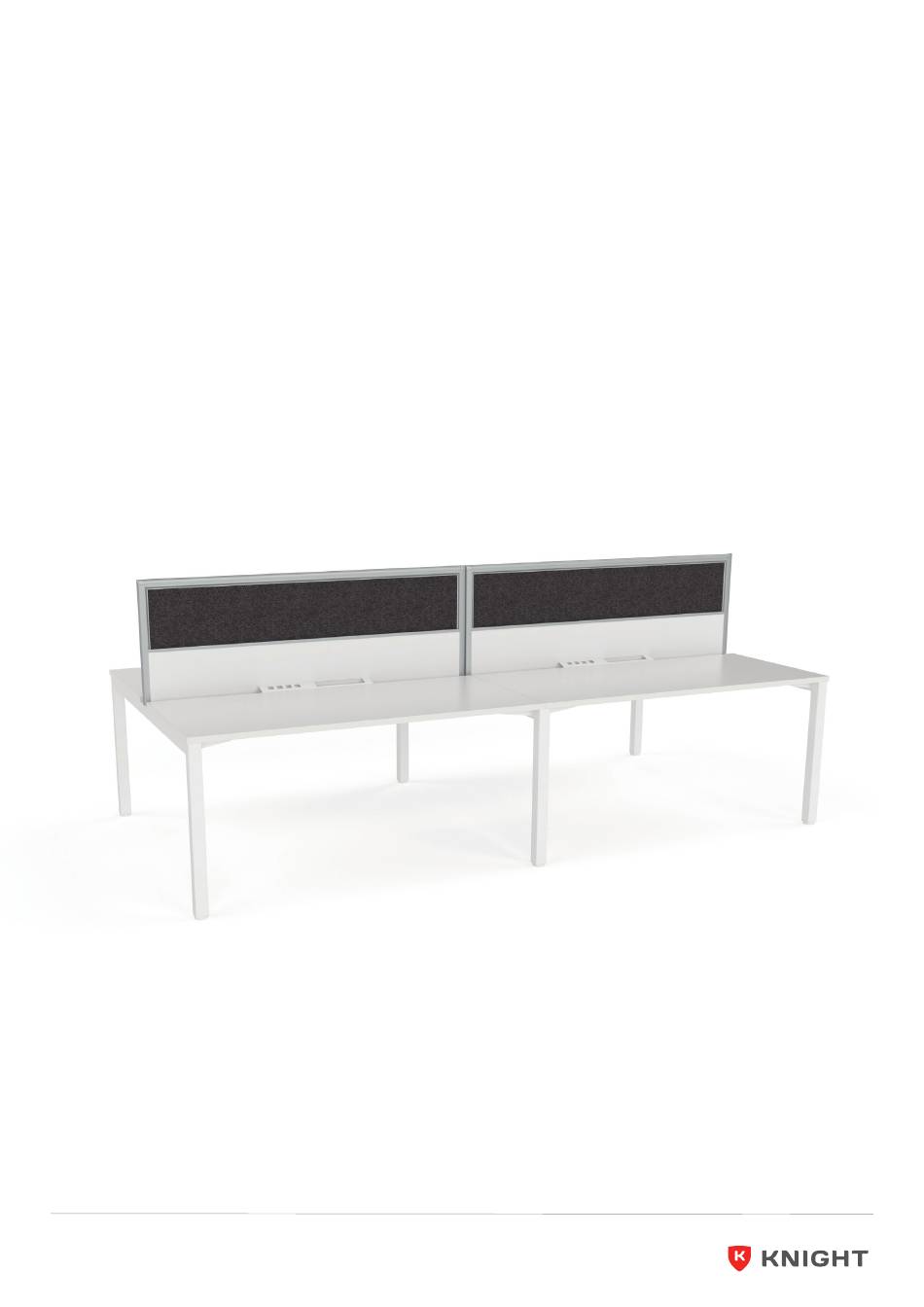

- Page 1 Cubit System DSD Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Cubit System DSD Page 1 Assembly Instructions IMPORTANT NOTES! Prior to installment, use or maintenance of the desk frame, any installer and any user of the desk must study this assembly and operation manual carefully, so as to gain a complete understanding of its content.
- Page 3 Cubit System DSD Page 2 Page 2 Assembly Instructions Assembly Instructions Step 1 Step 2 Assemble frames & rails together, loosely Assemble screen brackets to frame, loosely (1 turn from tight). (1 turn from tight). Step 3 Step 4 Fix desk top with 5mm overhang over metal frame.
- Page 4 Cubit System DSD Page 3 Page 3 Assembly Instructions Assembly Instructions Step 5 Step 6 Attach centre screen end seal and top cap with soft Attach screens to centre pole with top slug non-marking mallet. connectors. Step 7 Step 8...
- Page 5 Cubit System DSD Page 4 Page 4 Assembly Instructions Assembly Instructions Step 9 Step 10 Fully tighten all rail to frame screws, & then screen Attach cable trays with screws provided. bracket screws. Complete knightgroup.co.nz...
