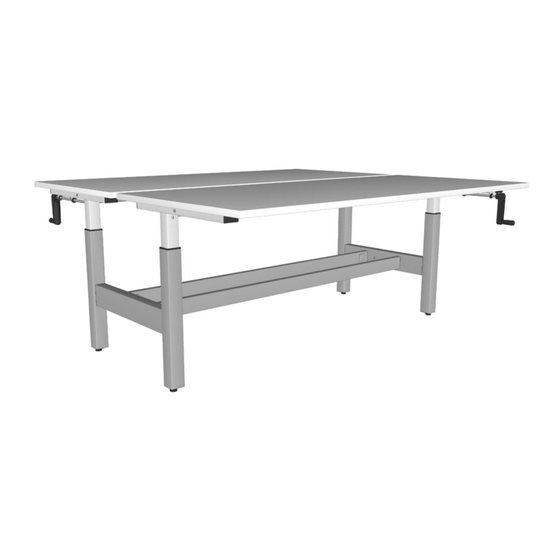

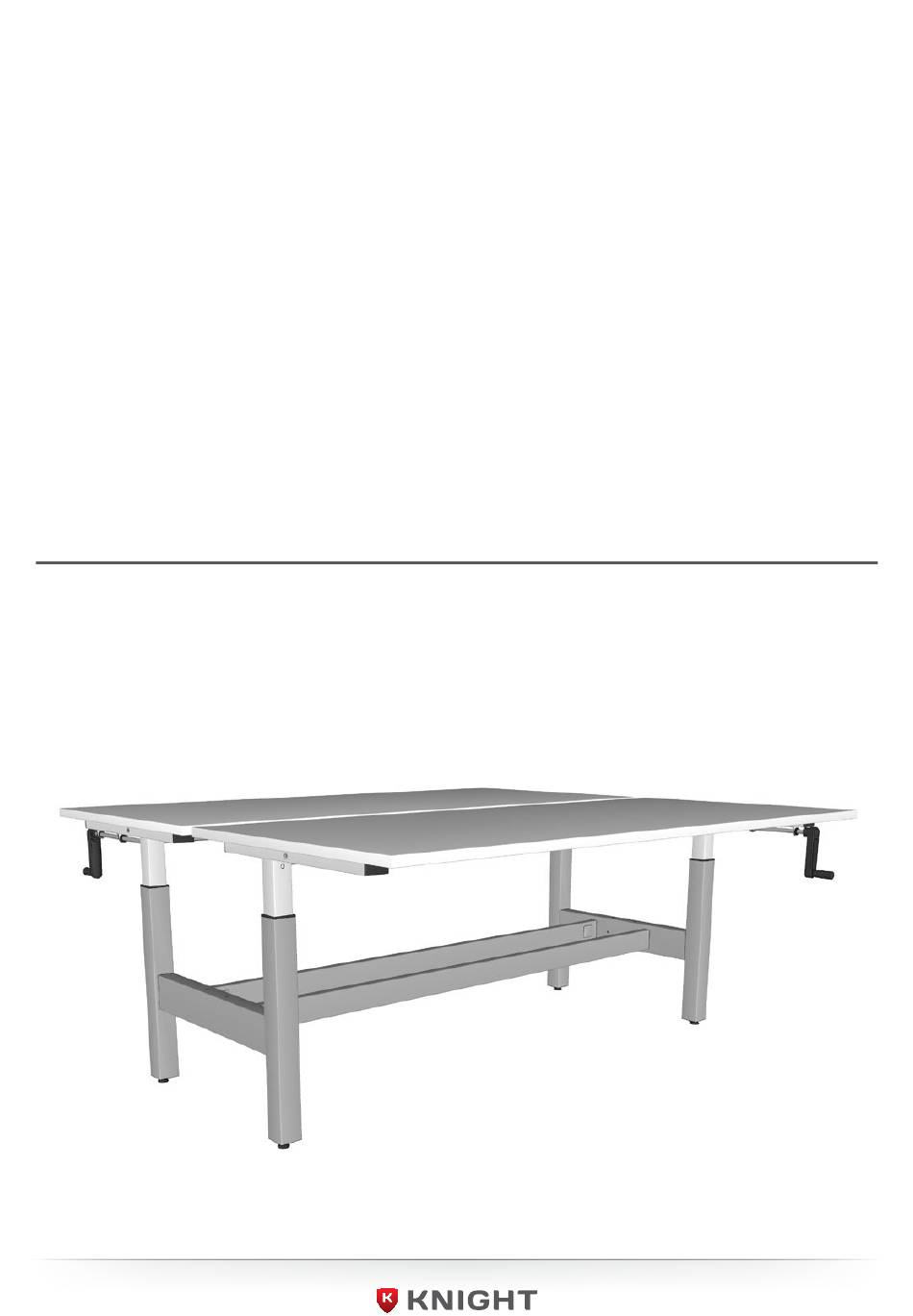

- Page 1 Cubit Shared Highrise Desk Assembly Instructions Tools Required: Powered screwdriver.
- Page 2 Cubit Shared Highrise Desk Page 2 Assembly Instructions · To prevent possible scratches or damage, assemble the desk upside down on a soft surface such as a blanket, carpet or packaging. · Attach Leg to the top assembly by using bolts, spring washer, flat washer.
- Page 3 Cubit Shared Highrise Desk Page 3 Assembly Instructions Step 1 Step 2 Attach top rails C to leg A1 and A2 through Fit adjustable feet to all legs. support arm using bolts H. Step 3 Attach cross beams E to lower mount on leg A1 and A2 using bolts I and washers J.
- Page 4 Cubit Shared Highrise Desk Page 4 Assembly Instructions Step 4 Insert long hex end of gear bar D to leg A2. Then insert short hex end of gear bar D to leg A1. Step 5 Step 5a Attach top rails C and cross beams E, with Short end of gear bar D must be fitted into leg B1 and B2.
- Page 5 Cubit Shared Highrise Desk Page 5 Assembly Instructions Step 6 Insert caps G into cross beams E, and test operation. * Install Desktops Any top supplied for this unit will be a universal top and will require the installer to correctly position & pre-drill before fixing it to the frame.
- Page 6 How to operate handle Page 6 Operation Guide Step 1 Pull handle lever, tilt handle lever upward and klick into crank handle. Step 2 Fold handle away parallel to desk top. knightgroup.co.nz...
- Page 7 Cubit Shared Highrise Worktops Assembly Instructions Tools Required: Powered screwdriver.
- Page 8 Cubit Shared Highrise Worktops Page 8 Assembly Instructions 1200/1500/1800mm x 800mm 1200mm/1500mm/1800mm 30mm 30mm *A: Ensure that the top bars are parallel to the desk top. knightgroup.co.nz...
- Page 9 Cubit Shared Highrise Worktops Page 9 Assembly Instructions 125mm 30mm 30mm 800mm 102mm 125mm 262mm 580mm knightgroup.co.nz...
