Radiographic Table Operation
Model QT-730 Radiographic Table
Operation of the Radiographic Table involves moving the Receptor Cabinet
(cassette holder) longitudinally (i.e., left or right). This is accomplished by
unlocking (pressing down) the Receptor Cabinet Lock Release Lever (see
Figure 11), attached to the Receptor Cabinet, and then moving the cabinet to
the desired position. Locking (pulling up) the Receptor Cabinet Lock Re-
lease Lever locks the cabinet in its new position.
WARNING! All movable assemblies and parts of this equipment WARNING! All movable assemblies and parts of this equipment WARNING! All movable assemblies and parts of this equipment
must be operated must be operated must be operated
RECEPTOR CABINET
LOCK RELEASE LEVER

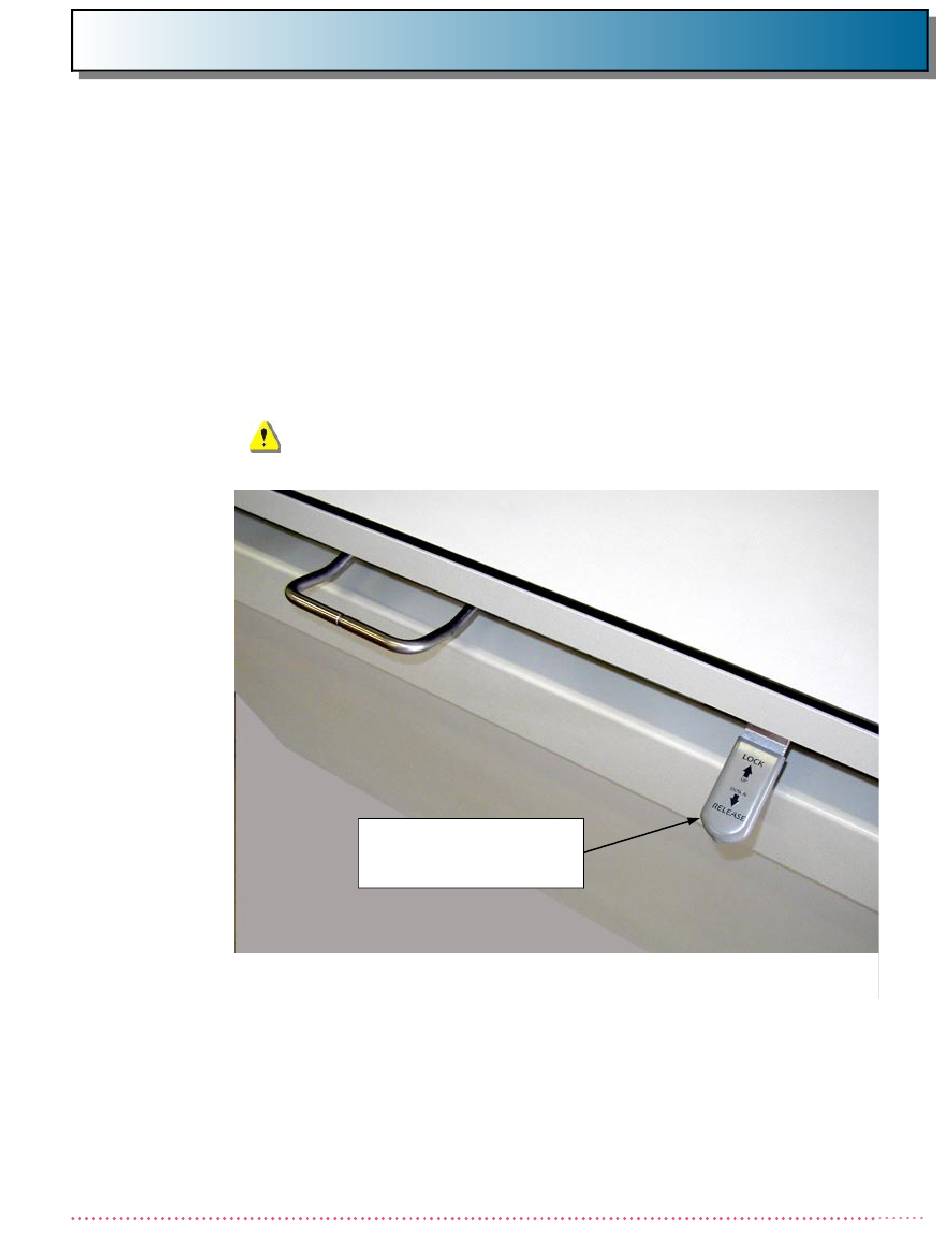

Figure 11. Receptor Cabinet Lock Release Lever
