2.

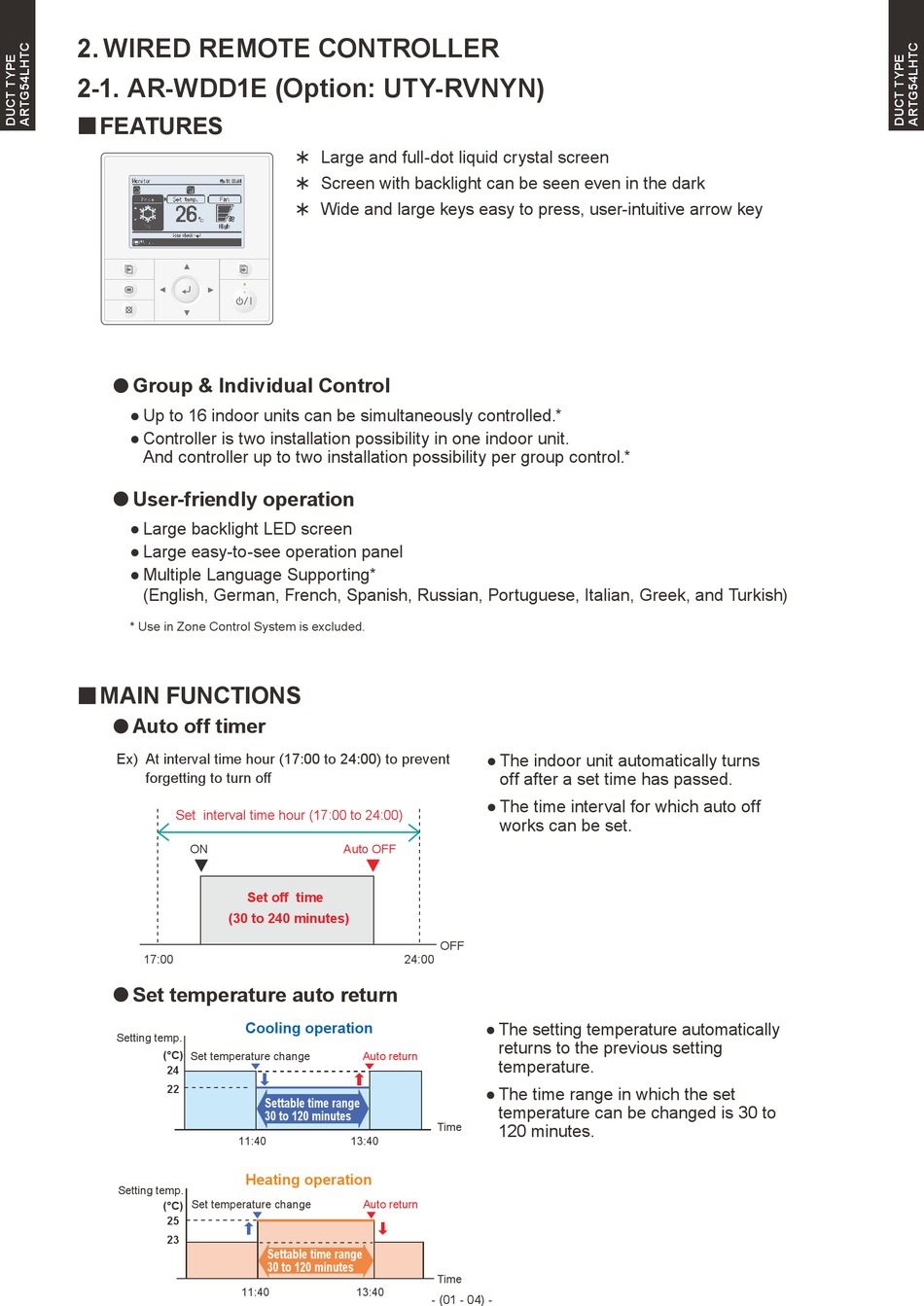

WIRED REMOTE CONTROLLER
2-1.
AR-WDD1E (Option: UTY-RVNYN)
FEATURES
„
„
Group & Individual Control
z
„
●
Up to 16 indoor units can be simultaneously controlled.*
●
Controller is two installation possibility in one indoor unit.
And controller up to two installation possibility per group control.*
User-friendly operation
z
„
●
Large backlight LED screen
●
Large easy-to-see operation panel
●
Multiple Language Supporting*
(English, German, French, Spanish, Russian, Portuguese, Italian, Greek, and Turkish)
* Use in Zone Control System is excluded.
MAIN FUNCTIONS
„
„
Auto off timer
z
„
Ex) At interval time hour (17:00 to 24:00) to prevent
forgetting to turn off
Set interval time hour (17:00 to 24:00)
ON
Set off time
(30 to 240 minutes)
17:00
Set temperature auto return
z
„
Cooling operation
Setting temp.
(°C)
Set temperature change
24
22
11:40
Heating operation
Setting temp.
Set temperature change
(°C)
25
23
11:40
Large and full-dot liquid crystal screen
¾
„
Screen with backlight can be seen even in the dark
¾
„
Wide and large keys easy to press, user-intuitive arrow key
¾
„
Auto OFF
24:00
Auto return
Settable time range
30 to 120 minutes
Time
13:40
Auto return
Settable time range
30 to 120 minutes
Time
13:40
- (01 - 04) -
●
The indoor unit automatically turns
off after a set time has passed.
●
The time interval for which auto off
works can be set.
OFF
●
The setting temperature automatically
returns to the previous setting
temperature.
●
The time range in which the set
temperature can be changed is 30 to
120 minutes.
