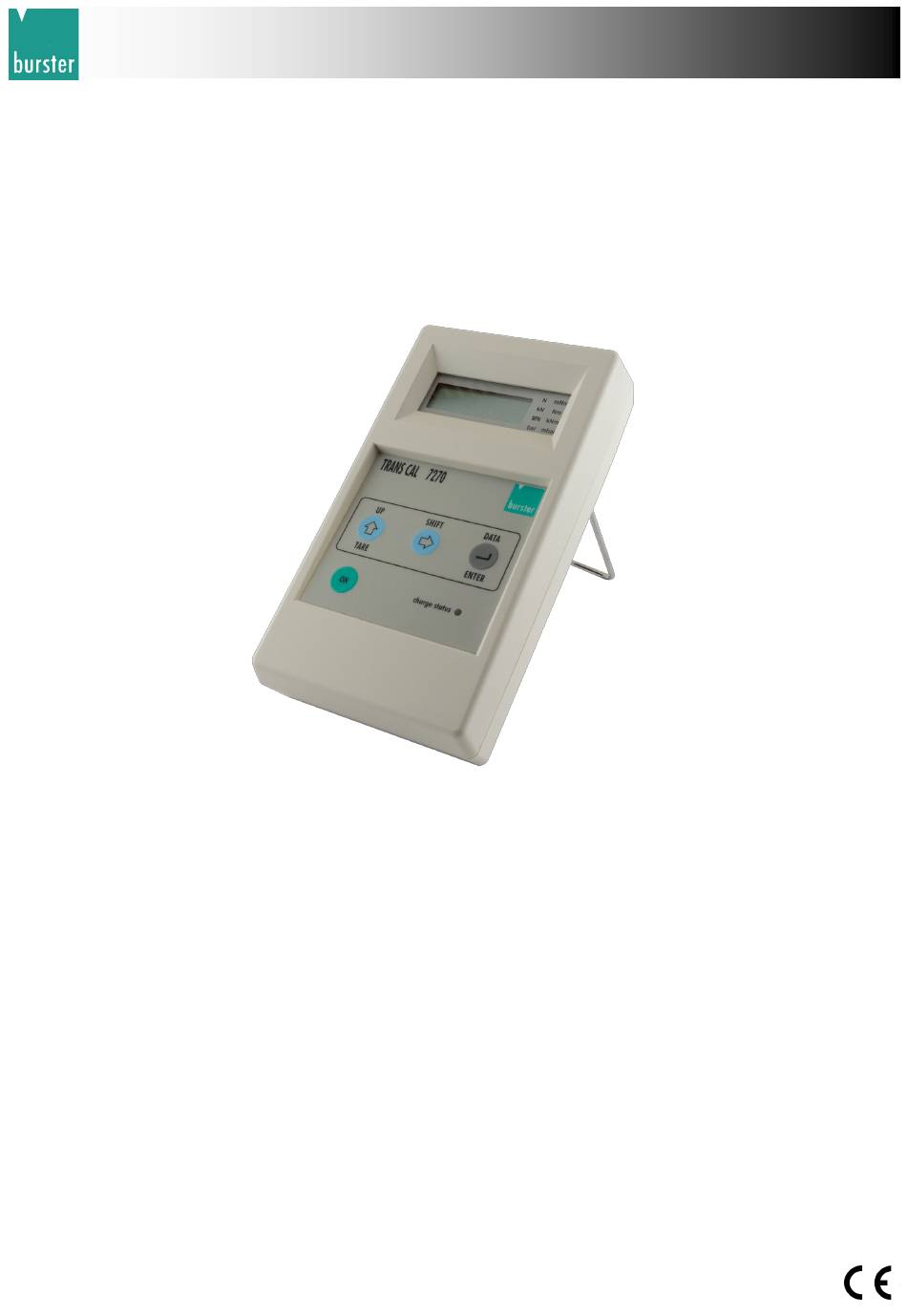

- Page 1 TRANS CAL 7270 USER MANUAL TRANS CAL 7270 PORTABLE INDICATOR FOR LOAD CELL POWERED WITH BATTERIES www.burster.com...
-
Page 2: Table Of Contents
TRANS CAL 7270 INDEX GENERAL INFORMATION Packing content ......................3 Instructions for recycling ....................3 General security considerations ..................3 Pictograms ........................3 Maintenance ........................ 4 Warranty ........................4 CE conformity ....................... 4 Environmental conditions ....................5 Personnel ........................5 Description of the instrument .................. -
Page 3: General Information
TRANS CAL 7270 GENERAL INFORMATION This manual does not constitute a contractual commitment. All the information that appears in it is subject to modifications without prior notice. Packing content With the device is also supplied: 4 X Battery 1,2V 1300 mAh NI-MH rechargeables, installed in its housing. -
Page 4: Maintenance
Disconnect the TRANS CAL 7270 from the mains socket before cleaning. Warranty TRANS CAL 7270 is guaranteed against any manufacturing defect or material failure for a period of 3 YEARS from the date of purchase. In case of observing any defect or breakdown in the normal use of the instrument during the warranty period, contact the distributor where it was purchased who will give you appropriate instructions. -
Page 5: Environmental Conditions
Supply voltage: 4 x AA battery or 12 V DC (see pag. 6 : Voltage supply) Restrictions on use: The TRANS CAL 7270 does not pose a hazard if used within its specifications and in accordance with the safety regulations The manufacturer will not accept liability for any personal injury or property damage arising from misinterpretation of measurement results. -
Page 6: Description Of The Instrument

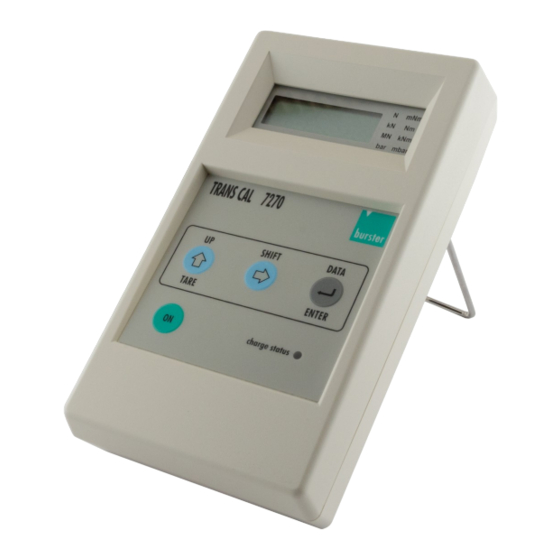

TRANS CAL 7270 Description of the instrument The model TRANS CAL 7270 is a portable digital indicator, powered by batteries or by means of a network adapter, which allows the user to configure it in order to be used for the following types of input: ... -
Page 7: Using Non-Rechargeable Batteries
Use only rechargeable NiMH batteries with a capacity of 1300 mAh The time required to charge the rechargeable batteries that can be charged by the TRANS CAL 7270 is approximately 2,5 hours (1300 mAh capacity) when using the network adapter that is supplied with the equipment. -
Page 8: Mains/Charging Operation
TRANS CAL 7270 Battery charge The TRANS CAL 7270 has a tricolor LED with the legend "charge status" to indi- cate the status of the charging process and the presence or not of the network adapter. The tricolor LED "charge status" is only active when the network adapter is connected. -
Page 9: Connections
Start-up DANGER Risk of electric shock Do not connect the TRANS CAL 7270 if it shows signs of damage caused by transport. Use the instrument only under the conditions specified in this manual. NOTICE In the battery compartment there is a sliding switch that must be positioned accor- ding to the type of battery used (rechargeable or non-rechargeable). -
Page 10: Configuration
TRANS CAL 7270 Configuration First step is to select the input range (±10mV or ±20mV). mode (5 seconds) rAnG Please note that the 7-segment display does not allow to write an “m”, and that “nU” is the alternative. ±110nU ±120nU... -
Page 11: Functions Available By Keyboard
Bridge resistance ..........120 to 1 k Range of specifications ........23 ºC ± 5 ºC INPUT SIGNAL POWER SUPPLY TRANS CAL 7270: Configuration ........Asymmetric differential Adaptader AC/DC ......100 to 240 V AC 50/60 Hz Input impedance: ............3 M... - Page 12 TRANS CAL 7270 burster präzisionsmesstechnik gmbh & co kg Tel : (+49) 07224 645 - 0 Tallstrasse 1 - 5 Fax: (+49) 07224 645—88 D - 76593 Gernsbach E-mail : info@burster.com Germany www.burster.com www.burster.com 30727619 20190530...
