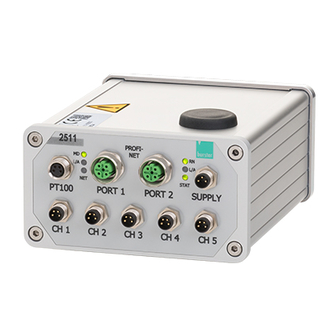

Burster PROFINET 2511 Operation Manual

Burster PROFINET 2511 Operation Manual

Battery measuring module
Hide thumbs Also See for PROFINET 2511:

Advertisement

Quick Links

© 2022
burster
präzisionsmesstechnik gmbh & co kg
Alle Rechte vorbehalten
Valid from:
02.06.2022
Applies to:
2511 VXXXX
OPERATION MANUAL
2511
PROFINET Manual
Manufacturer:
burster
präzisionsmesstechnik gmbh & co kg
Talstraße 1 - 5
D-76593 Gernsbach
Germany
Tel.: (+49) 07224 645-0
Fax.: (+49) 07224 645-88
E-Mail:info@burster.com
www.burster.com
4325-BA2511PNEN-5999-121534
Postfach 1432
D-76593 Gernsbach
Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFINET 2511 and is the answer not in the manual?

Questions and answers

Summary of Contents for Burster PROFINET 2511

  • Page 1 OPERATION MANUAL 2511 PROFINET Manual Manufacturer: © 2022 burster burster präzisionsmesstechnik gmbh & co kg präzisionsmesstechnik gmbh & co kg Alle Rechte vorbehalten Talstraße 1 - 5 Postfach 1432 D-76593 Gernsbach D-76593 Gernsbach Germany Germany Valid from: 02.06.2022 Tel.: (+49) 07224 645-0...
  • Page 2 Furthermore, burster assumes no liability for direct, indirect or incidental damages as well as consequential or other damages arising from the provision and use of the present documentation.
  • Page 3: Table Of Contents

    Table of contents Symbols used in the instruction manual..................... 5 1.1.1 Signal words ........................5 1.1.2 Pictograms .......................... 5 Symbols and precautionary statements on the instrument ..............6 Abbreviations ............................6 Introduction ..............................7 General safety instructions ......................... 7 Technical data ............................9 Supported PROFINET-functions ......................
  • Page 4 Limits (Index 30-78) .......................... 21 Temperature Measurement Setup (Index 80-85) ................23 Temperature Measurement Values (Index 90-91) ................23 Data Container (Index 100-126) ....................... 23 Order Sheet (Index 130-164) ......................23 Reserved for future use (Index 200-599) ..................25 Error Codes ............................26 of 26...
  • Page 5: Symbols Used In The Instruction Manual

    For your safety The following symbols on the 2511 and in this operation manual warn of hazards. Symbols used in the instruction manual 1.1.1 Signal words The following signal words are used in the operation manual according to the specified hazard classification. DANGER High degree of risk: indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 6: Symbols And Precautionary Statements On The Instrument

    Symbols and precautionary statements on the instrument Symbol Description Hazard warning Disconnect the power plug before opening – Follow safety instructions – Professional servicing only Warning ! To prevent Warning of electrical shock hazard electrical shock do Do not open the unit. not open device.
  • Page 7: Introduction

    Introduction General safety instructions DANGER Warning concerning installation of the device and software Installation of the device and the interface must be carried out by qualified personnel only. Qualified personnel meets the following requirements: • You are familiar with the safety designs used in automation engineering, and understand how to deal with them in your capacity as configuration engineer.
  • Page 8 NOTICE • Install the power, signal and sensor cables so as to prevent electromagnetic interference from impairing operation of the equipment. • Proper transportation, storage, installation and assembly plus careful operation and maintenance are essential for trouble-free and safe operation of the equipment. •...
  • Page 9: Technical Data

    0xF600 (Generic Device) You will find further information about PROFINET at: www.profibus.com. Model 2511 device data Bus connector RJ45 GSD file GSDML-V2.43-burster-2511-20220922.xml Electrical safety Reverse voltage protection Air clearance/leakage paths To DIN EN 61010-1:2011 Electrical isolation Between fieldbus and internal electronics...
  • Page 10: Electromagnetic Compatibility

    EN 61000-3-3:2013 Notes on CE labeling burster equipment carrying the CE mark meets the requirements of the EU directives and the harmonized European standards (EN) cited therein. The EU declarations of conformity are available to the relevant authorities as specified in the directives. A copy of the declaration of conformity is included in the relevant equipment documentation.
  • Page 11: Installation

    Please note that you can download various documents such as installation guidelines and specifications about PROFINET at PI: www.profibus.com. Connection of fieldbus lines burster devices with a PROFINET option have two RJ 45 connectors for the fieldbus connection. Meaning of LED states 4.2.1 Status LED (STAT) The Status LED is a bi-coloured LED that indicates the module’s basic status.
  • Page 12: Network Status Led (Net)

    4.2.2 Network Status LED (NET) The Network Status LED is a bi-coloured LED that indicates the module’s network status. LED State Description Comments Offline • No power No connection with IO Controller • Green Online (RUN) Connection with IO Controller established •...
  • Page 13: Configuration Of A Profinet Network

    Configuration of a PROFINET network Diagram 1: Configuration of a PROFINET network of 26...
  • Page 14: Profinet

    This includes the device description file GSDML-V2.43-burster-2511-20220922.xml (GSDML file). This GSDML file describes the physical properties of the device. The structure, contents and encoding of this device description data is standardized so that any Profinet devices can be configured using configuration tools from various manufacturers.
  • Page 15 Diagram 2: Exchange of the order of bytes caused by misinterpretation of the numeric value of 26...
  • Page 16: Profinet Data Protocol

    PROFINET data protocol PLC outputs – Transfer from controller to device Eight bytes of PLC-Out data for the 2511 are always transferred from the PROFINET Controller to the 2511. Please Note: Bits marked as ‘reserved’ should remain at 0. 6.1.1 PLC output bytes overview Address- Length...
  • Page 17: Plc Inputs - Transfer From Device To Controller

    PLC inputs – Transfer from device to controller The following data refers to the PLC input from the 2511, transferred from the 2511 to the PROFINET controller. 6.2.1 Device Measurement Channel explanation The 2511 has five measurement channels, each containing 16 bytes of data with following structure: Address- Length Description...
  • Page 18: Plc Input Bytes Overview

    6.2.2 PLC input bytes overview Address- Length Description offset (Bytes) READY Status xxxx xxx1 Bit 0: Ready-bit xxxx xx1x Bit 1: Reserved xxxx x1xx Bit 2: Reserved xxxx 1xxx Bit 3: Reserved xxx1 xxxx Bit 4: Reserved xx1x xxxx Bit 5: Reserved x1xx xxxx Bit 6: Reserved 1xxx xxxx...
  • Page 19 Measurement Channel 5 Live Counter Error Code Limit Check Result See 6.2.1 Device Measurement Reserved Channel explanation CELL Measured Temperature (real) Temperature Live Counter, incremented with each temperature measurement Reserved Table 7: PLC input bytes overview of 26...
  • Page 20: Acyclic Profinet Services

    • Complete device configuration • Transfer of component/worker/job data for logging • Retrieval of measurement values and related analytical data For further information and support for Siemens PLC integration, please contact our service department at service@burster.com. Device Info (Index 10-19) Index Size...
  • Page 21: Limits (Index 30-78)

    0x0: inactive // 0x01: active See RDYM command in interface manual UINT8 Ready-State Only relevant with activated Readymode See REDY command in interface manual UINT8 Password Protection for Display Menu Enable “0”: Disabled “1”: Enabled UINT16 Current Password “0000” … “9999” UINT8 Display Brightness “0”…...
  • Page 22 REAL Upper Limit U in [V] CELL Please make sure: Upper>Lower, Upper ≠ Lower Measurement Channel 3 UINT8 Enable Limit R 0x00: Disabled, 0x01: Enabled UINT8 Enable Limit R 0x00: Disabled, 0x01: Enabled UINT8 Enable Limit U CELL 0x00: Disabled, 0x01: Enabled REAL Lower Limit R in [mΩ]...
  • Page 23: Temperature Measurement Setup (Index 80-85)

    Temperature Measurement Setup (Index 80-85) Note: Only available with Pyrometer option. Index Size Type Access Description (Decimal) (Bytes) UINT8 Temperature Measurement Enable “0”: Disabled “1”: Enabled Pyrometer function available 0x00: no // 0x01: yes REAL Pyrometer calibration value low in [V] REAL Pyrometer calibration value high in [V] REAL...
  • Page 24 STR64 Part Serial Number 2 Channel 4 STR64 Part Serial Number 1 Channel 5 STR64 Part Serial Number 2 Channel 5 Reserved – Do not use STR64 Reserved – Do not use STR64 Reserved – Do not use STR64 Reserved – Do not use STR64 Reserved –...
  • Page 25: Reserved For Future Use (Index 200-599)

    Reserved for future use (Index 200-599) Index Size Type Access Description (Decimal) (Bytes) REAL Reserved float number 1 … …. …. …. …. REAL Reserved float number 100 Reserved integer number 1 … …. …. …. …. Reserved integer number 100 Reserved short number 2 (1 element is already used) …...
  • Page 26: Error Codes

    Error Codes The following error codes are of a Hilscher Master in response to Profinet communication with the 2511. Error number Description PNIO_S_OK 0x00000000 No error, write/read successful READ_APPL_ERROR 0xDE80A000 Data could not be read from the device. READ_ACCESS_INVALIDINDEX 0xDE80B000 This index is not specified READ_ACCESS_INVALIDSLOT_SUBSLOT 0xDE80B200...
