Quickie Access
Supplier:
This manual must be given to the rider of this
wheelchair.
Rider:
Before using this wheelchair read this entire
manual and save for future reference.
®
Quickie Access
Distribuidor:
Este manual debe ser entregado al pasajero de
esta silla de ruedas.
Pasajero:
Antes de usar esta silla de ruedas, lea este manual
en su totalidad y guárdelo para futura referencia.
Cada una de las sillas se envía con un manual de instrucciones en inglés. El manual en español y francés
está disponible en formato PDF en nuestra página en Internet: www.SunriseMedical.com. Ingrese a la
página del producto específi co para descargar el manual, o comuníquese con el proveedor autorizado
de Sunrise Medical.
®
Quickie Access
Au Fournisseur:
Ce manuel doit être remis à l'usager de ce fauteuil
roulant.
À l'Usager:
Veuillez lire tout le manuel et le conserver pour
référence ultérieure.
Chaque fauteuil est livré avec un manuel d'instructions en anglais. Les versions en espagnol et en
français sont à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre
à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un
fournisseur agréé Sunrise Medical.

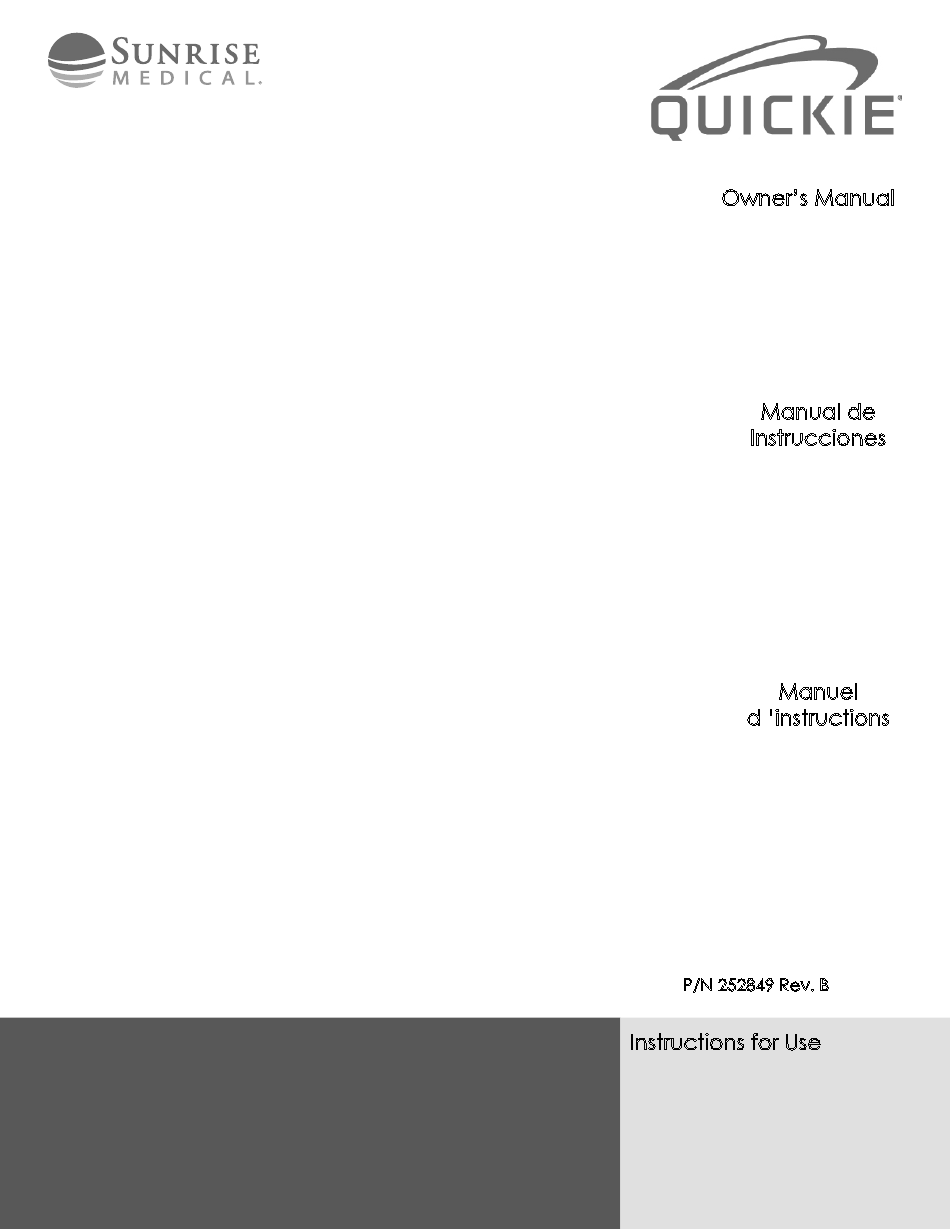

QUICKIE
Access
™
™
™
®
™
Owner's Manual
Manual de
Instrucciones
Manuel
d 'instructions
P/N 252849 Rev. B
Instructions for Use

Advertisement

Table of Contents
loading

Related Manuals for Sunrise Medical QUICKIE ACCESS EIR14

Summary of Contents for Sunrise Medical QUICKIE ACCESS EIR14

  • Page 1 à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un fournisseur agréé Sunrise Medical. P/N 252849 Rev. B...

  • Page 2: Introduction

    Authorized Sunrise Dealer. Please feel free to write or call us at the address and telephone number below: SUNRISE MEDICAL (US) LLC Customer Service Department 2842 N. Business Park Avenue...

  • Page 3: Table Of Contents

    ® ™ Quickie ACCESS II. TABLE OF CONTENTS I. INTRODUCTION ....................2 M. Modifi ed Seat Systems ................13 II. TABLE OF CONTENTS ...................3 N. Tray for Vent and Battery .................13 III. YOUR CHAIR AND ITS PARTS..............4 O. Accessory Hook ....................13 VIII. USE AND MAINTENANCE ..............14 IV.

  • Page 4: Your Chair And Its Parts

    Here you will learn about the components of your chair and options you systems). can select for safety. Consult your Sunrise Medical authorized dealer and your health care provider to help you choose the best set-up and options B. REVIEW THIS MANUAL OFTEN for safe use.

  • Page 5: General Warnings

    Unauthorized modifi cations or use of parts, or accessories not supplied or capacity provided by your manufacturer is for the combined weight of a rider approved by Sunrise Medical may change the chair structure. This will void the and items carried using on-board storage. If you do exceed the weight limit, warranty and may cause a safety hazard.

  • Page 6: Safety Checklist

    J. TERRAIN WARNING WARNING Based on ANSI/RESNA testing, Sunrise Medical recommends the use of a Before Each Use Of Your Chair: caster wheel with a minimum diameter of 5-in (127mm), if the wheelchair Ensure the chair rolls easily and that all parts work smoothly. Check for will be overcoming obstacles up to 1/2-in (12.7mm) on a regular basis.

  • Page 7: Motor Vehicle Safety

    You hold the rear of the chair to prevent a fall or tip-over. Check to ensure can request a copy from your Sunrise Medical authorized dealer, or Sunrise push handle grips will not rotate or slip off .

  • Page 8: Safety Warnings: Falls & Tip-Overs

    Consult your Sunrise Medical authorized dealer BEFORE you NEVER reach or lean if you must shift your weight sideways or rise up off modify or adjust this device. Be aware that you may need to make the seat.

  • Page 9: Escalators

    ® ™ Quickie ACCESS VI. SAFETY WARNINGS: FALLS & TIP-OVERS G. ESCALATORS WARNING NEVER use this chair on an escalator, even with an attendant. If you do, a fall or tip-over is likely. If you fail to heed these warnings damage to your chair, a fall, tip-over or loss of control may occur and cause severe injury to the rider or others.

  • Page 10: Transfers

    ® ™ Quickie ACCESS VI. SAFETY WARNINGS: FALLS & TIP-OVERS I. TRANSFERS Optimum Transfer position WARNING It is dangerous to transfer on your own. It requires good balance and agility. Be aware that there is a point during every transfer when the wheelchair seat is not below you. To avoid a fall: Work with your health care provider to learn safe transfer methods.

  • Page 11: Climbing A Curb Or Single Step

    ® ™ Quickie ACCESS VI. SAFETY WARNINGS: FALLS & TIP-OVERS K. CLIMBING A CURB OR SINGLE STEP WARNING For Attendant: follow these steps to help the rider climb a curb or single step going BACKWARD: Stay behind the chair. Continue backward until the rear wheels contact the face of the curb or step. Lift and roll the rear wheels to the top of the curb.

  • Page 12: Warnings: Components & Options

    Use of improper fasteners may cause your chair to fail. Sunrise Medical recommends the use of anti-tip tubes: ONLY use fasteners provided by a Sunrise Medical authorized dealer (or When locked in place (in the “down” position) anti-tip tubes should be ones of the same type and strength, as indicated by the markings on the BETWEEN 1 1/2 to 2 inches (38 to 51mm) off...

  • Page 13: Positioning Belts (Option)

    NEVER use positioning belts: Use of a seat system not approved by Sunrise Medical may alter the center of As a patient restraint. A restraint requires a doctor’s order. balance of this chair. This may cause the chair to tip over.

  • Page 14: Use And Maintenance

    It may require periodic safety and function checks or certain tool free adjustments that can be performed by the owner, caregiver or Sunrise Medical authorized dealer if desired. Tire Infl ation level Always use parts and/or accessories that have been recommended Wheel Locks or approved by Sunrise Medical when servicing this chair.

  • Page 15: Troubleshooting Chart

    ® ™ Quickie ACCESS VIII. USE AND MAINTENANCE E. TROUBLESHOOTING CHART Solution Ensure tire pressure is correct and equal in both rear tires and front caster tires, if pneumatic. R R R Ensure all nuts and bolts are tight. Ensure all spokes and nipples are tight on radial spoke wheels. Use Tri-Flow Lubricant (Tefl...

  • Page 16: Wheel Locks

    When fully engaged, the arm should be imbedded into the tire at least 1/8-in (3mm) to be eff ective. If you fi nd the wheel locks have slipped or are not working correctly, contact your Sunrise Medical authorized dealer for proper adjustment.

  • Page 17: Dual-Post Armrests

    ® ™ Quickie ACCESS VIII. USE AND MAINTENANCE L. DUAL-POST ARMRESTS Attachment or Removal The assembly is held securely in place when the securing lever (A) is facing outside. Pull front securing lever (A) forward to release. Insert or remove armrest. Return securing lever to locked position.

  • Page 18: Length-Adjustable Locking Flip-Up Armrests (Option)

    ® ™ Quickie ACCESS VIII. USE AND MAINTENANCE O. LENGTH-ADJUSTABLE LOCKING FLIP-UP ARMRESTS (Option) Height Adjustable Remove the hex nuts from the armrests (A) and angle adjustment plate (B) to release the armrest and plate. Release the bolts from the arm mount (C). Move mount up or down the back post in 1-inch increments for desired height, or within the arm mount holes for 1/4-inch increments.

  • Page 19: Tilt Mechanism

    Review assembly and adjustment sections to ensure the chair was properly prepared. Review the troubleshooting guide. If your problem persists, contact your Sunrise Medical authorized dealer. If you still have a problem after contacting your authorized dealer, contact Sunrise Medical customer service. See the introduction page located in the front of this User’s Manual for details on how to contact your Sunrise...

  • Page 20: Dealer Service And Adjustment

    At least once per year, this chair should have a complete inspection, safety check, and regular service made by a Sunrise Medical authorized dealer. The tool list at right is a good starting point for proper TOOLS YOU WILL NEED maintenance.

  • Page 21: Hub Lock Adjustment

    Risk of injury: Do not get your fi ngers caught in the brake mechanism. • Drum brakes must only be adjusted by a Sunrise Medical authorized dealer. • Always operate the two drum brakes simultaneously to guarantee the control of the driving direction! •...

  • Page 22: Single-Post Armrest Receiver

    ® ™ Quickie ACCESS IX. DEALER SERVICE AND ADJUSTMENT H. SINGLE-POST ARMREST RECEIVER Adjusting Armrest Receiver Fit To tighten or loosen the fi t of the armpost in the receiver: Loosen the 4 set screws (K) by using a 5/64-in Hex Key. With the armrest assembly in the receiver (L) press fi...

  • Page 23: Swing-Away Footplate Height Adjustment

    ® ™ Quickie ACCESS IX. DEALER SERVICE AND ADJUSTMENT J. SWING-AWAY FOOTPLATE HEIGHT ADJUSTMENT Height Adjustment NOTE – It is recommended that you maintain a minimum of 2.0 inches between the lowest point on the footrest and the fl oor. Loosen set screw (A) using a 3/16 inch hex key.

  • Page 24: Tilt Mechanism

    N. TILT MECHANISM The tilt mechanism is set-up by Sunrise Medical. Two cable/trigger mechanisms positively lock the chair in place from -5º to 20º or 0º to 25º of forward tilt, depending on the set-up. Refer to Section IX:W Gas Spring Adjustment.

  • Page 25: Caster/Fork Assembly

    ® ™ Quickie ACCESS IX. DEALER SERVICE AND ADJUSTMENT Q. CASTER/FORK ASSEMBLY Attachment Remove dust cover (A) from caster housing. Pry cover off using a back and forth motion. Caster assembly holds one screw (B) and one washer (immediately below the screw). Remove screw and washer.

  • Page 26: Frame Width

    ® ™ Quickie ACCESS IX. DEALER SERVICE AND ADJUSTMENT S. FRAME WIDTH Rear suspension can aff ect the stability of the wheelchair. To avoid a fall, use a spotter and/or antitips when becoming familiar with new equipment. Width Adjustable Strut Tubes (Seat Frame) Remove the hardware (K) from all three strut tubes, and front portion of Access module.

  • Page 27: Lap Belt Instructions

    (Fig. 58). WARNING The positioning belt must only be fi tted by a Sunrise Medical authorized dealer. The positioning belt should only be adjusted by a professional, or a Sunrise Medical authorized dealer. The positioning belt must be checked on a daily basis to ensure it is adjusted correctly (see step 6) and is free from any obstruction or adverse wear.

  • Page 28: Gas Spring Adjustment

    Review assembly and adjustment sections to ensure the chair was properly prepared. Review troubleshooting guide. If your problem persists, contact your Sunrise Medical authorized dealer. If you still have a problem after contacting your authorized dealer, contact Sunrise Medical customer service. See the introduction page for details on how to contact your Sunrise Medical authorized dealer or Sunrise Medical customer service.

  • Page 29: Sunrise Limited Warranty

    G. ADDITIONAL WARRANTY INFORMATION authorized dealer. Except for express warranties made herein, all other For goods provided by Sunrise Medical Pty Ltd in Australia, our goods come warranties including implied warranties of merchantability and warranties of with a guarantee by Sunrise that cannot be excluded under the Australian fi...
  • Page 30 NOTES 252973 Rev. A...
  • Page 31 NOTES 252973 Rev. A...
  • Page 32 Sunrise Medical • 2842 N. Business Park Ave. • Fresno, CA 93727 • USA In Canada (800) 263-3390 Customer Service: 800.333.4000 ©2021 Sunrise Medical (US) LLC www.SunriseMedical.com 03.2021 P/N 252849 Rev. B...
