This manual must be given to the user of this device.
User:
Before using this device read this entire manual and save
for future reference.
Distribuidor: Este manual debe entregarse al usuario de este dispositi-
vo.
Usuario:
Antes de usar este dispositivo, lea este manual completo
y guárdelo para referencia futura.
Cada una de las sillas se envía con un manual de instrucciones en inglés. El manual en español y francés
está disponible en formato PDF en nuestra página en Internet: www.SunriseMedical.com. Ingrese a la
página del producto especíÞ co para descargar el manual, o comuníquese con el proveedor autorizado
de Sunrise Medical.
Au Fournisseur:
Ce manuel doit être remis à l'utilisateur de ce dis-
positif.
Utilisateur:
Avant d'utiliser cet appareil, lisez l'intégralité de ce
manuel et enregistrez pour référence future.
Chaque fauteuil est livré avec un manuel d'instructions en anglais. Les versions en espagnol et en
français sont à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre
à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un
fournisseur agréé Sunrise Medical.

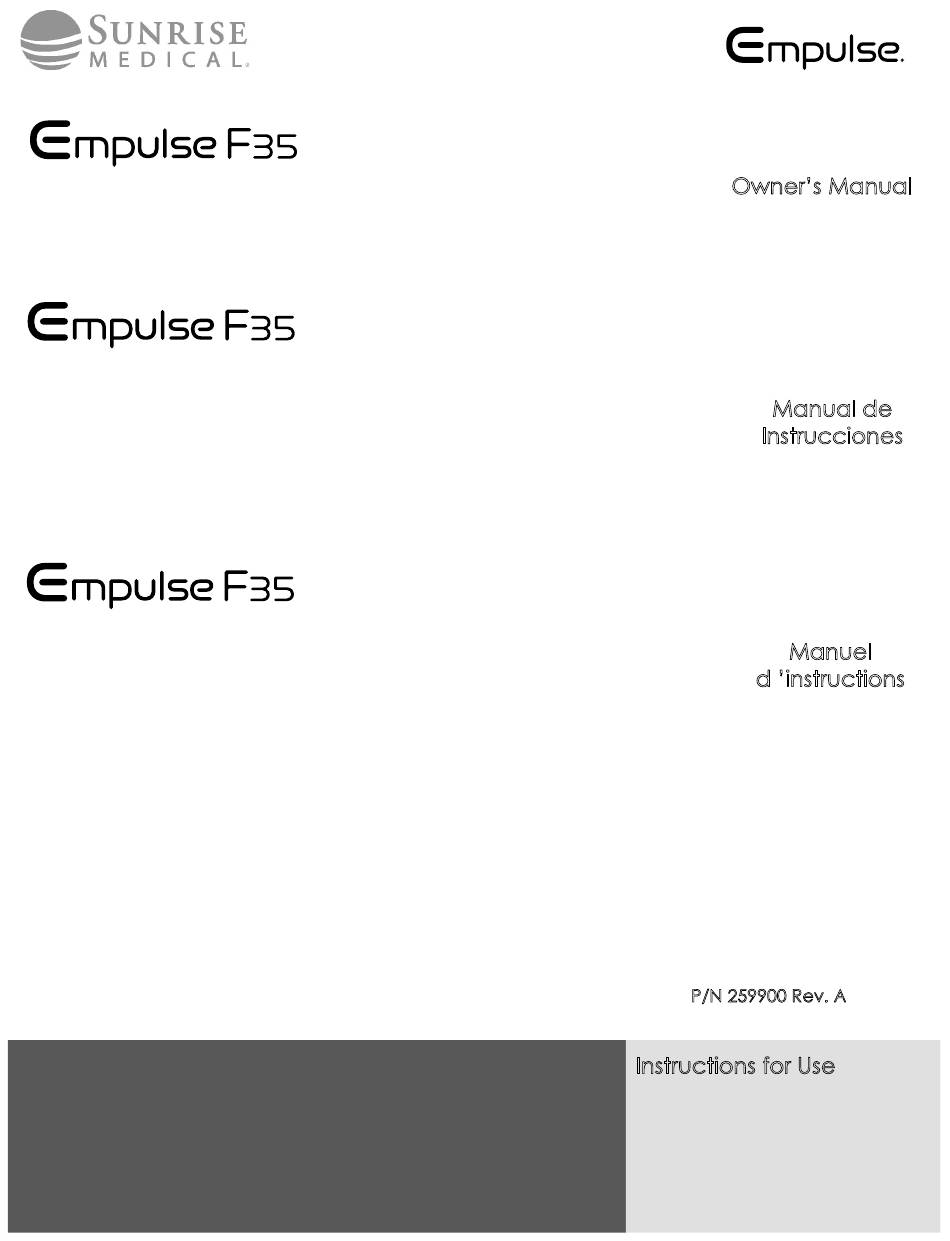

EMPULSE F35
General Manual
®
™
®
™
®
™
®
®
Owner's Manual
Manual de
Instrucciones
Manuel
d 'instructions
P/N 259900 Rev. A
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Empulse F35 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunrise Medical Empulse F35

Summary of Contents for Sunrise Medical Empulse F35

  • Page 1 à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un fournisseur agréé Sunrise Medical. P/N 259900 Rev. A...

  • Page 2: Introduction

    I. INTRODUCTION SUNRISE MEDICAL LISTENS Thank you for choosing an Empulse F35. We want to hear your questions or com- ments about this manual, the safety and reliability of your device, and the service you receive from your Sunrise dealer. Please feel free to write or call us at the...

  • Page 3: Table Of Contents

    Please contact a Sunrise Medical authorized dealer if you have any questions regarding the use, maintenance, or safety of the device. In case there is no authorized dealer in your area or you have any questions, contact Sunrise Medical either in writing or by telephone.

  • Page 4: Safety

    Fig. 2.2 SAMPLE Replace or repair all illegible or damaged signs, symbols, and instructions immediately. Please contact your Sunrise Medical authorized dealer for assistance. Max User Weight Fig. 2.1: Warning – Danger of nger entrapment (pinch point).

  • Page 5: Safety: Electromagnetic Radiation

    There are a number of sources of intense EMI in your daily environment. V/m is: Empulse F35 mounted to a Manual Wheelchair using lithium ion Some of these are obvious and easy to avoid. Others are not, and you may batteries.

  • Page 6: Indications For Use

    Indications for use Fig. 3.1 The Empulse F35 is a powered pulling device, which is attached to a wheelchair, to support the mobility and integration of the wheelchair user in daily life. It is designed for personal use indoors or outdoors.

  • Page 7: Area Of Application: Attendants

    WARNING! WARNING! Improper use of the Empulse F35 or the wheelchair it is attached to, depending If you are under the in uence of medicines that can have an eff ect on your on surface, weather, and traffi c conditions can present a potential injury and cause ability to operate the device, you are not permitted to use the device.

  • Page 8: Area Of Application: User

    When driving on pedestrian areas, observe the maximum permitted speed (walking speed). The addition of the Empulse F35 to one’s wheelchair may cause it to feel diff erent. Always follow the road traffi c regulations when driving on public roads and Take the time to learn the feel of the device before you begin riding.

  • Page 9: Area Of Application: The User Environment

    Dry the device as soon as you can if it gets wet, or if you use water to clean If you order a version which has a speed of over 6 kph (3.7 mph), please con rm this to Sunrise Medical with your signature, that you have understood this infor- mation and that we should deliver this version.

  • Page 10: Setting Up The Device

    CAUTION! The pull device may only be used with the delivered docking system and the appropriate frame clamps for your wheelchair. The pull device must be handed over ready to use from Sunrise Medical or a Sunrise Medical authorized dealer.

  • Page 11: Fitting The Pull Device

    3/4-in (19 mm) must be maintained. If this is not the case with a correct mounting position, the tubes of the intermediate subframe must be short- ened with the aid of a pipe cutter, so that this gap can be maintained. Contact Sunrise Medical technical support for guidance. 259900 Rev. A...
  • Page 12 Empulse F35™ General Manual ® 4.0 SETTING UP THE DEVICE Place the caster wheels on the spacers (included in the delivery) to ensure that there is a gap between caster wheels and oor of 1 5/8-in (41mm) (Fig. 4.6). Mount the central bracket, make sure that the central bracket is centered between the front frame tubes and the mark of the small bracket is oriented upwards (Fig.
  • Page 13 Empulse F35™ General Manual ® 4.0 SETTING UP THE DEVICE Dock the F35 to the wheelchair and measure the angle of the tube (80° is Fig. 4.12 the optimal angle) (Fig. 4.12). When the angle of the F35 is too low, move the docking bracket up- wards by undoing the screws, moving the bracket up, and retightening the screws (Fig.

  • Page 14: Docking And De-Docking Of The Pull Device

    5.0 DOCKING AND DE-DOCKING Empulse F35™ General Manual ® OF THE PULL DEVICE BY THE USER DANGER! Fig. 5.1 Always make sure that the device is switched off before docking and de-docking. Ensure the wheelchair is fully connected with the pull device before use. As with all moving parts, there is a risk that ngers and / or clothing could become trapped.

  • Page 15: Docking

    If the locks cannot be closed properly, or you have the feeling that they are not properly closed, please contact your Sunrise Medical authorized dealer for this to be checked. Under no circumstances should you set off ; there is a risk of accident and injury.

  • Page 16: Operation

    The drum brake is not self-adjusting and needs to be re-adjusted when the brake pads wear. Please contact your Sunrise Medical authorized dealer to carry out this work. Be aware that the condition of the ground surface can signi cantly aff ect braking effi...

  • Page 17: Controlling The Speed (Throttle)

    Empulse F35™ General Manual ® 6.0 OPERATION 6.4 Controlling the speed (throttle) 6.6 Cruise control • Using the throttle (Fig. 6.3 - A) you can control the speed with the thumb By using the pushbutton (Fig. 6.4 - B) which is integrated into the housing of your right hand.

  • Page 18: Functions Of The Display

    Faults can arise once sporadically. Each time the device is restarted, the fault code is deleted. If the fault should arise again, we recommend that you make a note of the fault code and contact your Sunrise Medical authorized dealer. DANGER! Only carry out setting work when the device is stationary and never when driving.

  • Page 19: Error Description

    Check if the E-brake is not in the pressed state or replace the E-brake to see Display/ E-brake fault if the fault is cleared. If it cannot be cleared, contact Sunrise Medical technical Throttle support. Check that the Manual Brake is not in the locked state, and check the cable for kinks.
  • Page 20 Empulse F35™ General Manual ® 6.0 OPERATION 6.7.4 Settings PIN check: NOTE: In case the L – R – L – R Password is not working you can nd the 16 You can open the settings menu in order to carry out basic settings by possible Password combinations below: simultaneously pressing the left and right button quickly.

  • Page 21: Battery And Charger

    The battery delivered with the product must only be used to drive the Empulse WARNING! F35 from Sunrise Medical. No other components may be connected to it. Protect the battery immediately upon separating from the battery charger. Never allow any moisture or foreign particles (e.g. metal fragments, small This operating manual only describes the use of the above-mentioned battery nails, lings, or other conductive metals) to get into the battery.

  • Page 22: Waking Up The Battery

    100%. If your battery is defective, take it personally to your Sunrise Medical au- thorized dealer as shipping lithium-ion batteries by post or other carriers is subject to strict rules and regulations. Once again, we recommend that you contact your Sunrise Medical authorized dealer.

  • Page 23: Transportation And Security

    The combined unit itself (without user) must be tied down during The battery of the Empulse F35 contains lithium-ion cells. For shipping or transportation and secured against slipping.

  • Page 24: Fitting And Repairing The Tire

    * Daily = Before each use of the device. If fasteners are found to be loose a Sunrise Medical authorized dealer should tighten the fastener to the torque setting per size detailed below, unless stated otherwise in all appropriate owner’s manuals or instruction sheets (if applicable).

  • Page 25: Cleaning

    10.0 TROUBLESHOOTING 10.1 Troubleshooting If the problem has not been resolved: Contact your Sunrise Medical authorized dealer. If the device is not working as it should, check the following points: Check whether the battery is charged. Make sure that all the mounting hardware is properly installed and tightened and that the wheelchair casters are off...

  • Page 26: Sunrise Limited Warranty

    For goods provided by Sunrise Medical Pty Ltd in Australia, our goods come FOR SIX (6) MONTHS - We warrant batteries and chargers for six with a guarantee by Sunrise Medical that cannot be excluded under the months from the date of rst consumer purchase.

  • Page 27: Technical Specifications

    Empulse F35™ General Manual ® 12.0 TECHNICAL SPECIFICATIONS GENERAL DATA BATTERY CHARGER Operating Voltage 36 Volt Type Off -Board Charger Range of action* up to 15 km (9.3 miles)** Plug NEMA 1-15 ungrounded (Type A) Maximum speed options 15 kph (9.3 mph) Compatible batteries Only applicable for Lithium-Ion batter- ies.
  • Page 28 12002 Volunteer Blvd. www.sunrisemedical.fr Mount Juliet, TN 37122, USA (800) 333-4000 Sunrise Medical Canada Inc. (800) 300-7502 1000 Creditstone Rd., Unit #2 www.SunriseMedical.com Concord, ON, L4K 4P8 Canada Phone: 1-800-263-3390 Fax: 1-800-561-5834 www.SunriseMedical.ca ©2025 Sunrise Medical (US) LLC P/N 259900 Rev. A...
