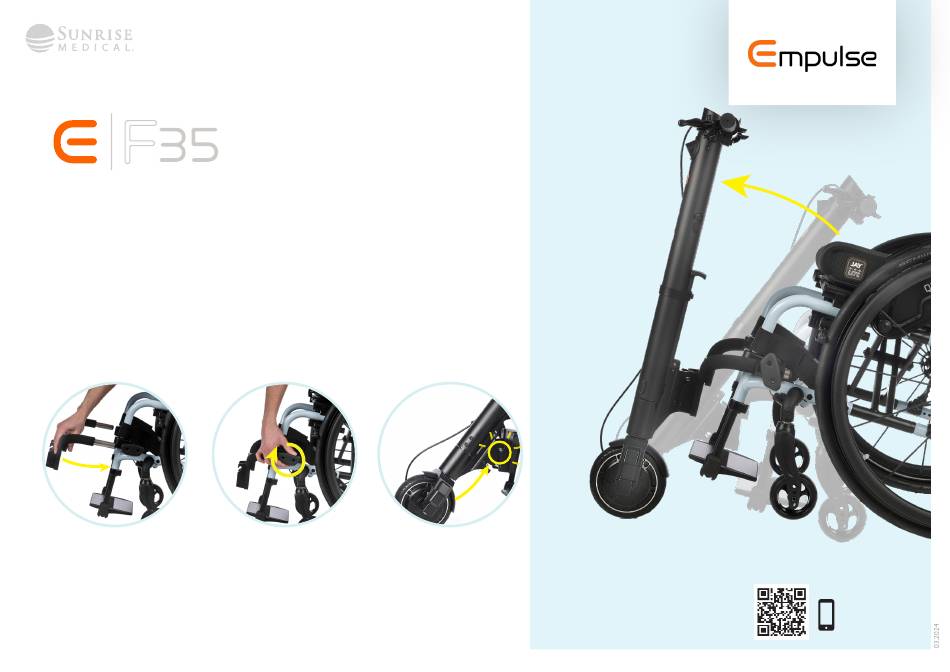

STEP-BY-STEP DOCKING
•
Always make sure that the device is switched off before docking and
undocking
•
Always apply the wheelchair brakes
•
Ensure the wheelchair is fully connected with the pull device before use
•
As with all moving parts, there is a risk that fingers and / or clothing
could become trapped
•
Be extra careful when operating the docking clamps
1
GRAY = PANTONE Cool Gray 2 OR 20% Black
Insert the subframe into the
docking clamps.
2
3
Now rotate the tommy screws
of the clamps in a clockwise
direction until they are hand
tight and the intermediate
sub-frame is securely held in
the clamps.
4
GRAY = 90% Black (Letter & Line) and 80% Black (numbers)
Take the pull device and insert
the docking pin ends into the
central bracket of the sub-
frame.
Push the handlebar forwards/
upwards until the locking bolt
automatically clicks into place.
Only release the wheelchair
brakes once device is locked
in place.
