3.4.1. Establishing a Connection
The Vision camera is set to a Local Link IP address: 169.254.0.206. This enables connection to a
Windows PC set to default Ethernet setting - DHCP "Obtain IP address automatically" without
TM
the need to configure the IP settings.
To check the Ethernet settings on a Windows
Windows Search Bar > Network Connections
Right click on the Ethernet adapter to be checked and select:
Properties > Internet Protocol Version 4 (TCP/IPv4)
Select the Obtain the IP address automatically option button if not already set as shown
in Figure 3.1 and click OK to close the Network Properties dialogue boxes.
3.4.2. Downloading Images
Data from the ZEB Vision is stored on the internal data drive in the camera. Images are stored in
the format - nnn_F_xxxxxx.jpg and nnn_R_xxxxxx.jpg, where:
nnn is the image number.
F or R is the lens type (either front or rear lens).
xxxxxx is the camera timestamp (PTS).
Open an instance of Windows
© 2022 GeoSLAM Ltd
TM PC go to:

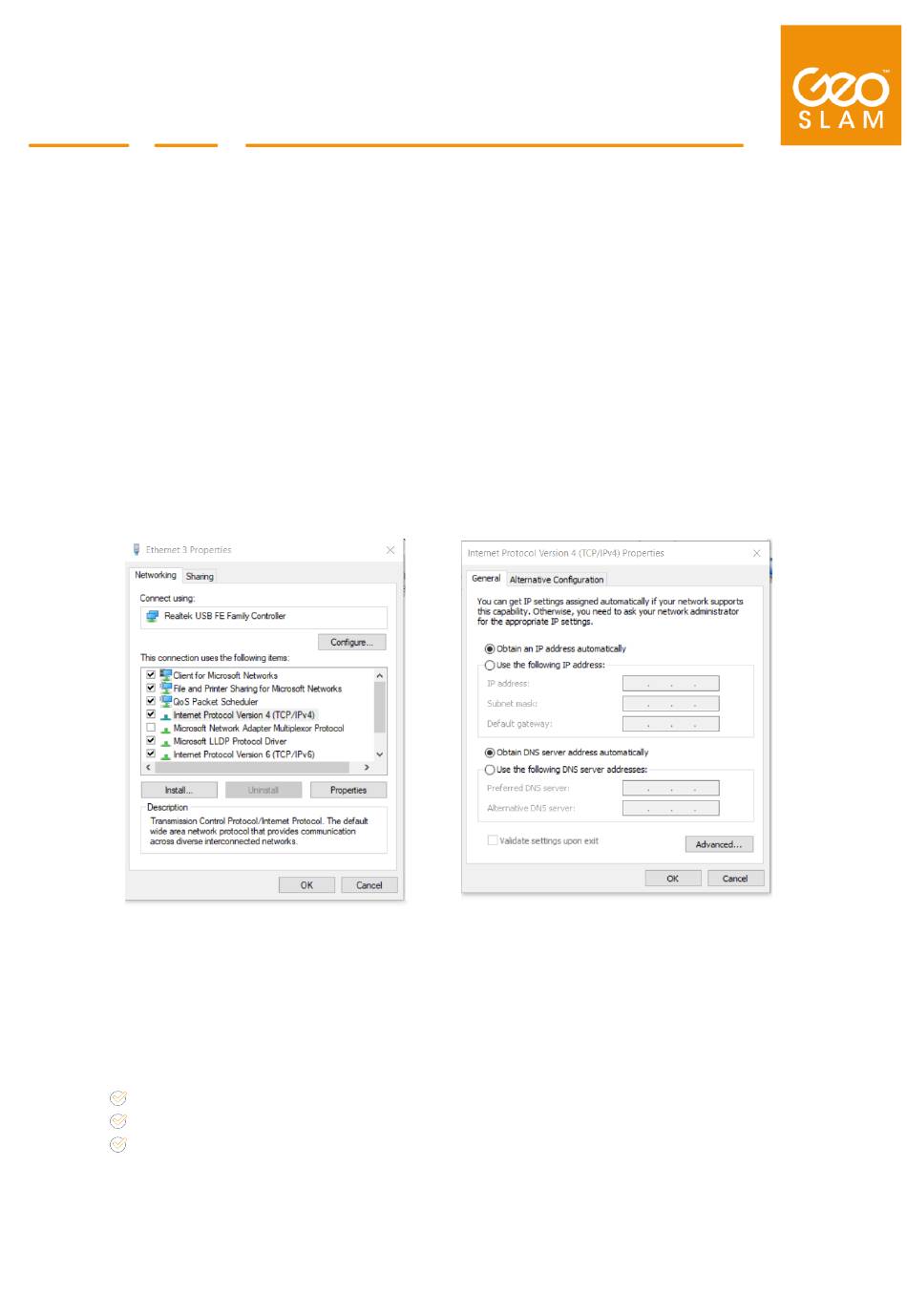

Figure 3-1. Network adapter settings.
File Explorer and enter the address ftp://169.254.0.206/
