3. Data Capture

If you are retrofitting a ZEB Vision camera to an existing ZEB Horizon system, please ensure you

have the latest version of the scan head firmware installed. Instructions for this process can be

found in Appendix A.

For reference, instructions on how to update the Vision camera firmware can be found in Appendix

After unpacking your ZEB Vision kit, please follow these simple steps to ensure the system is set

up correctly for use.

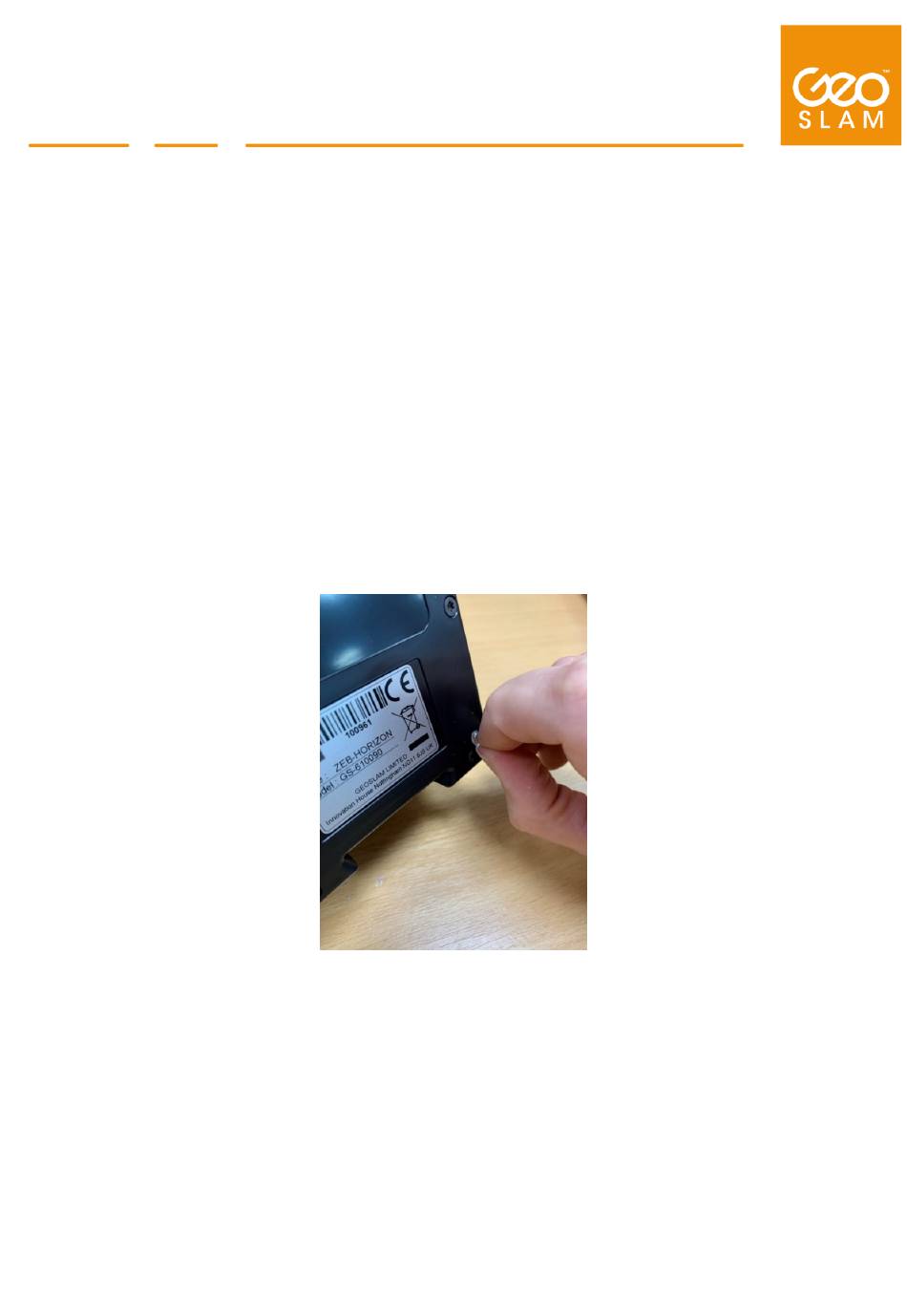

Step 1. Remove the four rubber dampers from the back of the ZEB Horizon scanner.

Step 2. Attach the ZEB Vision camera to the back of the ZEB Horizon scanner using the captive

screws provided in the camera casing. The 3mm HEX key found in the screw accessory

kit can be used to tighten these screws and secure the camera in place.

Page 4

ZEB Vision User Guide
