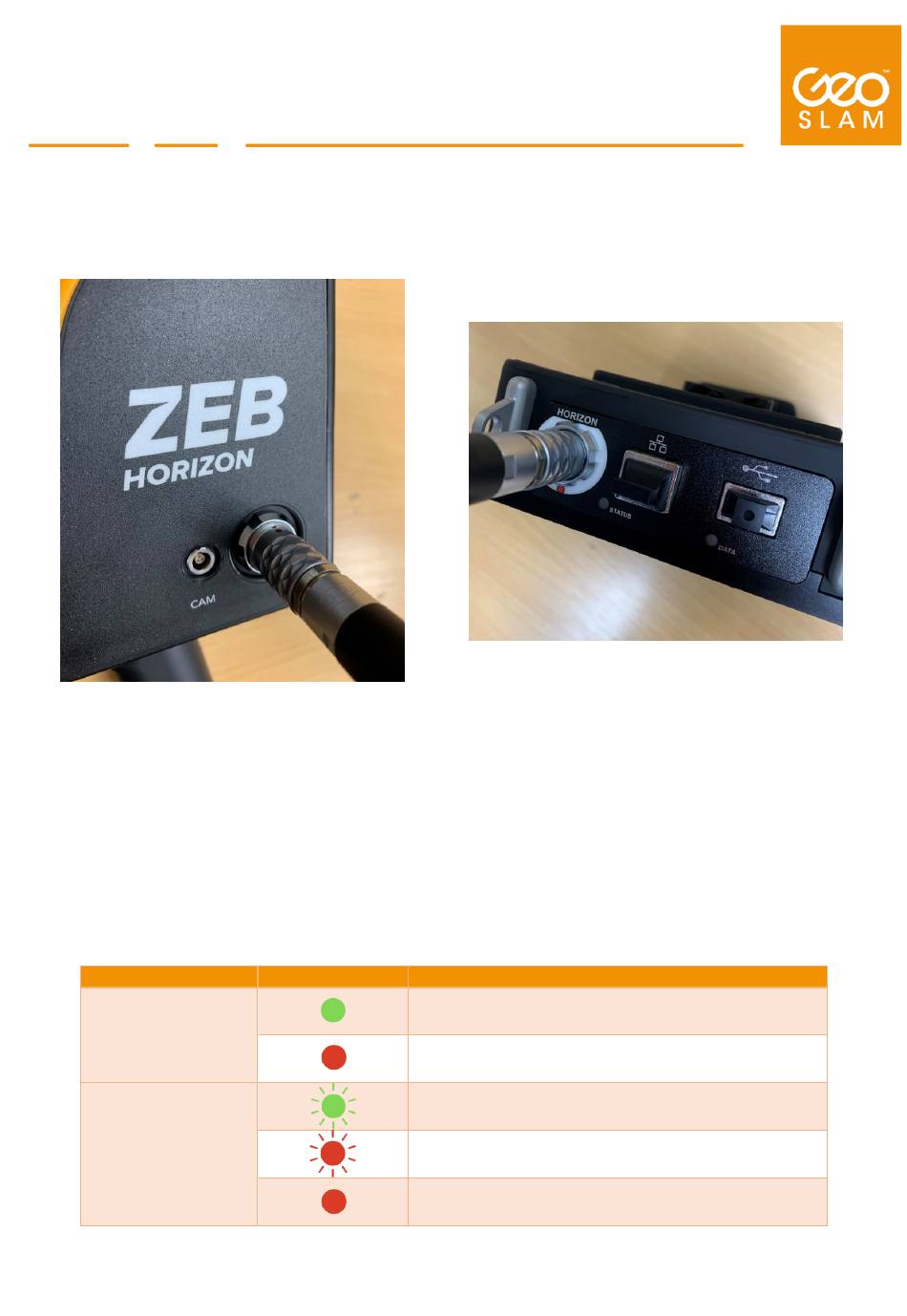

Step 4. Insert one end of the main cable into the port on the side of the ZEB Horizon scanner
head. Insert the other end of the cable into the port on the ZEB Horizon datalogger. Ensure
the red dots are aligned before inserting the cables into the ports.

3.3. Collecting Data

The ZEB Vision camera is powered by the ZEB Horizon system. Ensure the camera is fully
connected before powering on the Horizon system, otherwise it will not be detected and no images
will be captured. Once the ZEB Horizon initialisation process has been completed successfully,
images will begin to be taken.
The ZEB Vision camera provides status feedback during capture using the two LEDs on the
camera, please see the LED table below.
Camera Status
Start Up
Capture
© 2022 GeoSLAM Ltd
LED
ZEB Vision connected successfully.
ZEB Vision not connected successfully.
Flashing at 1 second intervals indicates images
are stored.
Memory Low (Approximately 10min capture time
remaining.
Error with Capture.
Page 6
Description
ZEB Vision User Guide
