matev GmbH
Nürnberger Str. 50
90579 Langenzenn
T +49 (0) 9101 9087 -0
F +49 (0) 9101 9087 -20
info@matev.eu
www.matev.eu

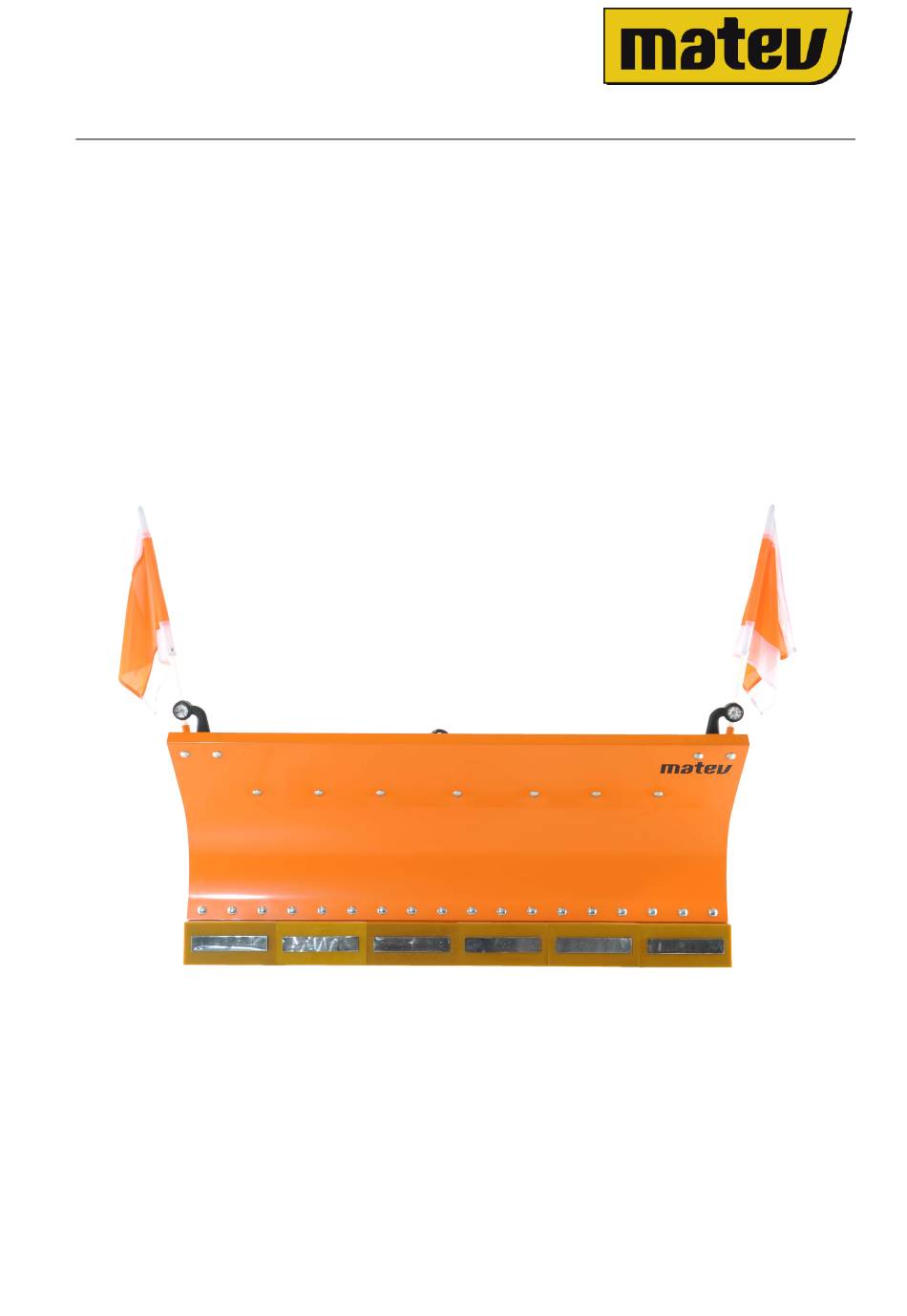

Original Operating Manual
SRM-SF 140/ 160/ 180/ 200/ 220
Snow blade
Version
02/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRM-SF 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for matev SRM-SF 140

  • Page 1 GmbH Nürnberger Str. 50 90579 Langenzenn T +49 (0) 9101 9087 -0 F +49 (0) 9101 9087 -20 info@matev.eu www.matev.eu Original Operating Manual SRM-SF 140/ 160/ 180/ 200/ 220 Snow blade Version 02/2014...
  • Page 2: Table Of Contents

    Contents Table of contents About this operating manual ..................3 Safety ......................... 4 Intended use ....................... 4 Qualifications of personnel ..................4 General safety instructions ..................4 Special safety notices ....................4 Installation ......................... 6 Attaching the snow blade on the tractor ..............6 Adjusting the slide runners or casters .................
  • Page 3: About This Operating Manual

    Safety About this operating manual Dear customer! Dear customer! Thank you for purchasing this implement, we appreciate your trust. Prior to using this implement for the first time, read this operating manual carefully and conscientiously all the way through. Keep this operating manual where it is easily accessible. This will enable you to refer to important information and handling instructions as needed.
  • Page 4: Safety

    Safety Safety Guidelines and instructions with which you must comply, are summarized in this section. Personnel who mount, operate and maintain this implement, must have read and under- stood this operating manual. Intended use The snow blade is an implement for winter service and is used for clearing snow from roads, paths, and other areas.
  • Page 5 Safety Attention! Prior to start-up read and comply with the operating manual and the safety instructions.  Attention! Prior to performing maintenance and repair tasks, turn off the engine and re- move the key.  Attention! Injuries due to fluid escaping under high pressure. Comply with the instruction in the operating manual.
  • Page 6: Installation

    Installation Installation Attention!  Before starting up the implement, read the instructions on safety and han- dling for operation of the entire implement and connection to the tractor. Danger!  Switch off the tractor and remove the ignition key before mounting or dis- mounting the implements.
  • Page 7: Adjusting The Slide Runners Or Casters

    Installation Insert the locking pin on the coupling triangle and secure it via the spring cotter pin. If this is not possible then the locking part must be readjusted. To do this both nuts are unscrewed, the locking part is adjusted, the bolt is inserted and then it is retightened. Spring cotter pin Locking pin Fig.
  • Page 8: Adjust The Engagement Angle Of The Blade

    Installation 1-2 mm Fig. 4: Adjust slide runner Secure slide runners with clamp screws. For the variant with casters, engage the lock bracket on the crank. Clamp screw with lock nut Slide runner Fig. 5: Secure slide runner Bracket Fig. 6: Secure telescopic foot Adjust the engagement angle of the blade Page 8...
  • Page 9: Fig. 7: Fastening Screws - Attachment Bracket

    Installation The contact angle of the scraper bar on the ground influences the snow clearing capacity of the blade. A lesser angle results in a more aggressive clearing capacity and the spring flap, folds with slightly more resistance. With a greater angle the spring flaps fold at light- er resistance and the blade runs more quietly.
  • Page 10: Adjust The Pendulum Compensation

    Installation Adjust the pendulum compensation. To ensure the horizontal position of the blade in lifted position, the pendulum compensa- tion springs are attached. The springs are preset in the factory and should only be read- justed as required, i.e. if the blade does not hang horizontally in lifted position. Lift out the snow blade.
  • Page 11: Adjusting The Pressure Control Valve

    Installation Pivot bracket Play approx. 0.5 mm Pendulum plate Stop nuts Fig. 10: Pendulum plate Adjusting the pressure control valve If the snow blade is equipped with a pressure control valve the blade can give way when moving laterally against obstructions, e.g. house walls or curbstones. The pressure at which the blade gives way can be adjusted separately for each pivot direction.
  • Page 12: Operation And Fault Correction

    Operation and fault correction Operation and fault correction Operation If the snow blade is correctly adjusted, you can start working. For travel between imple- mentation sites the snow blade is lifted via the front lift and the lowering safeguard of the front lift is activated.
  • Page 13: Fig. 12: Nameplate

    Operation and fault correction Fig. 12: Nameplate Page 13...
  • Page 14: Maintenance

    Maintenance Maintenance The entire implement must be subjected to regular service. After first use, the threaded unions on the snow blade must be checked and retightened if necessary. Particularly check the following components:  Blade plate  Blade extensions  Flap-segments ...
  • Page 15: Fig. 14: Lubricating Nipple - Piston Rod Eye

    Maintenance Lubricating nipp- Fig. 14: Lubricating nipple - piston rod eye Lubricating nipples Pendulum axle Fig. 15: Lubricating nipple - pendulum axle Lubricating nipple - swing axle Fig. 16: Swing axle of the snow blade Page 15...
  • Page 16: Disposal

    Take the parts to the collection points for residual waste, spe- cial waste, or recycle them depending on material. matev GmbH does not provide any disposal services. Guarantee The general delivery conditions of matev GmbH apply.
  • Page 17: Wear Parts And Accessories

    Maintenance Wear parts and accessories Wear parts and accessories SRM-ST/IX 140-220 attachment cat. 0 SRM-ST/IX 140-220 attachment cat. 1 SRM-ST/IX 140-220 attachment cat. 1 for quick-catch hook SRM-ST/IX 140-220 attachment Scanframe Rubber scraper bar kit 140 cm Rubber scraper bar kit 160 cm Rubber scraper bar kit 180 cm Rubber scraper bar kit 200 cm Rubber scraper bar kit 220 cm...
  • Page 18: List Of Illustrations

    List of illustrations List of illustrations Fig. 1: Adjusting the coupling triangle ....................... 6 Fig. 2: Locking pin on the coupling triangle ....................7 Fig. 3: Connecting the hydraulic lines on the tractor hydraulic system ............7 Fig. 4: Adjust slide runner......................... 8 Fig.
  • Page 19: Ec Declaration Of Conformity

    90579Langenzenn declares that the machines with type designations: SRM-SF -140 ST snow blade : Order number 131 7747 SRM-SF 140 IX snow blade : Order number 131 7748 SRM-SF 160 ST snow blade : Order number 131 7749 SRM-SF 160 IX snow blade...
