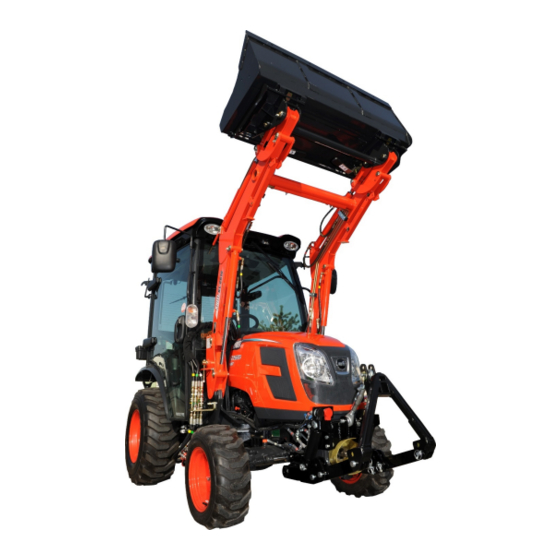

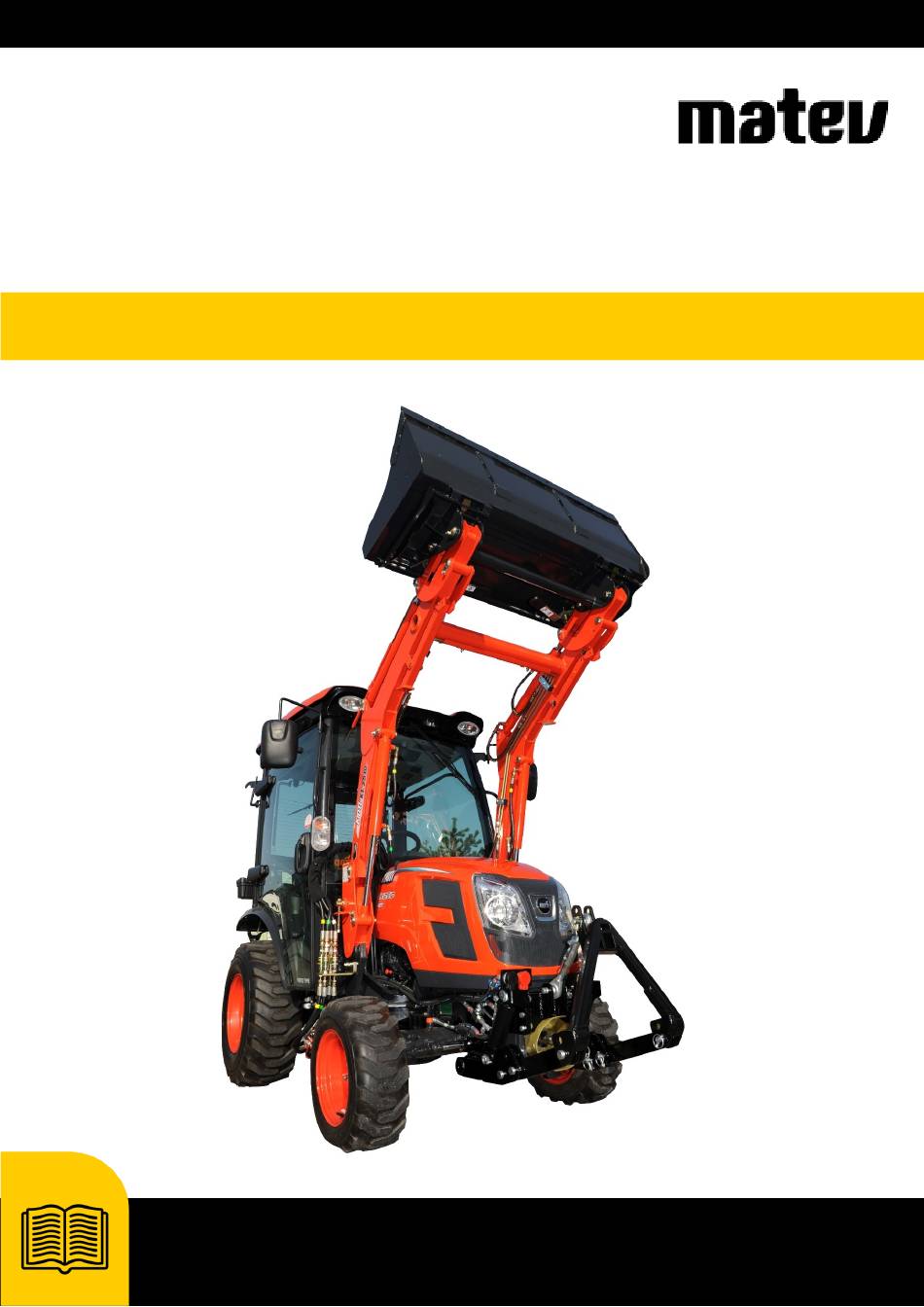

- Page 1 -FKH-Kioti CX 2510 Operating Manual matev GmbH Nürnberger Str. 50 Modifications and errors excepted! D-90579 Langenzenn Version: 5/25/2021 Phone: +49 (0) 9101 90870 Reference number: BA-FPS-FKH -32735...
- Page 2 Order numbers Order no. Designation 131 9008 Front power system (basic machine, hydraulics) 131 9009 BG3 hydraulic extension kit 131 9010 Front power system extension kit CAT.0 131 9019 BG2 adapter kit for front-end loader Modifications and errors excepted! Version: 20...
-
Page 3: Table Of Contents
Hydraulic extension kit ....................14 Engine PTO shaft 1000 rpm CCW ................14 Front PTO shaft 2000 rpm CCW ................15 Central lifting shaft for matev mid-mount mower ............15 Mudguard ......................... 15 Adapter kit for front-end loader ................. 15 Hose holder ...................... - Page 4 Table of contents Use of a front-end loader ..................22 Attachment variants for the coupling support ............23 Ground clearances ....................24 Lowering safeguard for the front power system ............25 7 Maintenance ........................26 Safety during maintenance ..................26 Maintenance ......................
-
Page 5: Introduction
Introduction Welcome to the matev family and thank you for purchasing a product from matev GmbH; we appreciate your trust. You have acquired a quality product, if contrary to expectations you should have problems with the implement, contact your responsible sales partner. -
Page 6: About This Operating Manual
About this operating manual Read this entire manual carefully before operating this machine for the first time. Keep this manual where it is easily accessible. This will enable you to refer to important infor- mation and handling instructions as needed. When the machine is delivered the owner receives instruction regarding operation and maintenance of the machine from his sales partner. -
Page 7: Technical Data
Technical data Front power system Lifting force at the coupling point approx.1600 Lifting force 600 mm before the coupling point Approx. 850 kg Number of cylinders Coupling support KAT 0 Ground clearance in raised state (see Fig.13) ca.213 mm Fig. 2: Technical data Hydraulic power diagram Use the following diagram to determine whether your vehicle provides sufficient hydraulic power. - Page 8 Fig. 3: Hydraulic power diagram Page 8...
-
Page 9: General Safety Notices
General safety notices This chapter summarizes regulations and information that must be observed in connection with machines. Depiction of safety information The safety information in the text is combined with pictograms and signal words which to- gether indicate the severity of the expected risk Danger! Hazardous situations that will result in serious injuries or death. -
Page 10: Instructions For The Owner
All other uses are prohibited! Non-intended use causes: • Danger of injury to the operator or third parties • Damage to the carrier vehicle and the implements • Environmental damage Instructions for the owner Approval for road traffic • This requires valid road traffic licensing •... -
Page 11: Warning Pictograms
• They must be familiar with the relevant safety regulations (accident prevention). Accident prevention The safety regulations and accident prevention regulations are legally regulated in every country. The shop foreman and/or the assigned industrial safety specialist at the company performing the work are responsible for compliance with the applicable regulations. Instruction When the implement is delivered the owner receives instruction regarding operation and maintenance. -
Page 12: Safety Devices
Injuries from emerging high-pressure fluid. Comply with the notice in the operating manual. Machine-specific notice This section explains machine-specific warning pictograms and notices for operation and maintenance of the machine. Caution! Danger of crushing due to moving parts. Never reach into the crushing hazard zone if parts are moving or can move. - Page 13 Order no.: V0 002 965 Fig. 5: Safety notice: Danger of pinching and Caution: Tighten screws Other labels Implement type plate Order no.: V0 002 970 matev logo Order no.: V0 003 093 Fig. 6: Position of type plate / matev logo Page 13...
-
Page 14: Equipment
Equipment Mounting kit CAT.0 Coupling support, lower link, upper link, mounting kit for coupling sup- port Hydraulic extension kit Hydraulic extension kit BG3 Engine PTO shaft 1000 rpm CCW Engine PTO shaft, mounting flange, universal joint shaft, Protective pot Page 14... -
Page 15: Front Pto Shaft 2000 Rpm Ccw
Front PTO shaft 2000 rpm CCW Drive shaft, , universal joint shaft, protective pot mount Central lifting shaft for matev mid-mount mower Central lifting shaft, mounts Mudguard Mudguard, mounts Adapter kit for front-end loader BG2 couplings, caps Page 15... -
Page 16: Hose Holder
Hose holder Hose clamp, mount Page 16... -
Page 17: Operation Of The Front Power System
Operation of the front power system When working on the machine it must be on a level, solid surface and must be protected against rolling away. Before starting up the implement, read the instructions on safety and handling for operation of the entire implement and connection to the tractor. In addition, prior to start-up you must ensure that the vehicle meets the requirements specified in the German Road Traffic Vehicle Licensing Act. -
Page 18: Mounting Of Front-End Hydraulics
lower raise Figure 7: Raise/lower hydraulic connections Mounting of front-end hydraulics Caution! Injuries due to fluid escaping under high pressure. Observe the information in the operating manual. Install the hydraulic lines in such a manner that any risk of damage due to the wheel or the front axle is excluded. -
Page 19: Implement Connections
Implement connections Fig. 8: Implement connections Connections if used with front-end loader Mount or dismount the front-end loader in accordance with the manufacturer’s instructions Observe the following for use of the front power system 1. The hydraulic connections of the front power system are not attached to the control unit, and BG2 couplings are required. - Page 20 BG2 plug for front-end loader Hydraulic hoses for front power system and attach- ment BG2 coupling plug Extension kit (Front-end loader) To control unit Fig. 9: BG2 connection positions Page 20...
-
Page 21: Coupling And Uncoupling Implements
Coupling and uncoupling implements Comply with the axle loads specified by the tractor manufacturer 1. Drive the tractor forward in front of the implement. 2. Lower the front power system hydraulically. 3. Drive slowly toward the implement until the coupling triangle of the tractor is under the coupling triangle of the implement. -
Page 22: Use Of A Front-End Loader
Use of a front-end loader Caution: danger of collision! For use of a front-end loader, the coupling support, lower link and upper link must always be removed! Caution! The front grille of the front-end loader is not compatible with the front power system and therefore cannot be used! Front grille Fig. -
Page 23: Attachment Variants For The Coupling Support
Attachment variants for the coupling support You can make four different settings on the coupling support (see Fig.10). Position the bolts in the corresponding holes to achieve the desired setting. Standard Couple the triangle in points A and C Standard with stronger take-up Couple the triangle in points B and C Stroke increased by about 45 mm Couple the triangle in points B and D... -
Page 24: Ground Clearances
Ground clearances Clearance between the ground and the lowest point on the coupling sup- port in lowered state (ap- prox. 56mm) Ground Figure 12: lowest point on coupling support Clearance between the ground and the lowest point in raised state (approx. -
Page 25: Lowering Safeguard For The Front Power System
Lowering safeguard for the front power system Use the lowering safeguard for: – Driving on roads – Driving between work areas – Cleaning and maintenance Shut-off valve with valve lock Fig. 14: Lowering safeguard, shown in unlocked position 1. Lift the front power system. 2. -
Page 26: Maintenance
Maintenance Safety during maintenance Switch off the vehicle engine, remove the ignition key and set the hand brake. Before each use of implements, inspect all safety-related components, hy- draulic connections and threaded connections. Danger of crushing due to moving parts. Never reach into the crushing hazard zone if parts are moving or can move. -
Page 27: Lubricating Schedule
• Check all screw and bolt connections. Tighten any loose screws and secure loose bolt connections with the securing elements provided. Comply with the screw tighten- ing torques; see Table 1: Screw tightening torques Thread size: Tightening torque: 9.9 Nm 24 Nm 48 Nm 85 Nm... -
Page 28: Maintaining The Hydraulic System
Table 2: Lubrication schedule symbols Maintaining the hydraulic system The hydraulic system is under high pressure. Escaping fluids (hydraulic oil) can penetrate the skin and cause severe inju- ries. Before each use of implements, inspect all safety-related components, hy- draulic connections and threaded connections. Always switch off the engine and de-pressurize the system before working on the hydraulic system. -
Page 29: Repair
Take the parts to the collection points for residual waste, special waste, or recycle them de- pending on material. matev GmbH does not provide any disposal services. Guarantee The general terms and conditions of matev GmbH apply. Page 29... -
Page 30: List Of Illustrations
Fig. 4: Position of type plate and serial number ..................10 Fig. 5: Safety notice: Danger of pinching and Caution: Tighten screws ..........13 Fig. 6: Position of type plate / matev logo ..................... 13 Figure 7: Raise/lower hydraulic connections ..................18 Fig. -
Page 31: Ec Declaration Of Conformity
EC Declaration of Conformity for a machine to confirm compliance with Machinery Di- rective 2006/42/EC and the statutory regulations issued for its implementation. The manufacturer matev GmbH Nürnberger Str. 50 90579 Langenzenn declares that the machine FPS Kioti CX 2510 complies with the provisions of Directive 2006/42/EC and with the national statutory regulations for its implementation.
