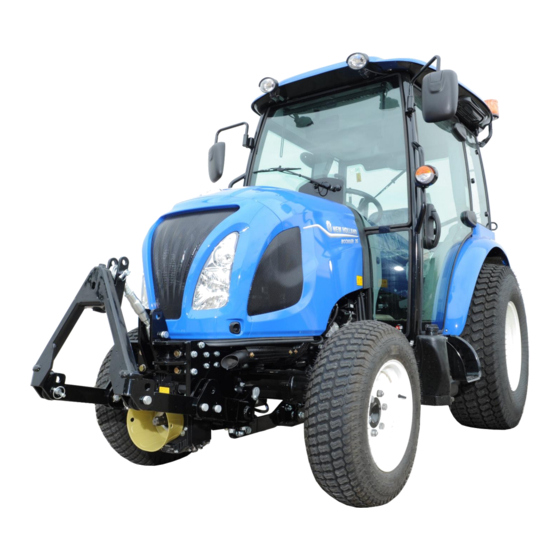

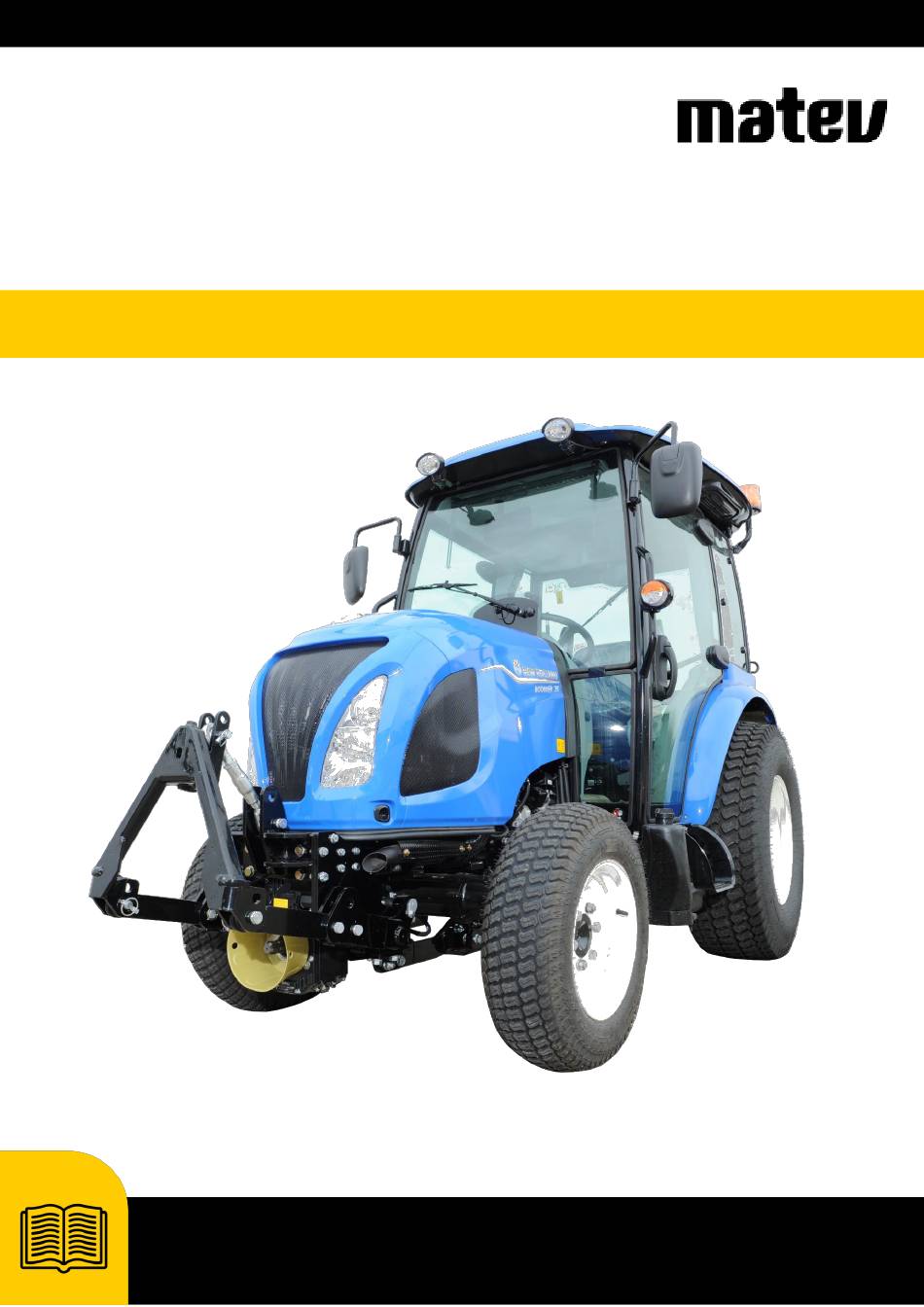

- Page 1 -FKH-NH Boomer MJ 2021 35/40 45/50/55 Operating Manual matev GmbH Nürnbergerstr. 50 Modifications and errors excepted! D-90579 Langenzenn Version: 5/25/2021 Phone: +49 (0) 9101 Reference number: BA-FPS-FKH -32996 90870...
-
Page 2: Table 1: Vehicle Specific Order Numbers
Order numbers Order no. Designation 131 9038 Front power system basic machine New Holland Boomer 30/40/45/50/55 from model year 2021 131 9039 Extension kit cat. 0 New Holland Boomer 30/40 from model year 2021 131 9040 Extension kit cat. 1 New Holland Boomer 30/40 from model year 2021 131 9041 Extension kit cat. -
Page 3: Table Of Contents
Table of contents Table of contents Table of contents ........................3 Introduction ........................5 About this operating manual ....................6 Technical data ........................7 Front power lift NH Boomer 35/40 ................7 Front power lift NH Boomer 45/50/55 ................7 Hydraulic power diagram .................. - Page 4 Table of contents Use of a front-end loader ..................21 Attachment variants for the coupling support ............21 Ground clearances ....................22 Lowering safeguard for the front power system ............27 Maintenance ........................28 Safety during maintenance ..................28 Maintenance......................28 Lubricating schedule ....................
-
Page 5: Introduction
Introduction Welcome to the matev family and thank you for purchasing a product from matev GmbH; we appreciate your trust. You have ac- quired a quality product, if contrary to expectations you should have problems with the implement, contact your responsible sales partner. -
Page 6: About This Operating Manual
About this operating manual Read this entire manual carefully before operating this machine for the first time. Keep this manual where it is easily accessible. This will enable you to refer to important information and handling instructions as needed. When the machine is delivered the owner receives instruction regarding operation and mainte- nance of the machine from his sales partner. -
Page 7: Technical Data
Technical data Front power lift NH Boomer 35/40 Coupling support CAT. 0 / cat. 1 Number of cylinders KAT.0 Lifting force at the coupling point Approx. 930 kg Lifting force 600 mm before the coupling point Approx. 450 kg Ground clearance in raised state (see Fig.12) approx. -
Page 8: Hydraulic Power Diagram
Table 2: Technical data Hydraulic power diagram Use the following diagram to determine whether your vehicle provides sufficient hydraulic power. Add up the power specifications of all available options on your machine. Determine the hydraulic specifications of your vehicle. Notice! The hydraulic power available to your vehicle is generally much lower than the engine power. -
Page 9: General Safety Notices
General safety notices This chapter contains information on this operating manual, as well as guidelines and instructions that you must comply with. Depiction of safety information The safety information in the text is combined with pictograms and signal words which together in- dicate the severity of the expected risk Danger! Hazardous situations that will result in serious injuries... -
Page 10: Warning Pictograms
• They must have completed specialized training as an agricultural machinery mechanic, mo- tor vehicle mechanic, etc. • Personnel without qualified training must be supervised by someone with qualified training. • They must have read and understood this operating manual. •... -
Page 11: Safety Devices
Injuries from emerging high-pressure fluid. Comply with the notice in the operating manual. Machine-specific notice This section explains machine-specific warning pictograms and notices for operation and mainte- nance of the machine. Caution! Danger of crushing due to moving parts. Never reach into the crushing hazard zone if parts are moving or can move. -
Page 12: Fig. 3: Warning Pictogram Caution: Tighten Screws
Safety equipment Lowering safeguard See also chapter 6.9 Safety instructions Caution! Tighten screws Order no.: V0 002 965 Fig. 3: Warning pictogram Caution: Tighten screws Page 12... -
Page 13: Fig. 4: Warning Pictogram Caution: Danger Of Pinching
Caution: danger of pinch- ing from moving parts! Order no.: V0 002 938 Fig. 4: Warning pictogram Caution: danger of pinching Other labels Implement type plate Order no.: V0 002 970 Fig. 5: Position of type plate Page 13... -
Page 14: Fig. 6: Matev Logo
Order no.: V0 003 093 Fig. 6: matev logo Page 14... -
Page 15: Equipment
Equipment Extension kit cat. 0 Coupling support, lower link, upper link, mounting kit for coupling sup- port Conversion kit Cat 1 Lower link, upper link Coupling support Cat 1 Coupling support Engine PTO shaft Engine PTO shaft, incl. mounting accessories. Possible directions of rotation and rotational speeds 1000 rpm CW and CCW 2000 rpm CW and CCW... -
Page 16: Front Pto Shaft
Front PTO shaft Drive shaft, incl. mounting accessories Hydraulic extension kit: BG3 and BG2-TF available BG2-TF couplings, clip covers, hydraulic hoses, holders – for BG2-TF; BG3 couplings, clip covers, hydraulic hoses, holders – for BG3 Pressure accumulator Pressure accumulator, incl. mounting accessories Mudguard Mudguard, mounts Page 16... -
Page 17: Hose Clamp
Hose clamp Hose clamp with mount Page 17... -
Page 18: Operation Of The Front Power System
Operation of the front power system When working on the machine it must be on a level, solid surface and must be protected against rolling away. Before starting up the implement, read the instructions on safety and handling for operation of the entire implement and connection to the tractor. The front power system should only be placed in service if all safety devices are attached and fully functional. -
Page 19: Attachment Of The Front Power System
Attachment of the front power system Mounting of the front power system is described in a separate assembly manual. If the manual is not available, it can be obtained online from matev GmbH. Caution! Connection positions in Fig. 8 for use of the front power system... -
Page 20: Implement Connections
Implement connections Caution! Connection positions in Fig. 8 for use of the hydraulic extension kit Use of the BG2-TF requires hydraulic kit 131 9048 and use of the BG3 requires hydraulic kit 131 9049 Fig. 8: Hydraulic connections Coupling and uncoupling implements Comply with the axle loads specified by the tractor manufacturer Drive the tractor forward in front of the implement. -
Page 21: Use Of A Front-End Loader
Drive slowly toward the implement until the coupling triangle of the tractor is under the cou- pling triangle of the implement. Slowly lift the front power system hydraulically until the implement is slightly lifted. Secure the implement with the appropriate triangle locking mechanism. The triangle locking mechanism depends on the type of implement. -
Page 22: Ground Clearances
Couple the triangle in points A and B. Fig. 10: Coupling support CAT. 1 Ground clearances Ground clearances are measured with front tires of type 25x8.5-14 Caution! The clearance to the ground always depends on: • Vehicle tires • Tire pressure •... -
Page 23: Fig. 11: Lowest Point On The Coupling Support
Ground clearance CAT.0 NH Boomer 35/40 Clearance between the ground and the lowest point on the coupling support in lowered state (approx. 30mm) Ground Fig. 11: Lowest point on the coupling support Ground Ground Ground Clearance between the ground and the lowest point on the front power system in raised state (approx. -
Page 24: Fig. 13: Ground Clearance Lowered
Ground clearance CAT.1 NH Boomer 35/40 Clearance between the ground and the lowest point on the coupling sup- port in lowered state (ap- prox. 22mm) Ground Fig. 13: Ground clearance lowered Ground Ground Ground Clearance between the ground and the lowest point on the front power system in raised state (ap- prox. -
Page 25: Fig. 15: Lowest Point On The Coupling Support
Ground clearance CAT.0 NH Boomer 45/50/55 Clearance between the ground and the lowest point on the coupling support in lowered state (approx. 60mm) Ground Fig. 15: Lowest point on the coupling support Ground Ground Ground Clearance between the ground and the lowest point on the front power system in raised state (approx. -
Page 26: Fig. 17: Ground Clearance Lowered
Ground clearances CAT.1 NH Boomer 45/50/55 Clearance between the ground and the lowest point on the coupling sup- port in lowered state (ap- prox. 20mm) Ground Fig. 17: Ground clearance lowered Ground Ground Ground Clearance between the ground and the lowest point on the front power system in raised state (ap- prox. -
Page 27: Lowering Safeguard For The Front Power System
Lowering safeguard for the front power system Use the lowering safeguard for: – Driving on roads – Driving between work areas – Cleaning and maintenance Lowering safeguard, shown in unlocked posi- tion Fig. 19: Lowering safeguard 1. Lift the front power system. 2. -
Page 28: Maintenance
Maintenance Safety during maintenance Switch off the vehicle engine, remove the ignition key and set the hand brake. Before each use of implements, inspect all safety-related components, hy- draulic connections and threaded connections. Danger of crushing due to moving parts. Never reach into the crushing hazard zone if parts are moving or can move. -
Page 29: Lubricating Schedule
Lubricating schedule Moving parts of the implement must be greased at regular intervals, as well as at the start and end of the season. Symbol Meaning 1/2d Lubricate daily 1/30h Lubricate every 30 operating hours a/2 (1/500h) Lubricate at the beginning and end of the season and after 500 operating hours Use a grease gun Check oil level, top-up oil if necessary... -
Page 30: Fig. 20: Lubricating Schedule
Fig. 20: Lubricating schedule Page 30... -
Page 31: Maintaining The Hydraulic System
Maintaining the hydraulic system The hydraulic system is under high pressure. Escaping fluids (hydraulic oil) can penetrate the skin and cause severe inju- ries. Before each use of implements, inspect all safety-related components, hy- draulic connections and threaded connections. Always switch off the engine and de-pressurize the system before working on the hydraulic system. -
Page 32: Repair
Take the parts to the collection points for residual waste, special waste, or recycle them depending on material. matev GmbH does not provide any disposal services. Guarantee The general terms and conditions of matev GmbH apply. Page 32... -
Page 33: List Of Illustrations
Fig. 3: Warning pictogram Caution: Tighten screws ................... 12 Fig. 4: Warning pictogram Caution: danger of pinching ................13 Fig. 5: Position of type plate ........................13 Fig. 6: matev logo ............................14 Fig. 7: Raise/lower hydraulic connections ....................19 Fig. 8: Hydraulic connections ........................20 Fig. -
Page 34: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity for a machine to confirm compliance with Machinery Directive 2006/42/EC and the statutory regulations issued for its implementation. The manufacturer matev GmbH Nürnberger Str. 50 90579 Langenzenn declares that the machine FPS-FKH-NH Boomer 35/40/45/50/55 complies with the provisions of Directive 2006/42/EC and with the national statutory regula- tions for its implementation.
