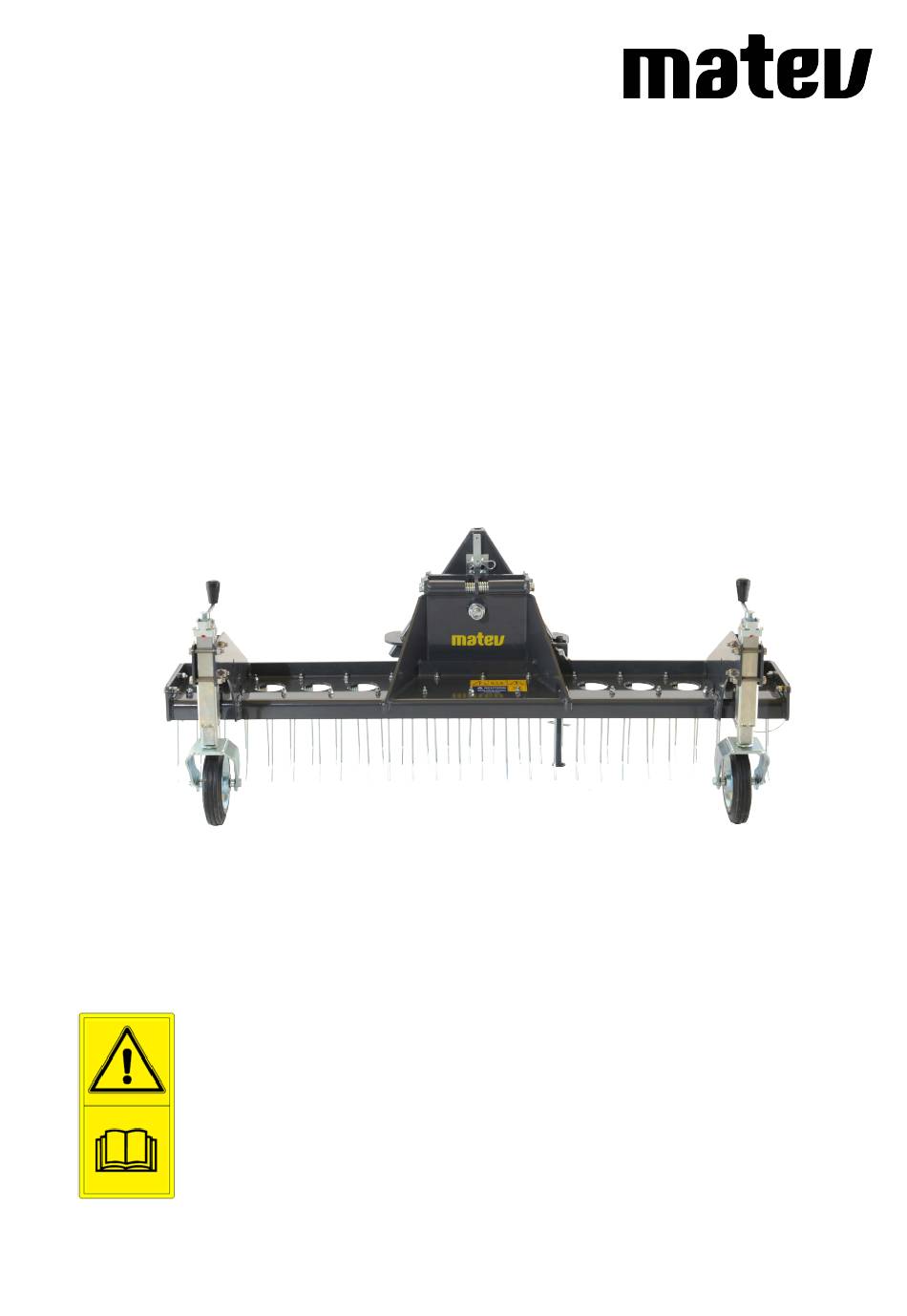

Operating Manual
Carefully read chapter 4 Delivery and transport all the way through before
unpacking the implement.
Prior to using the implement for the first time read this operating manual
carefully and conscientiously all the way through.
Keep this manual where it is easily accessible. This will enable you to refer
to important information and handling instructions as needed.
The operating manual is part of the implement. The operating manual must
always be provided with new and used machines.
SCA-130
Lawn Harrow
Advertisement
Table of Contents
Related Manuals for matev SCA-130
Summary of Contents for matev SCA-130
- Page 1 GmbH Nürnberger Str. 50 90579 Langenzenn T +49 9101 9087 -0 F +49 9101 9087 -20 info@matev.eu www.matev.eu Operating Manual SCA-130 Lawn Harrow Carefully read chapter 4 Delivery and transport all the way through before unpacking the implement. Prior to using the implement for the first time read this operating manual carefully and conscientiously all the way through.
-
Page 2: Introduction
Introduction Dear customer! Dear customer! Thank you for purchasing a product of matev GmbH, we appreciate your trust. You have acquired a quality product, if contrary to expectations you should have problems with the implement, contact your responsible sales partner. -
Page 3: Table Of Contents
Introduction Table of contents Introduction ........................ 2 ......About this operating manual ................... 4 Safety .......................... 5 ..... Intended use ........................ 5 ..Instructions for the owner .................... 5 3.2.1 ..Instruction 3.2.2 ..Qualifications of personnel 3.2.3 ..Accident prevention .. -
Page 4: About This Operating Manual
About this operating manual About this operating manual Prior to first use read this operating manual carefully and conscientiously all the way through. Keep this operating manual where it is easily accessible. This will enable you to refer to important information and handling instructions as needed. At transfer of the machine the owner of the machine receives instruction in the operation and maintenance of the machine from the owner's sales partner. -
Page 5: Safety
Safety Safety Guidelines and instructions with which you must comply, are summarized in this section. Intended use The implement must only be used in accordance with its specifications. Please read chapter5.1 Intended use all the way through. All other uses are excluded. Non-intended use causes: ... -
Page 6: Warnings On The Machine
Safety Danger! Severe injury to the operator or third parties occurs. Comply with the safety notice. Attention! Minor injury to the operator or third parties can occur. The tractor, the implement, or the environment can be damaged. Comply with the safety notice. ... -
Page 7: Delivery And Transport
Delivery and transport Delivery and transport Our implements are delivered in suitable packaging. Please comply with the valid occupational health and safety regulations when unpacking and use suitable hoists if necessary. Delivery on a pallet 4.1.1 Lift the implement off of the pallet Remove the protective packaging and the transport safeguard. -
Page 8: Operation
Operation Operation Danger! At transfer of the machine the owner of the machine receives instruction in the operation and maintenance of the machine from the owner's sales partner. The owner must ensure that operating and maintenance personnel have been instructed in full scope in the operation and maintenance of the machine. -
Page 9: Dismounting The Lawn Harrow From The Front Power System
Operation Coupling support Fig. 1: Coupling support Dismounting the lawn harrow from the front power system Danger! If you do not comply with the following instructions the implement can tip over when it is being detached: Place the lawn harrow on a level and solid substrate. Proceed as follows to dismount the implement from the front power system: Unscrew the fastening screws of the support foot Lower the support foot until it touches the ground, and secure it with the fastening... -
Page 10: Maintenance
Maintenance Maintenance Danger! The implement can fall over. Only perform service and maintenance tasks when the harrow is on level ground the harrow is mounted on the tractor and Attention! Properly reattach all protective devices that have been dismounted after executing the maintenance tasks. -
Page 11: Adjustment Tasks
Maintenance Fig. 3: Pendulum axle and caster Adjustment tasks 6.2.1 Pendulum compensation To ensure a horizontal position of the harrow in lifted position, the pendulum compensation springs are attached. The springs are preset in the factory and should only be readjusted as required, i.e. -
Page 12: Repair
Take the parts to the collection points for residual waste, special waste, or recycle them depending on material. matev GmbH does not provide any disposal services. Guarantee The general terms and conditions of matev GmbH apply. Technical data Type designation Units... -
Page 13: List Of Illustrations
List of illustrations List of illustrations Fig. 1: Coupling support ............................... 9 Fig. 2: Support foot ............................... 9 Fig. 3: Pendulum axle and caster..........................11 Fig. 4: Adjustment of the pendulum compensation....................11 Fig. 5: Feeler wheels ..............................11 Page 13 of 14... -
Page 14: Ec - Declaration Of Conformity
EC Declaration of Conformity for a machine to confirm compliance with the Machinery Directive 2006/42/EC and with the statutory regulations issued for the implementation of the Machinery Directive. The manufacturer matev GmbH Nürnberger Str.50 90579 Langenzenn, Germany declares that the machine...
