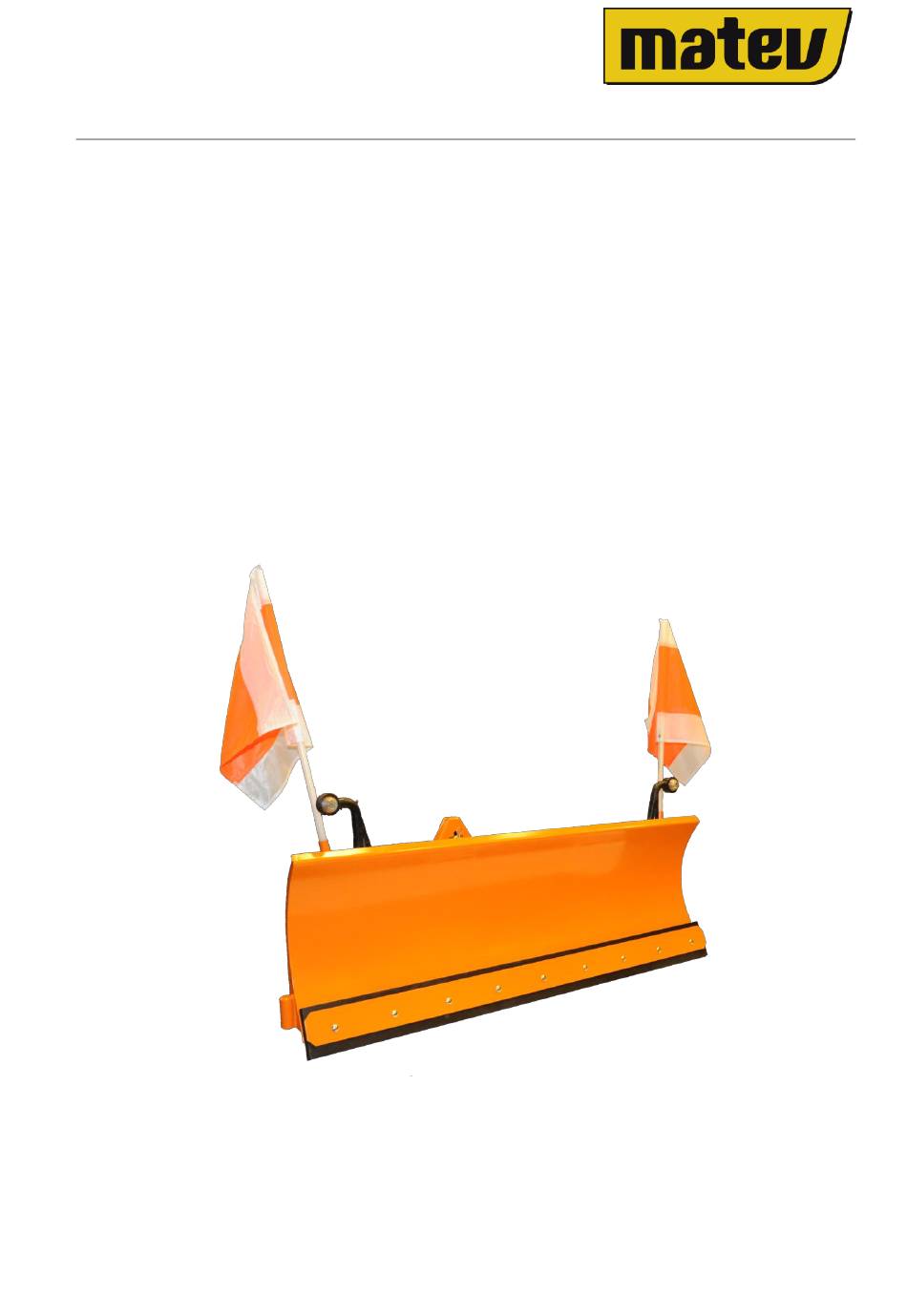

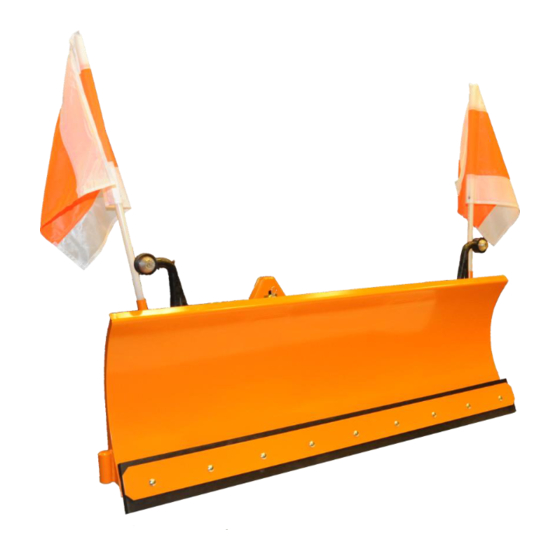

- Page 1 GmbH Nürnberger Str. 50 90579 Langenzenn T +49 (0) 9101 9087 -0 F +49 (0) 9101 9087 -20 info@matev.eu www.matev.eu Original Operating Manual SRM-FB 130 (131_8773) SRM-FB 140 (131_8774) SRM-FB 150 (131_8775) SRM-FB 160 (131_8776) Version 01/2018...
-
Page 2: Table Of Contents
Content Table of contents About this operating manual ..................3 Safety ......................... 4 Intended use ....................... 4 Qualification of personnel .................... 4 General safety instructions ..................4 Special safety instructions ................... 5 Installation ......................... 6 Preparations on the snow blade .................. 6 Installation of pressure contol valve ................ -
Page 3: About This Operating Manual
Safety About this operating manual Dear customer! Thank you for purchasing this implement, we appreciate your trust. Prior to using this implement for the first time, read this operating manual carefully and conscientiously all the way through. Keep this operating manual where it is easily accessible. This will enable you to refer to important information and handling instructions as needed. -
Page 4: Safety
Safety Safety Guidelines and instructions with which you must comply, are summarized in this section. Personnel who mount, operate and maintain this implement, must have read and under- stood this operating manual. Intended use The snow blade is an implement for winter service and is used for clearing snow from roads, paths, and other areas. -
Page 5: Special Safety Instructions
Safety Attention! Injuries can occur due to improper operation. The implement can be dam- aged. Read the operating manual all the way through. Comply with the safety instructions. Attention! Injuries due to fluid escaping under high pressure. Comply with the instructions in the operating manual. Attention! Danger of crushing due to moving parts. -
Page 6: Installation
Installation Installation Attention! Before starting up the implement, read the instructions on safety and han- dling for operation of the entire implement and connection to the tractor. Preparations on the snow blade The prerequisite for attaching the snow blade is a tractor with front lift and coupling trian- gle, as well as two coupling sockets for supplemental hydraulics. -
Page 7: Fig 2: Alignment Of The Angled Swivel Threaded Unions
Installation Fig 2: Alignment of the angled swivel threaded unions Reducer Quick-connect plugs Fig 3: Connection components - tractor side Page 7... -
Page 8: Installation Of Pressure Contol Valve
Installation Installation of pressure contol valve The pressure control valve can be installed as an option. Please mount and connect the hydraulics as in the following pictures. Fig 4: Install the valve Fig 5: Connect hydraulic hoses to the tractor to the tractor Fig 6: Connect hydraulic hoses... -
Page 9: Attaching The Snow Blade On The Tractor
Installation Attaching the snow blade on the tractor In order to attach the snow blade onto a tractor, the tractor must be equipped with a front lift. Below, take up via a coupling triangle is described in more detail: Position the snow blade in such a manner that you can drive to just in front of its coupling triangle. - Page 10 Installation Spring cotter pin Locking pins Fig. 8: Locking pin on the coupling triangle Then the two hydraulic hoses, for the angle adjustment of the snow blade must be fitted onto the coupling sockets of the supplemental hydraulic system. Fig. 9: Connecting the hydraulic lines on the tractor hydraulic system Attention! Both hydraulic connections must be connected on the cylinder in order to swing the snow blade to the left as well as to the right.
-
Page 11: Fig 10: Bring The Parking Rest Into Drive Position
Installation Now lift the snow blade via the tractor hydraulic system and pull out the spring cotter pin of the parking rest. Pull the parking rest all the way up and secure its position by inserting the spring cotter pin into the lowest bore. Securing via the spring cot- ter pin... - Page 12 Installation Remove the spring cotter pin on the tube linch pin of the snow blade and pull it all the way up to unlock the blade. Secure the locking pin by inserting the tube linch pin into the lowest bore. Locking pin Fig.
-
Page 13: Adjustments On The Snow Blade
Installation Adjustments on the snow blade Before starting to clear snow, the slide runners must be correctly adjusted. To do this the snow blade is lowered onto a level surface via the hydraulics. The snow blade is correctly adjusted when the slide runners rest on the ground and the scraper bar just barely touch- es the ground or clears the ground by 1-2 mm. - Page 14 Installation The following adjustment tasks should only be executed as needed: Adjusting the stop buffers. Stop buffers are installed so that the blade is damped when it flips back against the chassis. This prevents excessive noise development and possible damage to the blade. The buffers are preset in the factory and should only be readjusted as required.
-
Page 15: Fig 14: Adjusting The Pendulum Compensation (Bush Is Not Shown)
Installation Pendulum compensation springs Pressure piece Screw Fig 14: Adjusting the pendulum compensation (bush is not shown) Page 15... -
Page 16: Operation And Fault Correction
Operation and fault correction Operation and fault correction Operation If the snow blade is correctly adjusted, you can start working. For travel between imple- mentation sites the snow blade is lifted above the front lift and the lowering safeguard of the front lift is activated. -
Page 17: Contact
Operation and fault correction Contact If there are faults, problems, or other indications of malfunction, contact your sales consultant or directly contact the manufacturer. Enter the article number and the chassis number here. This information is on the type plate of the implement. Code - number: ............... -
Page 18: Service
Service Service The entire implement must be subjected to regular service. After first use, the threaded unions on the snow blade must be checked and retightened if necessary. The screws of the scraper bar and the attachment flange are extremely im- portant in this regard. -
Page 19: Fig 17: Lubricating Nipples And Axles
Service Swing axle, swivel axle Lubricating nipple Tilt axle Fig 17: Lubricating nipples and axles Fig 18: Pendulum axle of the snow blade Page 19... -
Page 20: Disposal
Take the parts to the collection points for residual waste, spe- cial waste, or recycle them depending on material. matev GmbH does not provide any disposal services. Guarantee The general delivery conditions of matev GmbH apply. -
Page 21: List Of Illustrations
EC Declaration of Conformity List of illustrations Fig 1: Connection components on the hydraulic cylinder of the snow blade ..........6 Fig 2: Alignment of the angled swivel threaded unions ................. 7 Fig 3: Connection components - tractor side ....................7 Fig 4: Install the valve ............................ -
Page 22: Ec Declaration Of Conformity
Nürnberger Str. 50 90579 Langenzenn declares that the machine Snow blade SRM-FB 130 131 8773 SRM-FB 140 131 8774 SRM-FB 150 131 8775 SRM-FB 160 131 8776 complies with the provisions of the Machinery Directive 2006/42/EC and with the implementing national statutory regulations.
