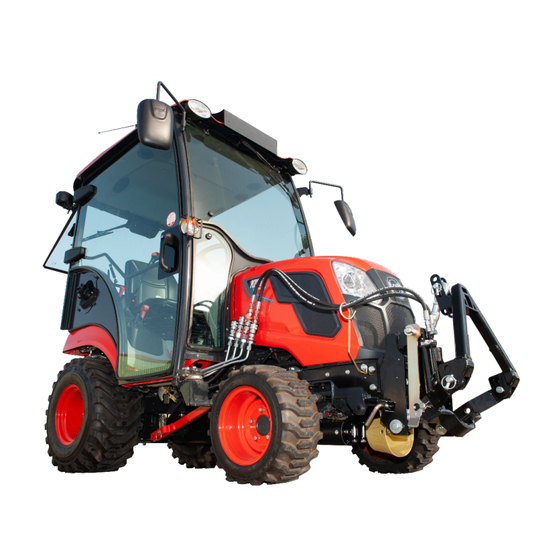

- Page 1 -FKH-Kioti_CS 2520 Operating Manual matev GmbH Nürnberger Str. 50 Modifications and errors excepted! D-90579 Langenzenn Version: 5/10/2021 Phone: +49 (0) 9101 90870 Reference number: BA-FPS-FKH-32421...
- Page 2 Order numbers Order no. Designation 131 9015 Front power system Page 2...
-
Page 3: Table Of Contents
Table of contents Table of contents ........................3 1 Introduction .......................... 5 2 About this operating manual ....................6 3 Technical data ........................7 Front power system ....................7 Hydraulic power diagram .................... 7 4 General safety notices ......................9 Depiction of safety information ................... - Page 4 Table of contents Maintenance ......................23 Lubricating schedule ....................24 Maintaining the hydraulic system ................25 8 Repair ..........................26 9 Disposal ..........................27 10 Guarantee .......................... 27 11 List of illustrations ......................27 12 List of tables ........................27 13 EC Declaration of Conformity ....................
-
Page 5: Introduction
Introduction Welcome to the matev family and thank you for purchasing a product from matev GmbH; we appreciate your trust. You have acquired a quality product, if contrary to expectations you should have problems with the implement, contact your responsible sales partner. -
Page 6: About This Operating Manual
About this operating manual Read this entire manual carefully before operating this machine for the first time. Keep this manual where it is easily accessible. This will enable you to refer to important infor- mation and handling instructions as needed. When the machine is delivered the owner receives instruction regarding operation and maintenance of the machine from his sales partner. -
Page 7: Technical Data
Technical data Front power system Lifting force at the coupling point 1350 kg Lifting force 600 mm before the coupling point 400 kg Number of cylinders Coupling support KAT 0 Ground clearance lowered (see Fig.12) 46.5 mm Ground clearance raised (see Fig.12) 168 mm Hydraulic power diagram Use the following diagram to determine whether your vehicle provides sufficient hydraulic... - Page 8 Fig. 2: Hydraulic power diagram Page 8...
-
Page 9: General Safety Notices
General safety notices This chapter summarizes regulations and information that must be observed in connection with machines. Depiction of safety information The safety information in the text is combined with pictograms and signal words which to- gether indicate the severity of the expected risk Danger! Hazardous situations that will result in serious injuries or death. -
Page 10: Instructions For The Owner
All other uses are prohibited! Non-intended use causes: • Danger of injury to the operator or third parties • Damage to the carrier vehicle and the implements • Environmental damage Instructions for the owner Approval for road traffic • This requires valid road traffic licensing •... -
Page 11: Warning Pictograms
• They must have read and understood this operating manual. • They must be familiar with the relevant safety regulations (accident prevention). Accident prevention The safety regulations and accident prevention regulations are legally regulated in every country. The shop foreman and/or the assigned industrial safety specialist at the company performing the work are responsible for compliance with the applicable regulations. - Page 12 Injuries from emerging high-pressure fluid. Comply with the notice in the operating manual. Machine-specific notice This section explains machine-specific warning pictograms and notices for operation and maintenance of the machine. Caution! Danger of crushing due to moving parts. Never reach into the crushing hazard zone if parts are moving or can move.
-
Page 13: Safety Devices
Safety devices Machines are equipped with various safety devices to protect people who work with a ma- chine or are in the direct vicinity of the machine while working, to avoid premature wear and also to prevent environmental damage. These safety devices are integral components of the machine;... - Page 14 Caution! Tighten screws Order no.: V0 002 965 Fig. 5: Position of sticker: Caution: Tighten screws Other labels Implement type plate Order no.: V0 002 970 Fig. 6: Position of implement type plate Page 14...
-
Page 15: Equipment
Order no.: V0 003 093 Fig. 7: Position of matev logo Equipment Front PTO shaft Universal joint shaft, protective pot PTO stub, drive shaft, mount Universal joint shaft guard Universal joint shaft guard, mounts Page 15... -
Page 16: Suspension System For Original Kioti
Suspension system for original Kioti Hydraulic kit, mount Exhaust muff for original Kioti mid-mount mower Muff, muff adapter, hose clamps, suction hose Page 16... -
Page 17: Operation Of The Front Power System
Operation of the front power system When working on the machine it must be on a level, solid surface and must be protected against rolling away. Before starting up the implement, read the instructions on safety and handling for operation of the entire implement and connection to the tractor. In addition, prior to start-up you must ensure that the vehicle meets the requirements specified in the German Road Traffic Vehicle Licensing Act. -
Page 18: Mounting Of The Hose Guide
Mounting of the hose guide Now mount the hose guide as shown in the bottom figure. Use one of the M8x25 hexagon screws and the matching mudguard washer provided. Hose holder 1 x DIN 933 M8x25 1 x DIN 522-8.4x40x3 Fig. -
Page 19: Use Of A Front-End Loader
Use of a front-end loader Proceed as follows if a front-end loader is used: Disconnect the two hydraulic hoses and remove them from the hose mount. Pull out the two bracket bolts and remove the front part of the basic machine. Cau- tion: The mounting bracket does not have to be removed. -
Page 20: Attachment Variants For The Coupling Support
Attachment variants for the coupling support You can make four different settings on the coupling support (see Fig.10). Position the bolts in the corresponding holes to achieve the desired setting. Standard Couple the triangle in points A and C Standard with stronger take-up Couple the triangle in points B and C Stroke increased by about 45 mm Couple the triangle in points B and D... -
Page 21: Ground Clearances
Ground clearances Lowest point in raised state Lowest point in lowered state Page 21 Fig. 12: Ground clearances... -
Page 22: Lowering Safeguard For The Front Power System
Lowering safeguard for the front power system Use the lowering safeguard for: – Driving on roads – Driving between work areas – Cleaning and maintenance Lowering safeguard Bolt with cotter pin Fig. 13: Lowering safeguard, shown in unlocked position 1. Lift the front power system. 2. -
Page 23: Maintenance
Maintenance Safety during maintenance Switch off the vehicle engine, remove the ignition key and set the hand brake. Before each use of implements, inspect all safety-related components, hy- draulic connections and threaded connections. Danger of crushing due to moving parts. Never reach into the crushing hazard zone if parts are moving or can move. -
Page 24: Lubricating Schedule
Thread size: Tightening torque: 9.9 Nm 24 Nm 48 Nm 85 Nm 210 Nm Table 1: Screw tightening torques Lubricating schedule Moving parts of the implement must be greased at regular intervals, as well as at the start and end of the season. Symbol Meaning Lubricate daily... -
Page 25: Maintaining The Hydraulic System
Maintaining the hydraulic system The hydraulic system is under high pressure. Escaping fluids (hydraulic oil) can penetrate the skin and cause severe inju- ries. Before each use of implements, inspect all safety-related components, hy- draulic connections and threaded connections. Always switch off the engine and de-pressurize the system before working on the hydraulic system. -
Page 26: Repair
Tel.: +49 (0) 9101 9087-0 www.matev.eu info@matev.eu Please note the following information as well: • All repairs must be carried out by a specialized company. • Use only original matev replacement parts. • Modifications to the machine are prohibited. Page 26... -
Page 27: Disposal
GmbH does not provide any disposal services. Guarantee The general terms and conditions of matev GmbH apply. List of illustrations Fig. 1: Definition of orientation and direction of rotation ................6 Fig. 2: Hydraulic power diagram ......................8 Fig. -
Page 28: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity for a machine to confirm compliance with Machinery Di- rective 2006/42/EC and the statutory regulations issued for its implementation. The manufacturer matev GmbH Nürnberger Str. 50 90579 Langenzenn declares that the machine FPS-Kioti CS 2520 complies with the provisions of Directive 2006/42/EC and with the national statutory regulations for its implementation.
