Copeland Furniture Wave Queen Bed Instructions

I n s t r u c t i o n s f o r W a v e Q u e e n B e d s
Please identify
the listed items
before
installation.
Notice: Beds must be disassembled before moving to avoid damage. Never attempt to
Tools required
Step 1:
Unpack the deck
Unpack the box. Lean the bed Deck
against a wall, making sure to protect
the wood surfaces. The Deck Corner
Blocks should be facing you (Figure 1).
Step 2:
Install middle legs
Keep the bed deck upright. Align the
holes on the middle leg plates with the
holes on the center rail. Insert hex bolts
in each hole on middle leg plates and
tighten the middle legs by using the
provided Allen wrench (Figure 2).
Middle
Leg
Hardware included:
¼" - 20 x 20mm hex bolts (24)
¼" - 20 x 80mm hex bolts (4)
Allen wrench (1)
Cross nuts (4)
#8 - 32 x 1" machine screw w/ washers (4)
move the bed while it is assembled. Failure to do so would void the warranty.

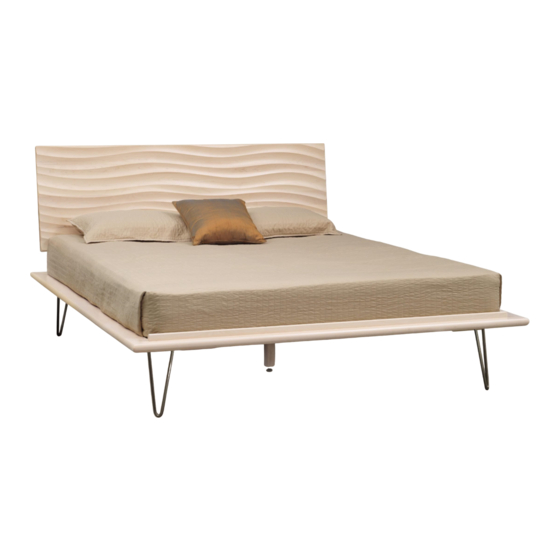

Wave bed
66" x 87 1/2" x 37 5/8"/40 5/8"
Queen
Allen wrench (provided)
Deck Corner
Figure 1.
Lean bed deck
against a wall
Protect
wood
surfaces
¼ - 20 x 20mm
hex bolt
Figure 2.
Block
Install Middle Legs
Components included:
Middle support legs (2)
Hairpin/wooden tapered legs (4)
Deck (1)
Headboard assembly (1)
Footboard rail (1)
Center Rail
Floor
1
