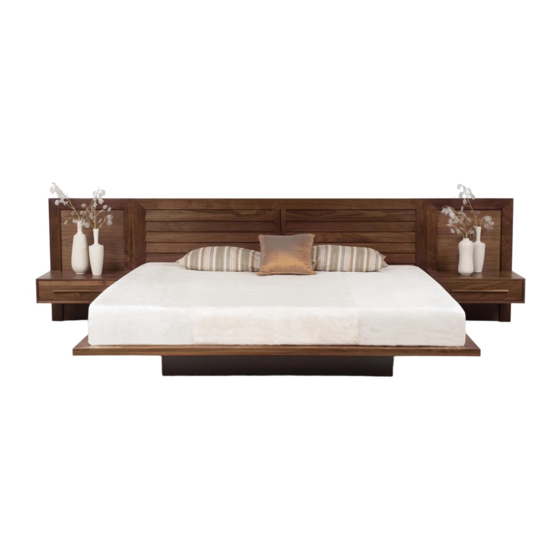

Copeland Furniture Plinth Bed Instructions

Moduluxe Box Nightstand Instructions for Plinth Bed
These instructions are for the
Moduluxe box nightstand. Please
identify the following items before
assembly.
Tools required
Step 1:
Assemble the box nightstand
Insert and tighten two 2" Allen bolts
through the holes in the back of the
back panel to the holes on the back
of the nightstand box.
Step 2:
Attach the shelf support to
the nightstand
Align the 3 holes in the shelf support
with the 3 holes in the bottom of the
nightstand. Insert and tighten a set
of 1-¼" screw and washer in each
of the 3 holes with a Philips screw
driver (Figure 2-1&2).
Case Front
Figure 2-1. Locations to attach screws
P a g e 1
Phillips head screw driver
1 ¼" screws &
washers
and washers
Hardware included:
1 3/8" Allen bolts (3)
Alignment bracket (1)
2" Allen bolts (2)
Allen wrench (provided)
Back panel
Figure 1. Locations to attach screws
Back panel
Figure 2-2. Attach screws and washers from the
5/8" pan head screws (2)
Allen wrench (1)
1 ¼" screws & washers (3 sets)
and washers
holes under the shelf support to the
holes under the nightstand box.
2" Allen bolt
Nightstand box
Shelf
support
