Instructions for Keaton Beds
Please
identify the
listed items
before
installation.
NOTICE:
Tools required
Step 1:
Attach the Base Assemblies to the Siderails
Align the holes on each end of the
Base Plate with the holes on siderail
cleats (Figure 1). Insert the 2"
(50mm) hex bolts from the top of the
cleats and tighten with the provided
Allen wrench. Make sure the tip of
the leg is facing out.
Hardware included:
¼ - 20 x 50mm hex bolts (8)
Allen wrench (1)
Platform hardware (1)
Siderail hardware (1)
Beds must be disassembled before moving to avoid damage. Never attempt to
move the bed while it is assembled. Failure to do so would void the warranty.

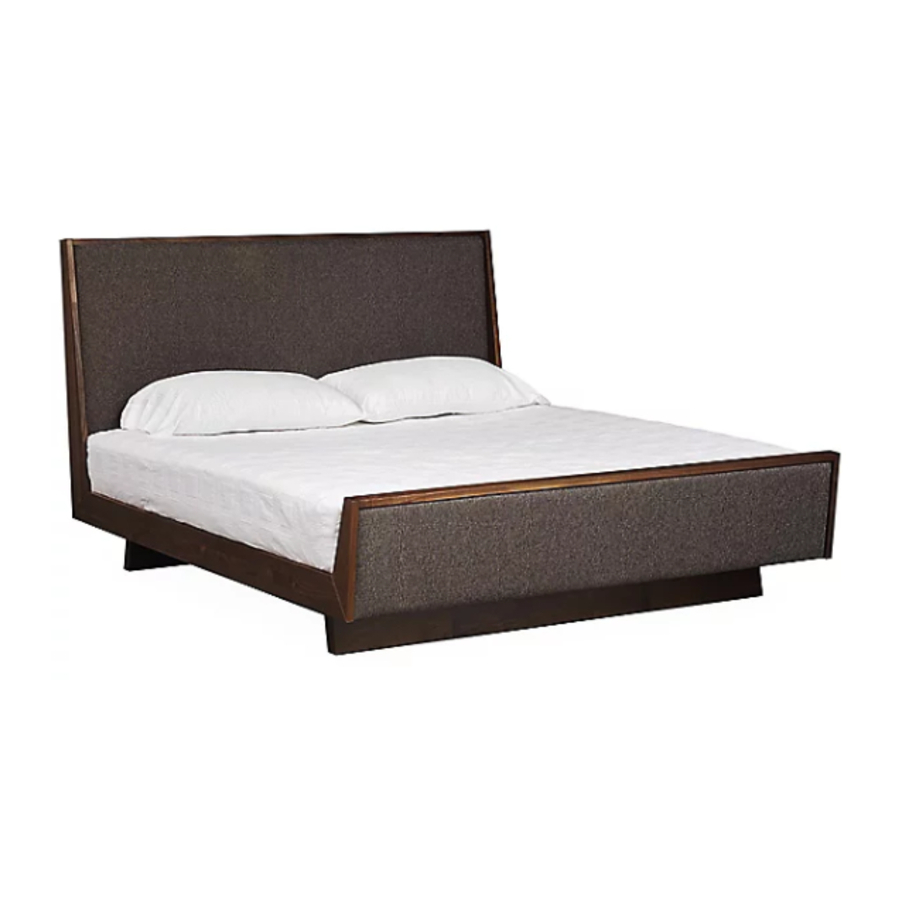

Keaton Upholstered Bed
62 1/2" x 88" x 49 3/4"
Queen
78 1/2" x 88" x 49 3/4"
King
74 1/2" x 92" x 49 3/4"
Cal King
Allen wrench (provided)
Siderail
Figure 1.
Install the Base Assembly to the Siderails
¼ - 20 x 50mm
hex bolt
Siderail Cleat
Base Plate
Components included:
Upholstered headboard (1)
Upholstered footboard (1)
Base assembly (2)
Siderail L (1)
Siderail cleat
Base Plate
Siderail R (1)
Platform kit (1)
6" support block (1)
Base
Assembly
Leg
facing out
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Keaton Queen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Copeland Furniture Keaton Queen

  • Page 1 Instructions for Keaton Beds Please Hardware included: Components included: identify the ¼ - 20 x 50mm hex bolts (8) Upholstered headboard (1) Siderail R (1) listed items Allen wrench (1) Upholstered footboard (1) Platform kit (1) before 6” support block (1) Platform hardware (1) Base assembly (2) installation.
  • Page 2 Tools required Allen wrench Wrench (in the siderail hardware kit) Step 2: Use the following steps to attach the headboard and footboard to the siderails (Figure 2) Curved washer Screw the threaded stud into the Slide the rail into mating holes for Slide the curved washer and insert in the headboard leg until it dowels on the headboard side.
  • Page 3 Tools required Philips head screwdriver Step 3: Install the support leg on the middle platform assembly Headboard Align the holes on the support leg and middle platform assembly spine. Tighten with 1 ¾” pan head screw (Figure 3). Make sure to retract the Middle platform support leg leveler slightly so that it only assembly...
  • Page 4 Care Instructions To care for and preserve the finish on your new Copeland Furniture piece, please keep the following recommendations in mind. While our furniture has been finished with a durable top coat, the surface may be sensitive to dents and abrasions during the first 30 days in your home.
