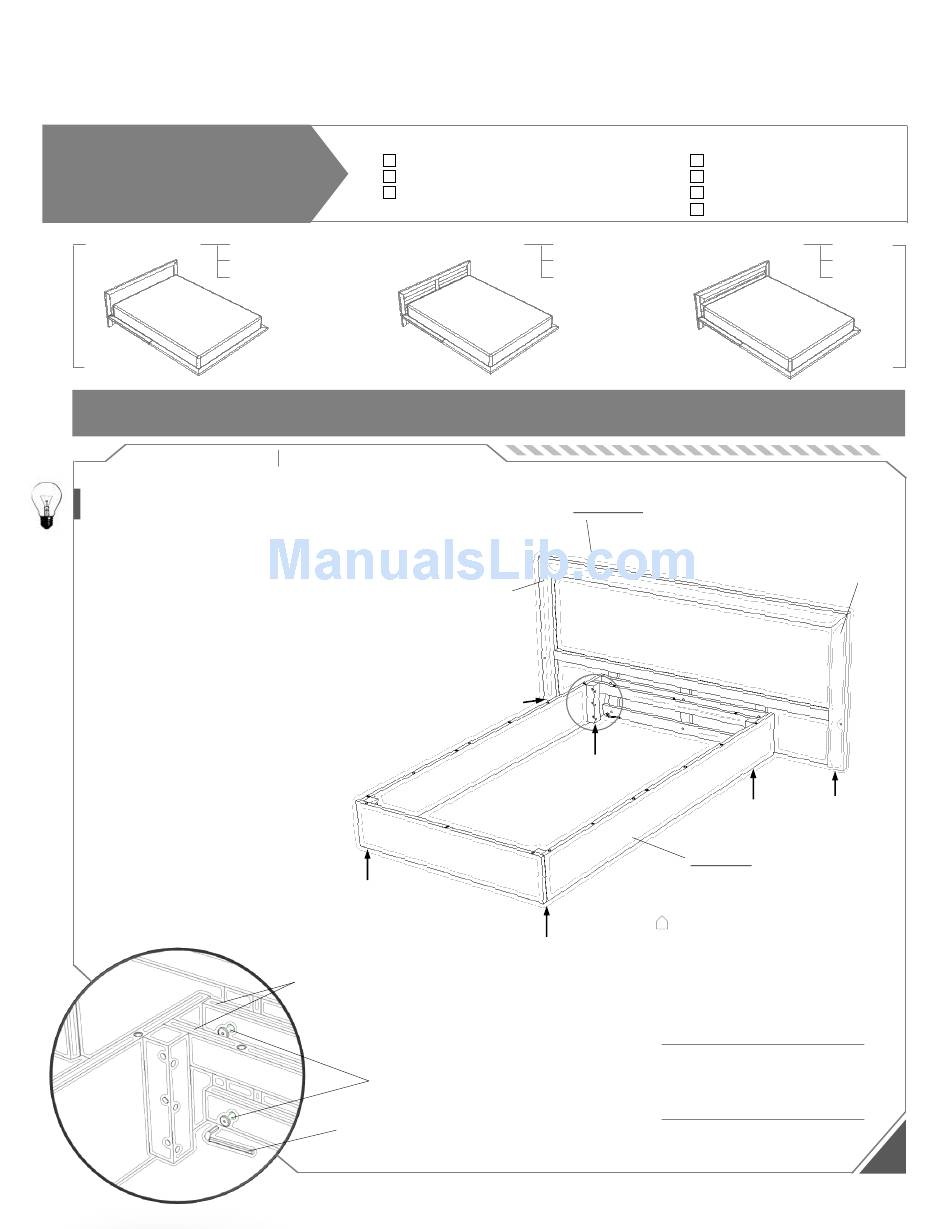

Assembly Instructions for Moduluxe Plinth Beds
Instructions for the bed types
pictured below. Please identify the
following items.
Queen
Veneer HDBD
King
Cal-King
Notice: Beds must be disassembled before moving to avoid damage. Never attempt to move the bed while it is
assembled. Failure to do so would void the warranty.
Tools required
Step 1:
Attach plinth base to the
headboard (HDBD)
Stand the headboard upright and align
the holes in plinth box ribs with the
holes in headboard. Insert and loosely
tighten 2" – 4mm bolts by using the
provided 4mm Allen wrench. Tighten all
the bolts. Level the HDBD (2 leveling
points) and the plinth base by turning
the leveling bolts underneath each
HDBD leg and the plinth box corner
blocks. (Figure 1).
Hardware included:
35mm – 4mm bolt (Q 26 / K 28 / CK 28)
2" – 4mm bolt (Q 8 / K 10 / CK 10)
4mm Allen wrench (1)
Clapboard HDBD
Allen wrench (provided)
HDBD leg
Plinth
leveling
corner
block
Plinth box ribs
2" – 4mm bolt
4mm Allen wrench (provided)
Queen
King
Cal-King
Headboard
HDBD
Leveling
point
Plinth
leveling
corner
block
Plinth
leveling
corner
block
Components included:
Headboard (1)
Plinth box (1)
HDBD deck / FTBD deck
Deck spine (1)
Upholstery HDBD
Queen
King
Cal-King
HDBD leg
Plinth
HDBD
leveling
Leveling
corner
point
block
Plinth box
Figure 1.
Connect plinth base
with HDBD
Number of bolts for HDBD
Queen
King
Cal-King
6
8
8
1
