Sunricher SR-SBP2801K4-5C-E Quick Start Manual

3 in 1 RF+Bluetooth Remote Controller
Important: Read All Instructions Prior to Installation

Function introduction

Click to turn on paired
light devices, press
and hold to increase
light intensity
Click to turn off paired
light devices, press
and hold to decrease
light intensity
With Plastic Frame
14.7 mm
The remote control can be fixed on the wall with 3M glue or screw.
CCT button, press and hold to
increase warm white and
decrease cool white, release
and press and hold again to
increase cool white and
decrease warm white.
RGB color button, press and
hold down to get the color you
would like

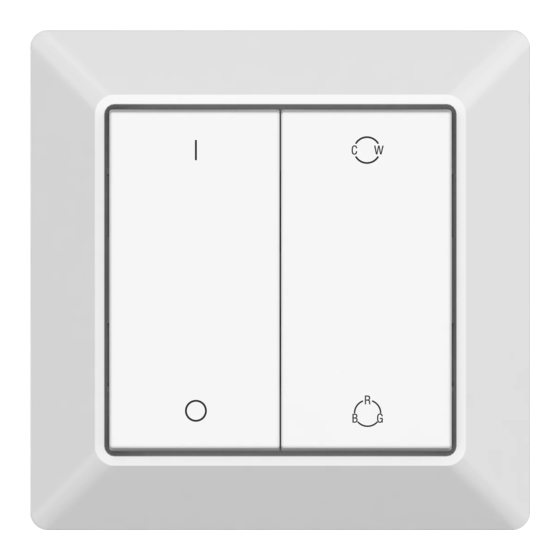

Front side
80.5 mm
Back side
70200027 With Glass Frame
10.10 mm

Product Data

Protocol
Power Supply
Transmission Frequency
Transmission Range (free field)
Protection Type
Dimming Range
Dimensions
• RGB, CCT, DIM 3 in 1 wall remote based on RF+Bluetooth Mesh
• Battery powered, ultra low power consumption
• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons
• Enables to control 1 zone of receivers
• Mesh network for further control distance, receivers can transmit signal to each other
• 2.4 GHz global operation
• The controlled receiver status can be quickly synchronized to the smart APP
• Transmission range between every two neighbor devices up to 30m
• Each receiver can be paired to max. 8 remote controls
• Enables to control universal DIM, CCT, RGB, RGBW and RGB+CCT RF+Bluetooth devices
• Standard size, compatible with existing EU size frame
86mm
The remote control can be fixed on the wall with 3M glue or screw.
RF+Bluetooth
3VDC(1xCR2430 battery)
2.4GHz
0.1%-100%
80.5x80.5x14.7mm / 86x86x14mm
30m
IP20
