VR40 ENGINE MOUNTED COMPRESSOR
SYSTEM
OWNER OPERATORS' MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR40 and is the answer not in the manual?

Questions and answers

Related Manuals for Mea VR40

Summary of Contents for Mea VR40

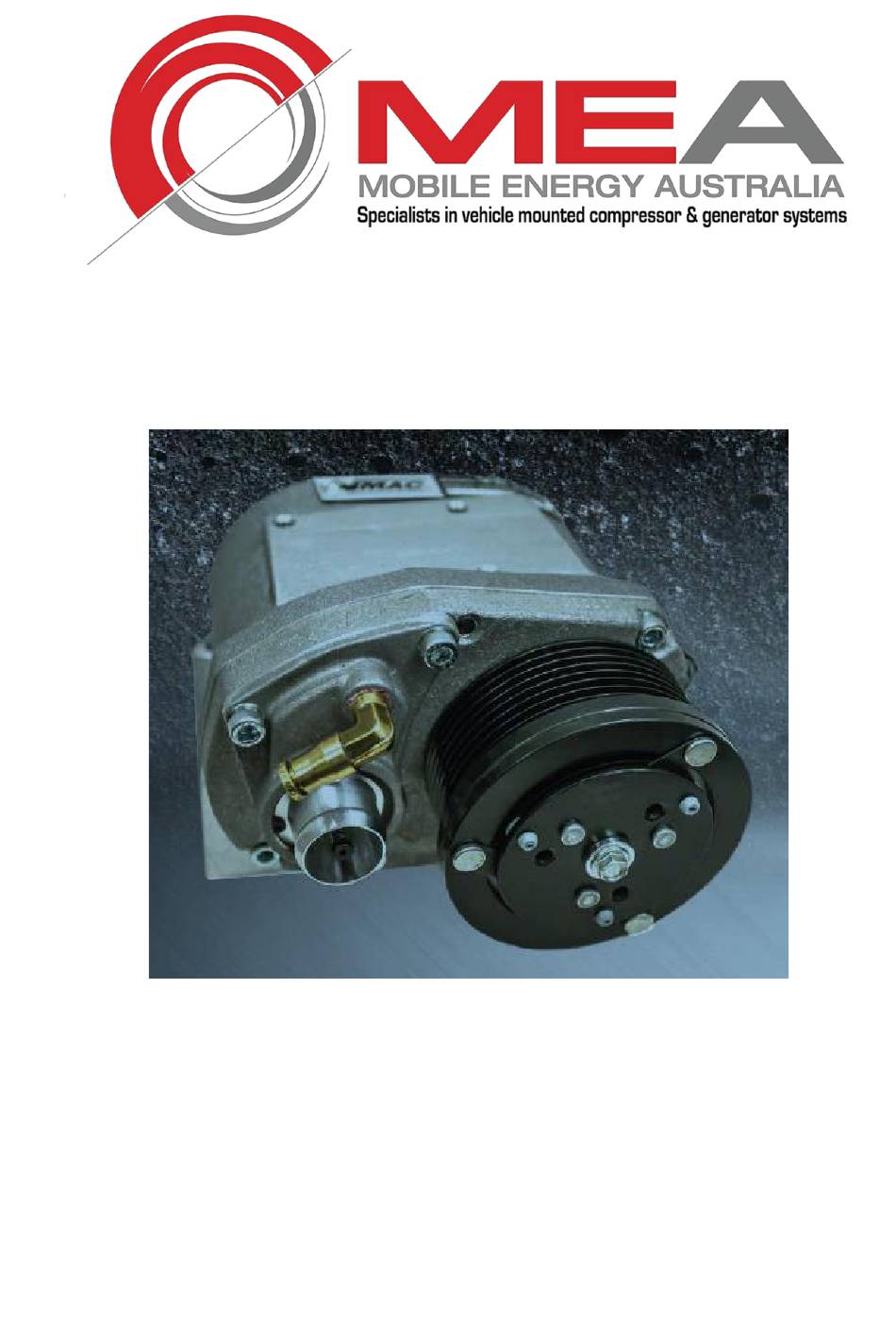

  • Page 1 VR40 ENGINE MOUNTED COMPRESSOR SYSTEM OWNER OPERATORS’ MANUAL...
  • Page 2 THIS PAGE IS LEFT BLANK PURPOSELY. Document No 3000-D0001-01...
  • Page 3 MEA Product Registration Form THIS FORM MUST BE COMPLETED AND RETURNED WITHIN 30 DAYS OF INSTALLATION WARRANTY WILL BE VOID Document No 3000-D0001-01...
  • Page 4 MEA Product Registration Form This form must be completed and returned to MEA at the time of Installation. Warranty will be void if this form is not received by MEA within 30 days of installation. MEA Dealer Information Company Name: _____________________________________________________________...

  • Page 5: Table Of Contents

    TABLE OF CONTENTAIR Introduction ..........................4 Safety Messages ........................4 Important Safety Notice ......................5 Safety Precautions ........................7 Personal Hazards ........................8 System Identification and Warnings..................9 System Specifications ......................10 System Components ......................11 Compressor .......................... 12 Control Panel ........................12 Throttle control ........................
  • Page 6 Thank you for your valued support. Please find enclosed the following information for your convenience: • Commissioning Sheet • VR40 Owner’s Manual • General MEA Brochure For further information, technical support, service or sales, please phone us on +61 7 3273 6803. Thank you,...
  • Page 7 Installation Test Report Customer: ________________________________________ Job #: _________________________ 8060 VR70 Compressor Serial 8070 Pred. 40 Number 8080 Pred. 60 80100 AHBI HK400 Dynaset Infinity Can bus Control unit Murphy Analogue Model of truck VIN Number Type of speed control Manual Electronic Reverse rotator PTO serial number...

  • Page 8: Introduction

    1. INTRODUCTION This manual provides operation instructions, specifications, adjustment, maintenance, and Warranty information for the VMAC VR40 UNDERHOOD air compressor. SAFETY WARNINGS This symbol is used to call your attention to instructions concerning your personal safety. Watch for this symbol; it points out important safety precautions, it means “attention,...
  • Page 9 MEA will not be held responsible for any liability, injuries, loss, or damage to individuals or to equipment as a result of the failure of any person to properly adhere to the procedures set out in this manual or standard safety practices.

  • Page 10: Safety Precautions

    2. SAFETY PRECAUTIONS Avoid all contact with pressurized air, if it penetrates your skin, it can enter your bloodstream and cause serious bodily harm or even death. Do not breathe the compressor air. Vaporized oil is a severe respiratory hazard. Vaporized oil propelled by high pressure air is an explosive mixture.

  • Page 11: System Identification And Warnings

    SAFETY PRECAUTIONS - Continued The compressor system is under sufficient pressure that a leak could force the air/oil mixture through the skin directly into your bloodstream. This could cause serious injury or death. Never adjust or attempt to make any repairs to the system while the engine is running.

  • Page 12: System Specifications

    • 200 PSI (13 bar) relief valve in separator tank • rapid blow-down valve to relieve system pressure on shutdown Lubrication: • MEA certified and approved synthetic oil Filters: • Air filter: paper-type replaceable • Oil filter: spin-on type high pressure •...

  • Page 13: Hoses

    • PTFE regulator pressure tube (separator to regulator) Air Compression The VR40 systems use a VMAC designed and built oil flooded-lobe, rotary screw compressor. The oil-filled compressor housing contains two rotors. Compression occurs when inlet air (at normal atmospheric pressure) enters a chamber where it is trapped between meshing rotor lobes.

  • Page 14: Filtration

    The cooled oil is then returned to the compressor via the oil return hose. Belt Alignment and Tensioning The VR40 system may be driven by serpentine belt that runs off the engine crank pulley. Depending on the system the compressor may be driven by a belt with 8 ribs or less.

  • Page 15: Safety Devices

    SYSTEM SPECIFICATIONS - Continued Safety Devices A 200 PSI (13 Bar) pressure relief valve is installed in the separator tank to prevent system over pressure. The system is also equipped with an automatic rapid blow-down system to discharge system pressure on shutdown. The system makes use of the OEM safety circuits when available or adds safety circuits where required.

  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS The vehicle must not be parked on grades exceeding 15 º in slope as this may affect lubrication and air/oil separation. 1. Place the automatic transmission in park or neutral and fully apply the park brake. 2. Start and run the vehicle long enough for the engine to stabilize at base idle and reach normal operating temperature.
  • Page 17 TROUBLE SHOOTING Document No 3000-D0001-01...
  • Page 18 TROUBLE SHOOTING – Continued Document No 3000-D0001-01...
  • Page 19 TROUBLE SHOOTING - Continued Document No 3000-D0001-01...
  • Page 20 TROUBLE SHOOTING – Continued Document No 3000-D0001-01...

  • Page 21: Routine Maintenance

    ROUTINE MAINTENANCE The compressor system does not contain reed-valves or other easily fouled, fatigue-prone components. With proper maintenance, the need for premature repair or component replacement can be drastically reduced. The most critical aspect of maintenance is proper air filtration and clean oil. If any particles enter the compressor through the air inlet, they can contaminate roller bearings and the rotors in the compressor.

  • Page 22: Oil Level Maintenance

    ROUTINE MAINTENANCE - Continued Oil Level Maintenance You must use the VMAC supplied and approved compressor oil in this system. Failure to use this oil will result in damage to the compressor and may void your warranty. 1. Ensure the vehicle is parked on level ground and that the compressor system is de- pressurized and cool to the touch.

  • Page 23: Inspecting The Drive Belt

    ROUTINE MAINTENANCE - Continued Inspecting the Drive Belt Check the drive belt carefully for evidence of glazing, missing portions of the ribs or damage to the belt edges and surface. If the belt is damaged, install a new drive belt. Inspect all pulleys and idlers for damage.

  • Page 24: Replacing The Air Filter

    Never attempt to clean the filter element with compressed air. Replace the filter element. Replacing the Oil Filter Always use an MEA oil filter. MEA oil filters are designed to work properly at system pressure. Standard automotive oil filters are NOT capable of withstanding system pressure.

  • Page 25: Changing The Coalescing Filter

    3. Install and tighten the plug. 4. Remove the filter by turning it counter clockwise. Before discarding the filter, check to make sure that the threaded nipple did not unscrew with the filter. If the nipple is in the filter, remove it carefully to avoid thread damage and replace it in the tank. 5.
  • Page 26 1. Install the test tool at the system outlet. If you are using the VMAC test tool, the appropriate orifice size is .125.” 2. Make sure that the ball valve is closed. 3. Place the transmission in park and fully apply the park brake. 4.
  • Page 27 COMPRESSOR LAYOUT Document No 3000-D0001-01...
  • Page 28 WARRANTY Document No 3000-D0001-01...
  • Page 29 (2) years from the date of installation. Components supplied under warranty shall be warranted for the remainder of the original warranty period. MEA factory rebuilt components shall be warranted for a period of 6 months from date of shipment. MEA OBLIGATIONS...
  • Page 30 Product(s) failure. BUYER OBLIGATIONS Buyer shall notify MEA of the alleged defect within 10 days of initial discovery and return the allegedly defective component(s) within 30 days of initial discovery. The Buyer must prepay all costs associated with the warranty.
  • Page 31 Management Managing Director – Rob Pulz Office: 07 3273 6803 Sales Email: sales@mobileenergyaustralia.com.au Office: 07 3273 6803 Spare Parts BH Office: 07 3273 6803 Email: sales@mobileenergyaustralia.com.au Service Email: workshop@mobileenergyaustralia.com.au Office: 07 3273 6803 VMAC Warranty Document No 3000-D0001-01...
