Page 1 of 6 ECC0300R C0342R FITTING INSTRUCTIONS FOR ECC0300R RHS ENGINE CASE COVER HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...

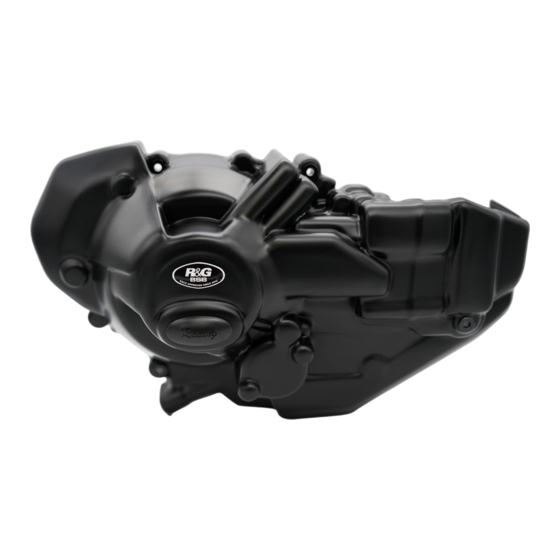

0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM NO. DESCRIPTION ITEM 1 ECC0300R ENGINE CASE COVER INCLUDING FITTED SPACERS ITEM 2 M6 x 1.00 x 25mm CAP HEAD BOLTS ITEM 3 M6 x 1.00 x 35mm CAP HEAD BOLTS ITEM 4 M6 x 1.00 x 40mm CAP HEAD BOLTS...
Ensure the pre-fitted threaded spacers in the casing are hand tight against the inside of the • ECC0300R Engine Case Cover (item 1). Offer up the R&G cover to the engine and carefully fit it over the casing. Ensure that the three R&G •...
Page 4
Page 4 of 6 ECC0300R C0342R NOTICE DE MONTAGE POUR ECC0300R PROTECTION CARTER MOTEUR CÔTÉ DROIT E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N...
Assurez-vous que les entretoises filetées préinstallées dans le carter sont serrées à la main contre • l'intérieur du couvercle du carter moteur ECC0300R (article 1). • Présentez le couvercle R&G sur le moteur et placez-le soigneusement sur le carter. Assurez-vous que les trois trous de boulons R&G soient alignés avec les trous du carter du moteur, puis poussez aussi...
