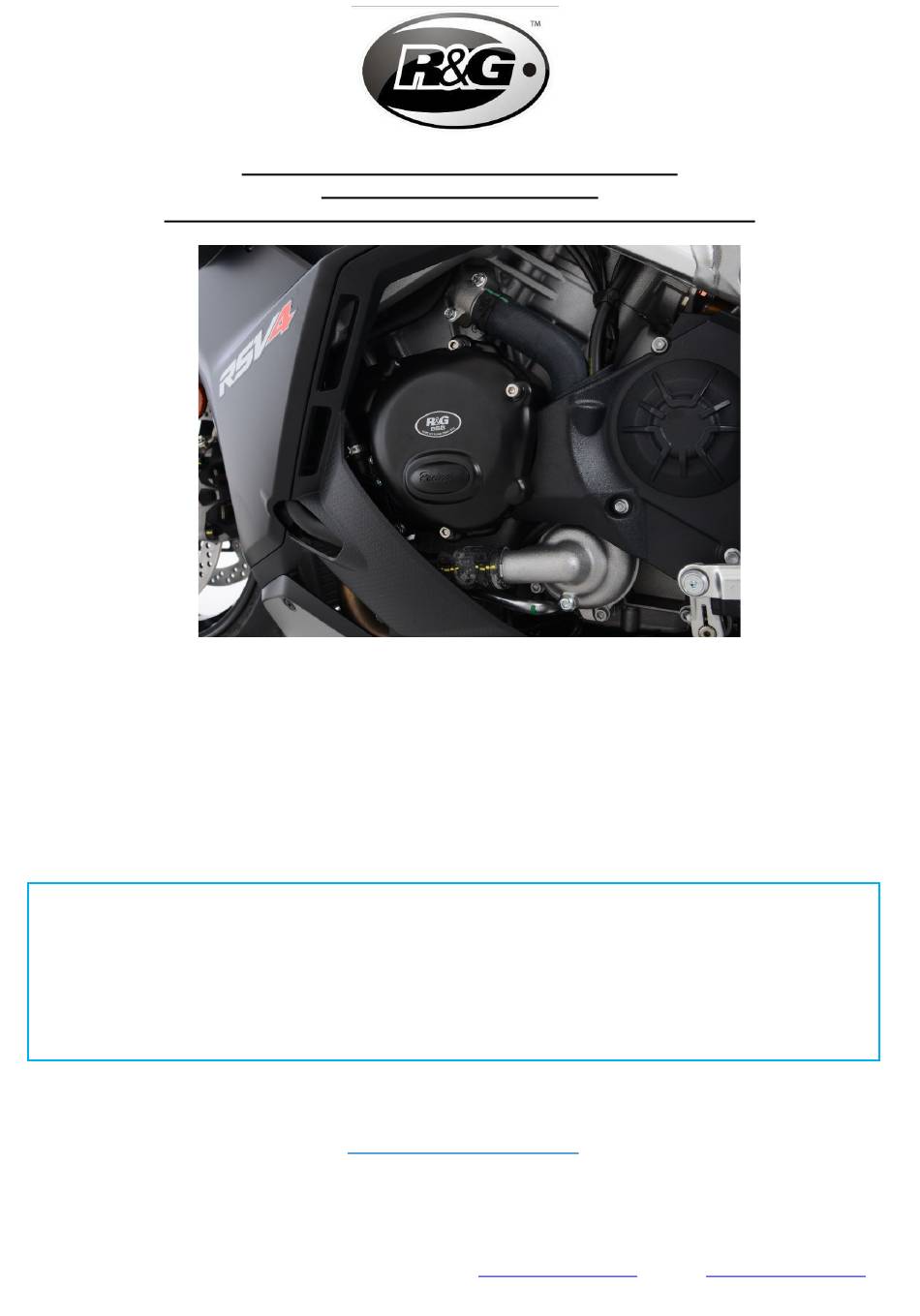

Page 1 of 8
ECC0337R
FITTING INSTRUCTIONS FOR ECC0337R
LHS ENGINE CASE COVER
APRILIA TUONO V4 1100 AND RSV4 (FACTORY) 2021-
T
.
HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
S
.
OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
D
.
O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
P
.
LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
I
,
N THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for R&G ECC0337R
Summary of Contents for R&G ECC0337R
- Page 1 Page 1 of 8 ECC0337R FITTING INSTRUCTIONS FOR ECC0337R LHS ENGINE CASE COVER APRILIA TUONO V4 1100 AND RSV4 (FACTORY) 2021- HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY...
- Page 2 0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM NO. DESCRIPTION ITEM 1 ECC0337R ENGINE CASE COVER INCLUDING FITTED SPACERS ITEM 2 M6 x 1.00 x 50mm CAP HEAD BOLT ITEM 3 M6 x 1.00 x 35mm CAP HEAD BOLT ITEM 4 M6 x 1.00 x 20mm CAP HEAD BOLT (OEM REPLACEMENT)
- Page 3 Ensure the pre-fitted threaded spacers in the casing are hand tight against the inside of the • ECC0337R Engine Case Cover (item 1). • Offer up the R&G cover to the engine and carefully fit it over the casing. Ensure that the three R&G bolt holes are lined up with the holes in the engine casing, and then push on as far as it will go.
- Page 4 Page 4 of 8 ECC0337R ISSUE 1 – 25/02/2022 (AO) CONSUMER NOTICE The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order.
- Page 5 Page 5 of 8 ECC0337R NOTICE DE MONTAGE POUR ECC0356R PROTECTION CARTER CÔTÉ GAUCHE APRILIA TUONO V4 1100 AND RSV4 (FACTORY) 2021- E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS...
- Page 6 M8 BOULON = 20Nm 0 BOULON = 40Nm M12 BOULON = 40Nm LÉGENDE ARTICLE NO. DESCRIPTION QTÉ ECC0337R PROTECTION CARTER MOTEUR AVEC ARTICLE 1 ENTRETOISES ARTICLE 2 M6 x 1.00 x 50mm BOULON ARTICLE 3 M6 x 1.00 x 35mm BOULON ARTICLE 4 M6 x 1.00 x 20mm BOULON (REMPLACEMENT D’ORIGINE)
- Page 7 Assurez-vous que les entretoises filetées préinstallées dans le carter soient serrées à la main contre • l'intérieur du couvercle de carter moteur ECC0337R (article 1). Présentez le couvercle R&G au moteur et placez-le soigneusement sur le carter. Assurez-vous que •...
- Page 8 Page 8 of 8 ECC0337R • R&G décline toute responsabilité si la procédure ci-dessus et les réglages de couple ne sont pas respectés. Vérifiez que tous les composants soient sécurisés et que tous les boulons soient bien serrés avant de •...
