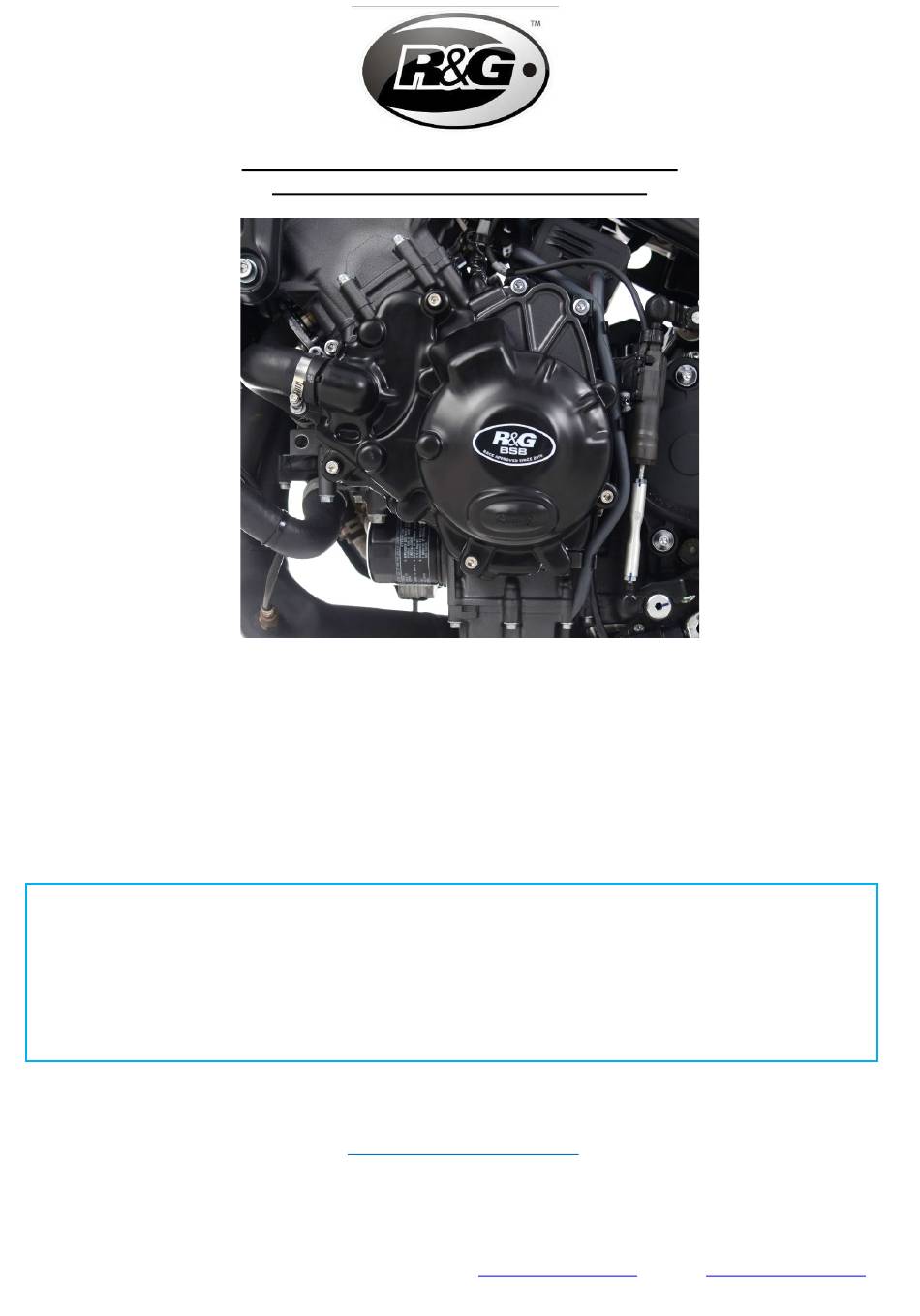

Page 1 of 16
KEC0189R
FITTING INSTRUCTIONS FOR ECC0333R
LHS CRANK & WATERPUMP COVER
T
.
HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
S
.
OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
D
.
O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
P
.
LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
I
,
N THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for R&G ECC0333R
Summary of Contents for R&G ECC0333R
- Page 1 Page 1 of 16 KEC0189R FITTING INSTRUCTIONS FOR ECC0333R LHS CRANK & WATERPUMP COVER HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
- Page 2 M12 BOLT = 40Nm LEGEND ITEM DESCRIPTION ITEM 1 ECC0333R ENGINE CASE COVER (INCLUDING FITTED SPACERS) M6 x 1.00 x 45mm CAP HEAD BOLTS – LOWER CLUTCH AND LOWER WATER ITEM 2 PUMP ITEM 3 M6 x 1.00 x 55mm CAP HEAD BOLTS – LOWER RHS CLUTCH ITEM 4 M6 x 1.00 x 60mm CAP HEAD BOLTS –...
- Page 3 Ensure the pre-fitted threaded spacers in the casing are hand tight against the inside of the • ECC0333R Engine Case Cover (Item 1). Hold the Engine Case Cover loosely over the case to help identify the correct bolts if necessary.
- Page 4 Page 4 of 16 KEC0189R NOTICE DE MONTAGE POUR ECC0333R PROTECTION CARTER MOTEUR CÔTÉ GAUCHE E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N...
- Page 5 0 BOULON = 40Nm M12 BOULON = 40Nm LÉGENDE ARTICLE NO. DESCRIPTION QTÉ ECC0333R PROTECTION CARTER MOTEUR (AVEC ENTRETOISES ARTICLE 1 MONTÉES) M6 x 1.00 x 45mm BOULONS – EMBRAYAGE INFERIEUR ET POMPE A ARTICLE 2 EAU INFERIEURE ARTICLE 3 M6 x 1.00 x 55mm BOULONS –...
- Page 6 Assurez-vous que les entretoises filetées préinstallées dans le carter soient serrées à la main contre • l'intérieur du couvercle de carter moteur ECC0333R (article 1). Tenez le couvercle du carter du moteur sans serrer sur le carter pour aider à identifier les boulons •...
- Page 7 Page 7 of 16 KEC0189R FITTING INSTRUCTIONS FOR ECC0336R RHS PULSE CASE COVER HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
- Page 8 Page 8 of 16 KEC0189R TOOLS REQUIRED GENERAL TORQUE SETTINGS M4 BOLT = 8Nm Set of metric Allen keys • 8mm spanner or socket • M5 BOLT = 12Nm M6 BOLT = 15Nm M8 BOLT = 20Nm 0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM NO.
- Page 9 Page 9 of 16 KEC0189R Ensure the pre-fitted threaded spacers in the casing are hand tight against the inside of the • ECC0336R Engine Case Cover (Item 1). Offer up the R&G cover to the engine and carefully fit it over the casing. Ensure that the bolt holes •...
- Page 10 Page 10 of 16 KEC0189R NOTICE DE MONTAGE POUR ECC0336R PROTECTION CARTER MOTEUR CÔTÉ DROIT E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N ETES PAS SUR QUE TOUTES LES PIECES SOIENT PRESENTES EUILLEZ LIRE TOUTES LES INSTRUCTIONS AVANT DE CONTINUER...
- Page 11 Page 11 of 16 KEC0189R OUTILS REQUIS VALEURS DE SERRAGE Clé Allen M4 BOULON = 8Nm • Clé à molette 8mm • M5 BOULON = M6 BOULON = M8 BOULON = 20Nm 0 BOULON = 40Nm M12 BOULON = 40Nm LÉGENDE ARTICLE NO.
- Page 12 Page 12 of 16 KEC0189R • Maintenez le couvercle du carter moteur sans serrer sur le carter pour aider à identifier les bons trous. NE PAS RETIRER TOUS LES BOULONS DU CARTER. Assurez-vous que les entretoises filetées préinstallées dans le carter sont serrées à la main contre •...
- Page 13 Page 13 of 16 KEC0189R FITTING INSTRUCTIONS FOR ECC0416R HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
- Page 14 Page 14 of 16 KEC0189R TOOLS REQUIRED GENERAL TORQUE SETTINGS M4 BOLT = 8Nm Set of metric Allen keys • 8mm spanner or socket • M5 BOLT = 12Nm M6 BOLT = 15Nm M8 BOLT = 20Nm 0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM NO.
- Page 15 Page 15 of 16 KEC0189R FITTING INSTRUCTIONS Make sure the engine is cold before proceeding to fit the R&G engine case cover. To fit the R&G engine case cover, remove the OEM engine case cover, along with the 4 x M6 engine •...
- Page 16 Page 16 of 16 KEC0189R defect arises from accident or neglect. Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned.
