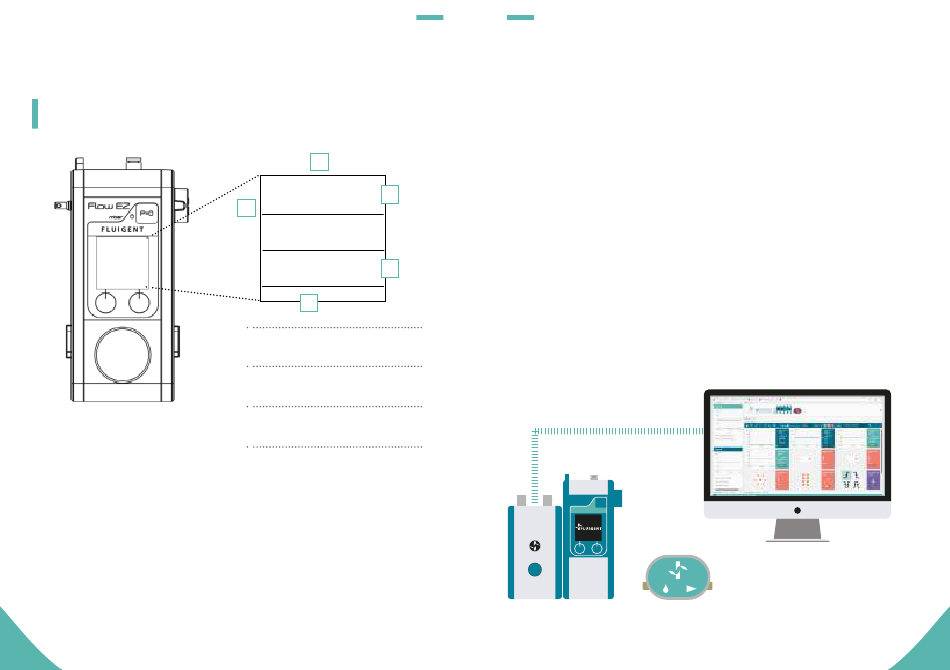

Flow-rate control
When a FLOW UNIT is connected, press the left button "Set Q
Ctrl" to switch to the flow rate control mode.
The user can directly control the flow rate, by setting the flow rate
command (Qcmd)
Although the control mode is in flow rate, the live pressure section
value in the reservoir (Pmeas) is still displayed in the middle, giving
information on the fluidic set-up. Abnormal flow rates may reflect
problems in the microfluidic set-up (leakage, clogging, etc.)
16
SETTING UP
1
Qmeas
H20
87.00
4
2
+
µL/min
M
Pmeas
432.0
mbar
Qcmd
87.00
4
µL/min
Set P Ctrl
Menu
3
1
Measured flow rate
units
displayed can be chosen
2
Flow-rate command
to be
set by the user
3
Go back to pressure
control mode
SETTING UP
OxyGEN:
measure and control the flow-rate
Flow-rate measure
For control using the OxyGEN software a Link module must be
added to the setup:
The link module is a module which allows communication between
the Flow EZ and the computer. For more information please refer to
the lineup user manual :
https://www.fluigent.com/resources-support/support-tools/
downloads/user-manuals/lineup-series-user-manual/
The Link module must be connected to the Flow EZ first.
When the Link is connected to the Flow EZ, coneect the Flow unit to
the Flow EZ.
