Measure And Control The Flow-Rate - Fluigent FLOW UNIT User Manual

Flowboard:

measure and control the flow-rate

After the flow unit and flowboard have been successfully connected,
in order to measure and control flow rate you just need to launch the
Oxygen software.
The oxygen software will automatically detect the instrument
connected to the flowboard and show immediately the flow rate
measure of each connected flow unit on the Flow rate graphs.
For more detailed information please see the Oxygen user
manual in the following link: https: //www.fluigent.com/
resources-support/support-tools/downloads/user-manuals/
24
SETTING UP SETTING UP

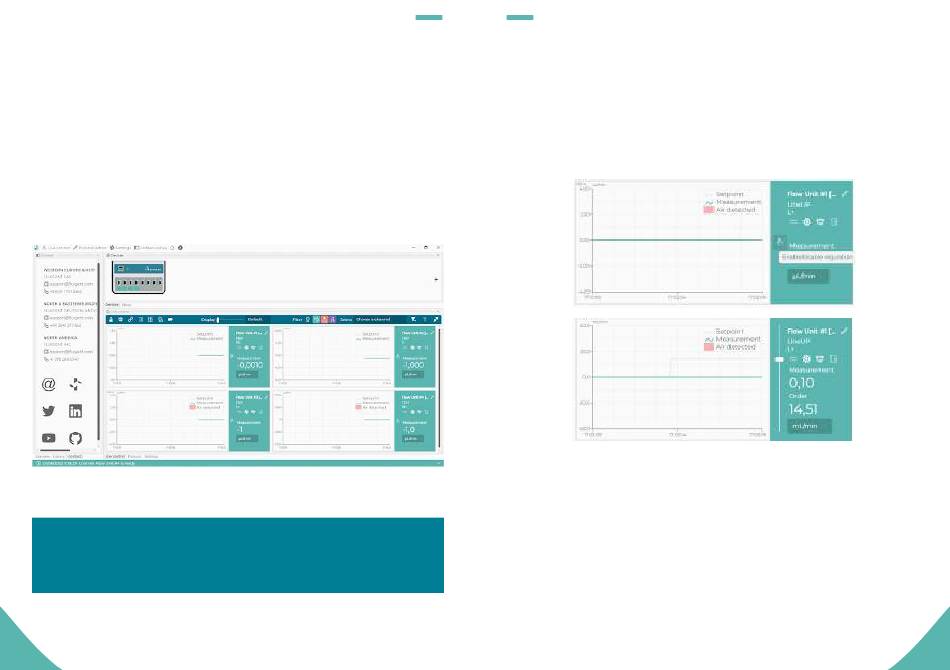

Flow-rate graph
The flow rate graph reports the current flow-rate sensor
measurements . If flow rate control is needed it's possible to click on
the Hand icon to launch the DFC (Direct flow control mode).
The new order can be either given via the vertical cursor if a DFC has
been set up Flow rate graphs or as a number in the dedicated text
field. One can change the unit of reference via the select box under
the "Order" field. The name of the channel (that can be modified) and
its characteristics can be seen in the top right corner.
25
