M+ / L+ connection
1
3
1.

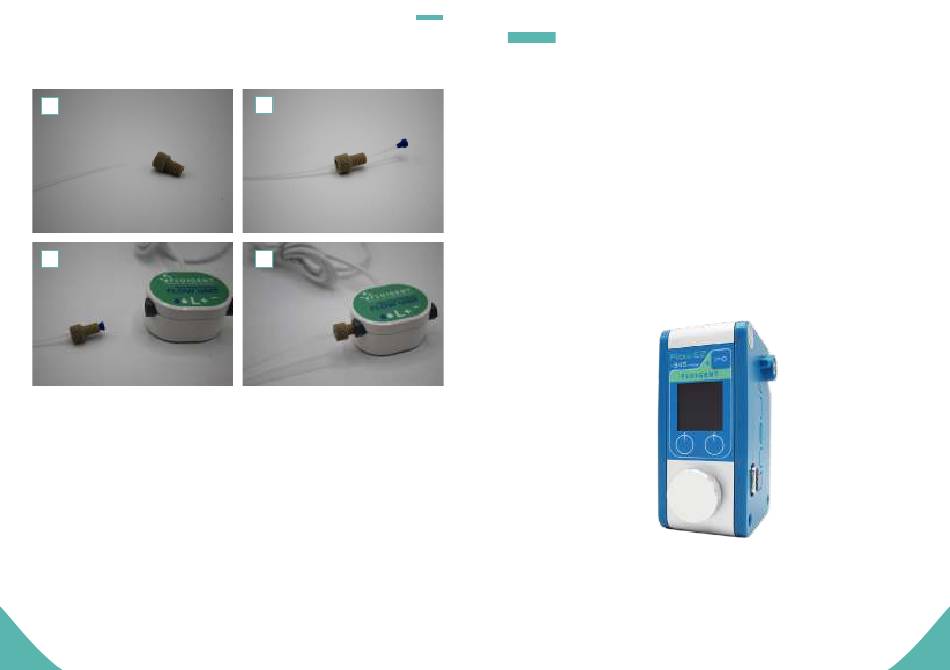

Cut the 1/16'' OD tubing to the desired length, leaving a square-cut fac.
2. Slide the nut over the tubing with the nut thread facing the tubing
end being connected.
Slip the ferrule over the tubing, with the tapered portion of the ferrule
facing the nut. NB: the nuts and ferrules are specifically designed to
work together.
(FLUIGENT advises you to only associate the provided ferrules with
the provided nuts and vice-versa).
3. Insert the assembly into the receiving port, and while holding the
tubing firmly against the bottom of the port, tighten the nut finger tight..
4.
To check the tightness of your connection, you may pull gently on
the tubing: it must stay fitted in the ferrule and nut.
5.
Do the same thing on the 2nd port.
12
DESCRIPTION
2
4

SETTING UP WITH FLOW EZ

Flow EZ
description
TM
The Flow EZ™ is the most advanced system available for pressure-based
flow control. The compact device stands near the microfluidic device,
allowing the user to minimize bench space use without the need of a
PC. One can be operational and generate data rapidly. The Flow EZ™
supports reservoir sizes from 2 mL to one liter laboratory bottles. One
can use large reservoirs and maintain continuous, pulseless flow for
days without refilling.
Combined with FLOW UNIT it allows access in real time flow rate
measure and control on your system.
TM
13
