Bubble detection

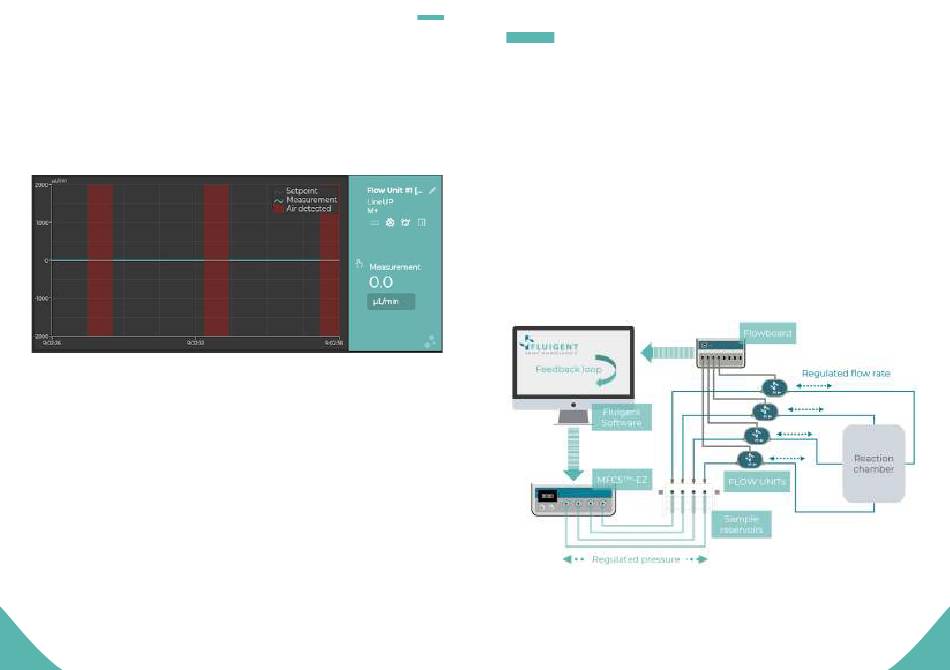

When air is detected, red aeras will be displayed on the flowgraph
over the period of detection.
20
SETTING UP

SETTING UP WITH FLOWBOARD

For the use of our FLOW UNIT sensor range without Flow EZ
Flowboard is a product that must be used. This device hosts up to eight
(8) FLOW UNIT models and provides them power supply.
The Flowboard is also the link between the connected FLOW UNIT
models and the software OxyGEN.
When combining the FLOW UNIT with the MFCS
the OxyGEN software.
TM the
-EZ, one must use
TM
21
