Anden 5859 Installation Instructions

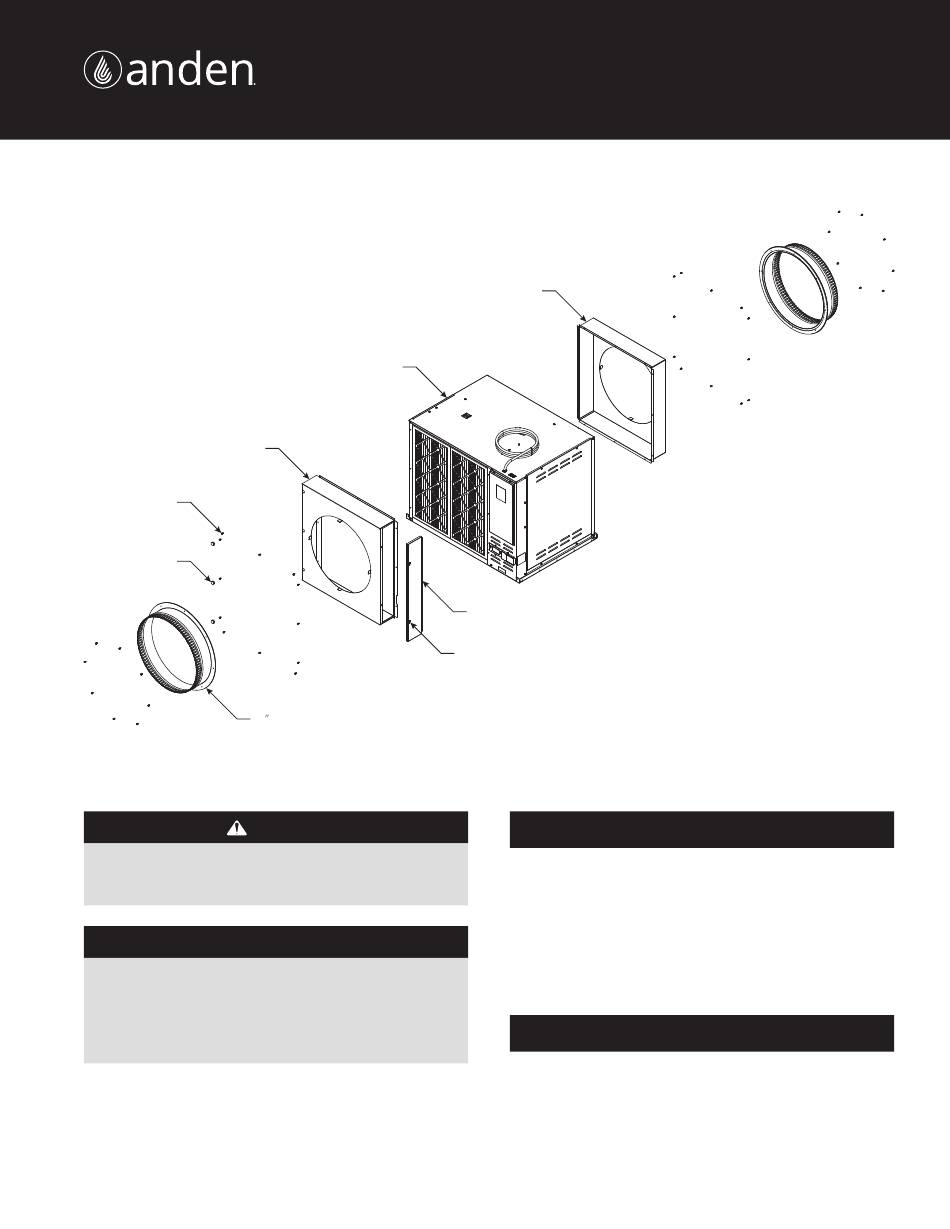

HOUSING INLET
SCREWS x40
SEALING PLUGS x3
24 INLET RING x2
CAUTION
Sharp edges may cause serious injury from cuts. Use care when
cutting plenum openings and handling duct work.
NOTICE
• Failure to follow ducting guidelines may negatively impact unit
performance.
• Minimize equivalent duct length to maximize unit capacity and
efficiency.
Part #5859 Round Duct Kit
for Model A710 Dehumidifier
Installation Instructions
MODEL A710 DEHUMIDIFIER
THUMB SCREWS x2
HOUSING OUTLET
FILTER ACESS DOOR
TABLE OF CONTENTS
Airflow Delivery Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Ducting Sizing and Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Duct Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Replacing the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Overall Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
AIRFLOW DELIVERY SPECIFICATIONS
• Nominal airflow through dehumidifier is 1760 cfm .
• Airflow decreases as duct length and bends increase, therefore if
the equivalent duct length is too long the dehumidifier will cease to
function properly .
90-2578
1
