Digilent, Inc.
125 SE High Street
Pullman, WA 99163
(509) 334 6306 (Voic e and Fax)
www.digilentinc.com
Digilab XC95 Reference Manual
Revision: May 7, 2002
Overview
The Digilab XC95 (DXC95) development
board featuring the Xilinx 95108 CPLD
provides an inexpensive and expandable
platform on which to design and implement
basic digital circuits. The board can also be
used to program other Digilent peripheral
boards (such as the DIO2 board) that contain
CPLD devices. DXC95 board features include:
• A Xilinx 95108 CPLD with 108
macrocells;
• An on-board 1.5A, 5VDC power
regulator;
• A socketed 1.842MHz oscillator;
• A JTAG-based programming port using a
standard parallel cable;
• A status LED and pushbutton for basic
I/O;
• Two 100-mil spaced, right-angle DIP
socket 40-pin expansion connectors.
The DXC95 board has been designed
specifically to work with the Xilinx ISE CAD
tools, including the free WebPack tools
available from the Xilinx website. Like other in
the Digilab family, the DXC95 board has been
partitioned so that only the hardware required
Copyright Digilent, Inc. All rights reserved
PRELIMINARY
5 VDC
Power
jack
regulator
5-9VDC
JTAG
port
External
JTAG port
Expansion F
Switch

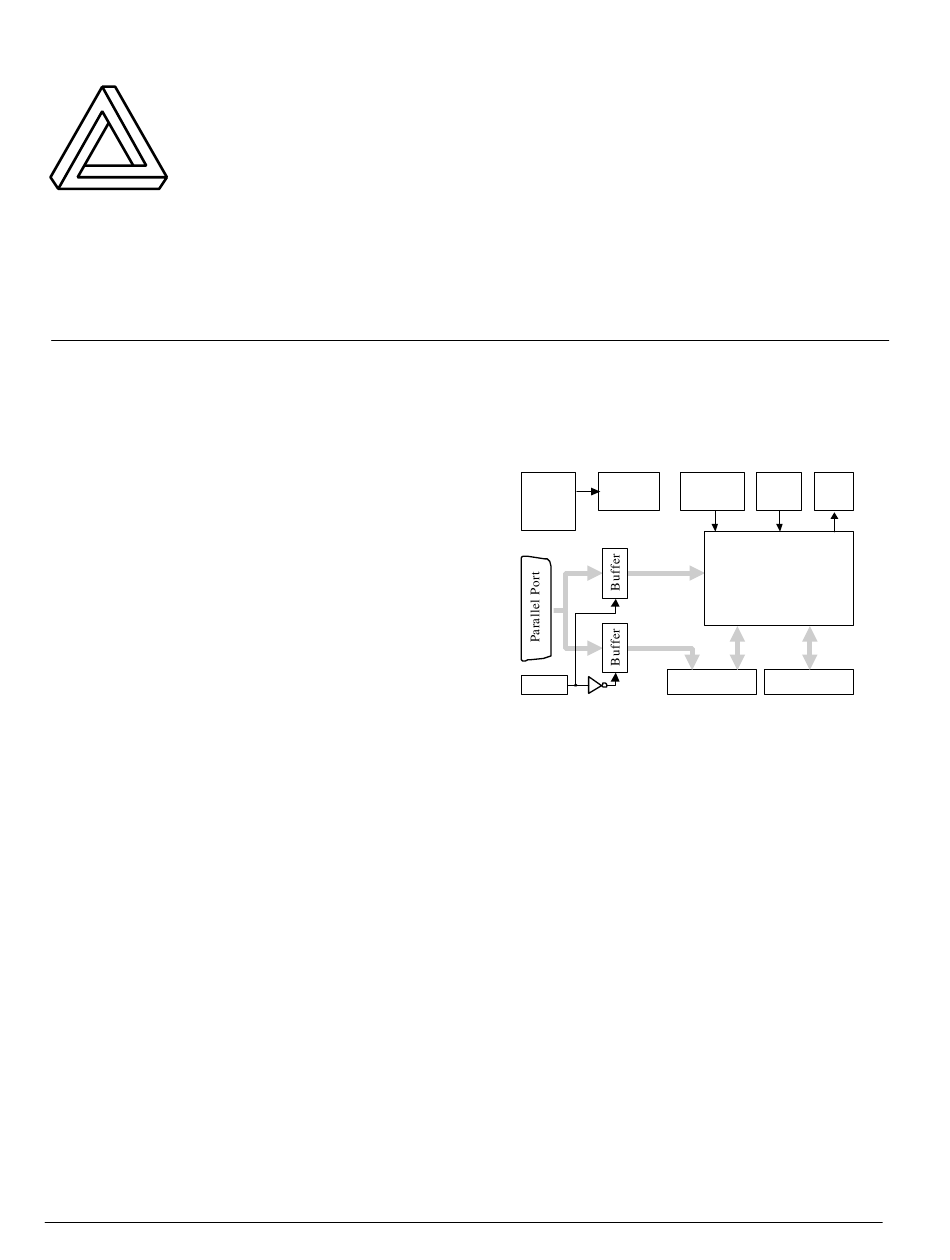

Figure 1. DXC95 board schematic
by a particular project need be purchased.
Several peripheral boards that mate with the
expansion connectors are available, such as the
DIO1 board that provides several basic I/O
devices (see www.digilentinc.com for more
information). The low-cost, standard expansion
connectors allow new peripheral boards,
including wire-wrap or manually soldered
boards, to be quickly designed and used. The
DXC95 board ships with a power supply and
programming cable, so designs can be
implemented immediately without the need for
any additional hardware.
1.84MHz
Push
Status
LED
CLK
button
Xilinx XC95
CPLD
PC84
Expansion E
Document: 502-010

Advertisement

loading
Need help?

Need help?

Do you have a question about the Digilab XC95 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digilent Digilab XC95

  • Page 1 Overview 5 VDC 1.84MHz Push Status Power jack regulator button The Digilab XC95 (DXC95) development 5-9VDC board featuring the Xilinx 95108 CPLD JTAG provides an inexpensive and expandable Xilinx XC95 port platform on which to design and implement CPLD PC84 basic digital circuits.
  • Page 2: Functional Description

    Digilab XC95 Reference Manual Digilent, Inc. Functional description The Digilab DXC95 board has been designed to offer a low-cost and minimal system for designers who need a flexible platform to gain exposure to Xilinx CPLDs, or for those who need to prototype CPLD-based designs rapidly.
  • Page 3 Digilab XC95 Reference Manual Digilent, Inc. Pin 13 Pin 1 EPP signal EPP Function Write Enable (O) Low for read, High for write Data bus (B) Bidirectional data lines Pin 25 Pin 14 Interrupt (I) Interrupt/acknowledge input DB25 parallel port connector Wait (I) Bus handshake;...
  • Page 4: Power Supplies

    Digilab XC95 Reference Manual Digilent, Inc. Oscillator The DXC95 board provides a socketed half-size 8-pin DIP oscillator. The board ships with a 1.8MHz oscillator, but oscillators from 32KHz to 50MHz can easily be substituted, allowing for a wide range of clock frequencies.
  • Page 5: Expansion Connectors

    3. Pins 4-40 for both connectors route directly to individual CPLD pins. The connectors are separated by 400 mils, so any Digilent peripheral board can be used with the DCX95 board. The PC84 package used on the DXC95 board has 69 signal pins available to the user (the remaining pins are used for VCC, GND, and JTAG).
  • Page 6 Digilab XC95 Reference Manual Digilent, Inc. XC95108 CPLD Function Function LED1 The block diagram of the DXC95 board shows all connections BTN1 between the CPLD and the devices on the board. All CPLD pin connections are shown in the table.
