Network Configuration Windows
The Network tab on the dashboard provides access to windows for Ethernet, SNMP,
SNMP Trap configuration, and Ping.
Network - Ethernet Configuration
Use this window to configure or modify the Ethernet setting for LAN1 - LAN4, and to
manually set the DNS server address for LAN1. There is a separate "Apply" button
for each Ethernet port and the DNS server address configuration.
The following Ethernet parameters can be configured:
Speed

– Auto Configuration | 100 Mbps | 1000 Mbps
IP format

– IPv4 | IPv6
Config

– Static | Dynamic
– IPv6 Auto Config
IP address

Subnet mask for IPv4, prefix length for IPv6

Gateway address

See Figure 4-12. See
isolation, management port rules, and timing port rules.

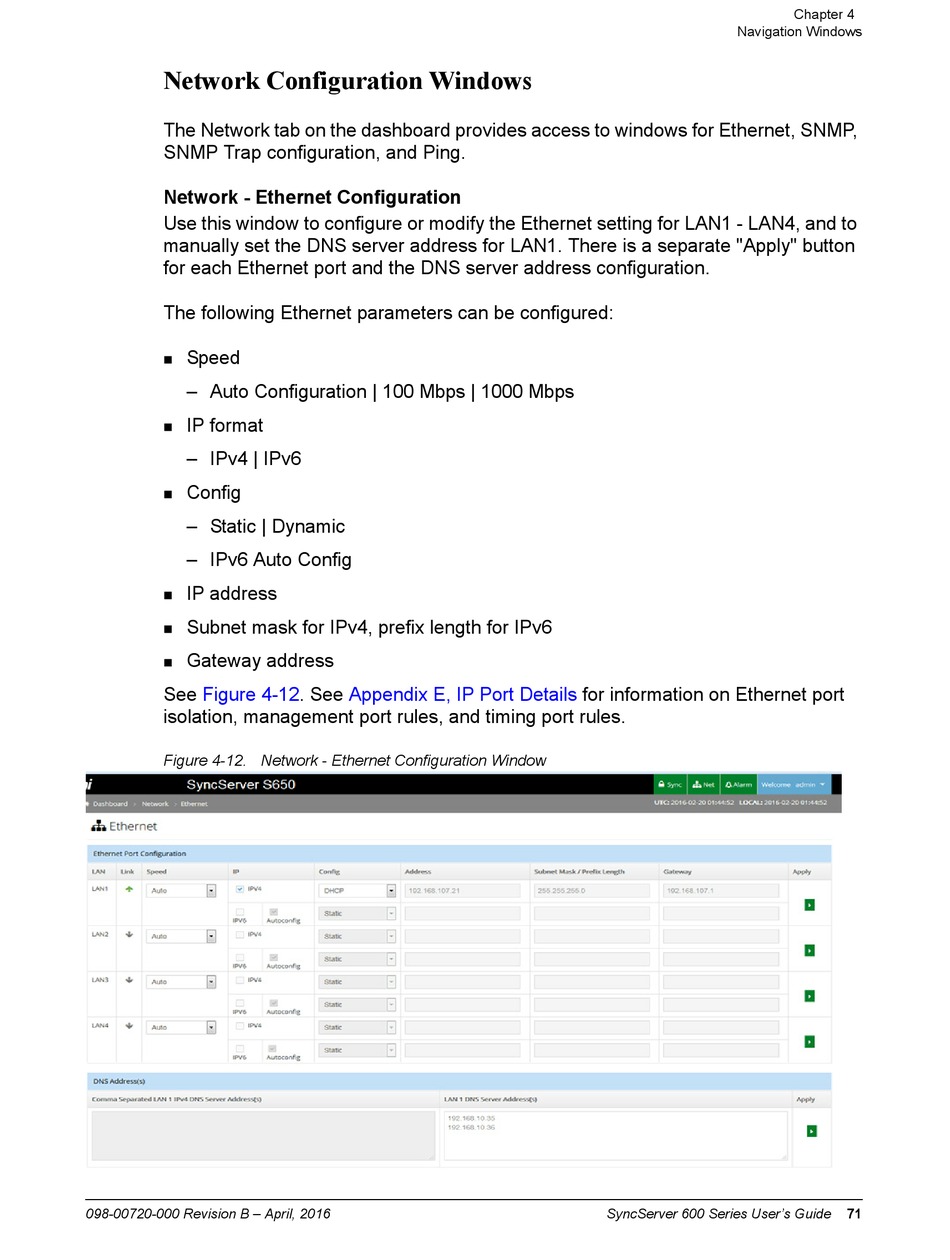

Figure 4-12. Network - Ethernet Configuration Window
098-00720-000 Revision B – April, 2016
Appendix E, IP Port Details
Navigation Windows
for information on Ethernet port
SyncServer 600 Series User's Guide
Chapter 4
71
