10 / 5 / 1 MHz Output

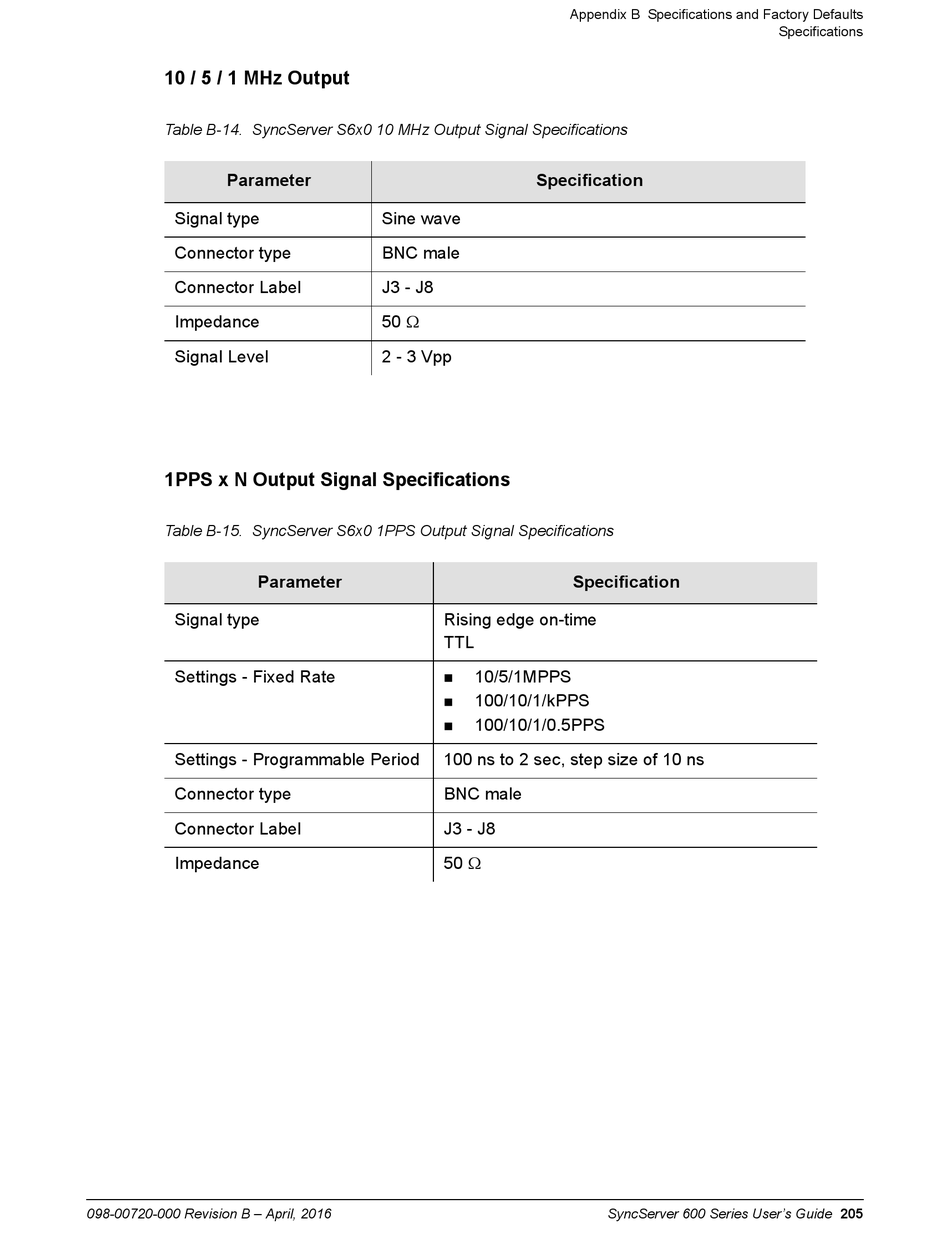

Table B-14. SyncServer S6x0 10 MHz Output Signal Specifications
Parameter
Signal type
Connector type
Connector Label
Impedance
Signal Level
1PPS x N Output Signal Specifications
Table B-15. SyncServer S6x0 1PPS Output Signal Specifications
Parameter
Signal type
Settings - Fixed Rate
Settings - Programmable Period
Connector type
Connector Label
Impedance
098-00720-000 Revision B – April, 2016
Specification
Sine wave
BNC male
J3 - J8
50 
2 - 3 Vpp
Rising edge on-time
TTL
10/5/1MPPS

100/10/1/kPPS

100/10/1/0.5PPS

100 ns to 2 sec, step size of 10 ns
BNC male
J3 - J8
50 
Appendix B Specifications and Factory Defaults
Specification
SyncServer 600 Series User's Guide 205
