IRIG Input

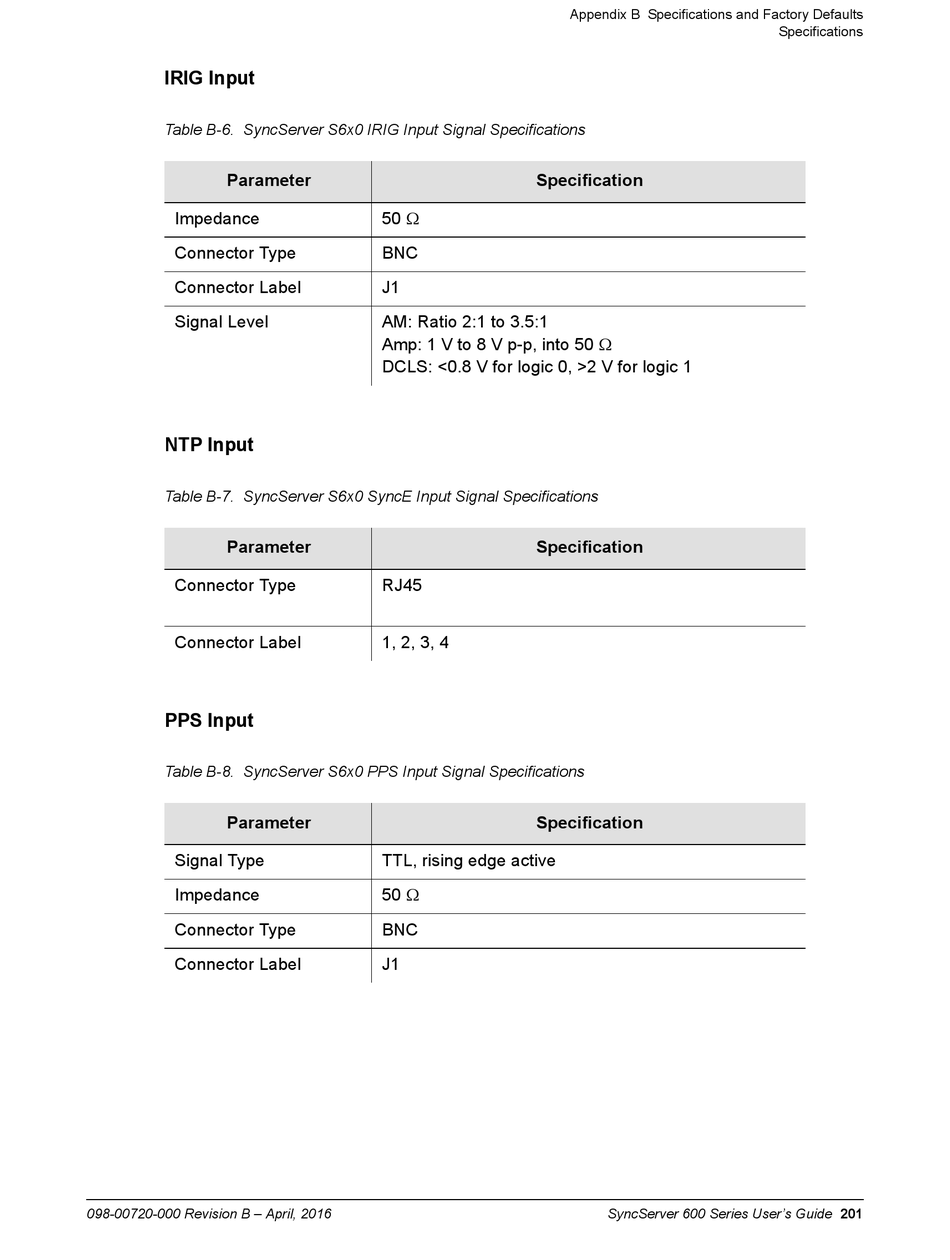

Table B-6. SyncServer S6x0 IRIG Input Signal Specifications
Parameter
Impedance
Connector Type
Connector Label
Signal Level
NTP Input
Table B-7. SyncServer S6x0 SyncE Input Signal Specifications
Parameter
Connector Type
Connector Label
PPS Input
Table B-8. SyncServer S6x0 PPS Input Signal Specifications
Parameter
Signal Type
Impedance
Connector Type
Connector Label
098-00720-000 Revision B – April, 2016
Specification
50 
BNC
J1
AM: Ratio 2:1 to 3.5:1
Amp: 1 V to 8 V p-p, into 50 
DCLS: <0.8 V for logic 0, >2 V for logic 1
Specification
RJ45
1, 2, 3, 4
Specification
TTL, rising edge active
50 
BNC
J1
Appendix B Specifications and Factory Defaults
SyncServer 600 Series User's Guide 201
Specifications
