As you read these instructions, you will see NOTES, CAUTIONS, and WARNINGS. Each message has a specific
purpose. NOTES are additional information to help you complete a procedure. CAUTIONS are safety messages that
indicate a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. A CAUTION
may also be used to alert against unsafe practice or possible equipment damage. WARNINGS are safety messages that
indicate a potentially hazardous situation, which, if not avoided could result in serious injury. CAUTIONS and
WARNINGS identify the hazard, indicate how to avoid the hazard, and advise of the probable consequence of not
avoiding the hazard. PLEASE WORK SAFELY!
SEVERE INJURY OR DEATH MAY RESULT IF YOU IGNORE ANY OF THE FOLLOWING:
· Read the Winch Operator Manual, the ATV Operator Manual, and all warning labels before operating or
using your ATV winch.
· Always stay clear of moving parts and cables. Keep others away when operating the winch.
· Always inspect the winch mechanism, fasteners, cables, and adjustments before operating. Replace all worn
or damaged parts before operating.
· Always deactivate the winch before leaving the ATV unattended.
READ THE WINCH OPERATOR MANUAL BEFORE FREESPOOLING THE WINCH OR ATTACHING
THE HOOK. BE CAREFUL WHEN CUTTING THE RUBBERBAND, THE CABLE IS PRESTRESSED
AGAINST THE DRUM AND MAY UNWIND QUICKLY AND WITHOUT NOTICE POSSIBLY HARMING
THE OPERATOR.
THE WINCH, WINCH PLATE, AND FAIRLEAD ASSEMBLY IS HEAVY. USE PROPER LIFTING TECH-
NIQUE WHEN LIFTING THE ASSEMBLY. KEEP TOES AND OTHER EXTREMITIES FROM BEING
UNDERNEATH THE ASSEMBLY IN CASE THE ASSEMBLY IS ACCIDENTLY DROPPED. USE AN-
OTHER PERSONS ASSISTANCE IF NEEDED.
FAILURE TO SECURELY TIGHTEN ALL BOLTS ON THE WINCH PLATE, WINCH, AND FAIRLEAD
CAN RESULT IN PRODUCT FAILURE WHICH MAY RESULT IN VEHICLE DAMAGE AND OPERATOR
INJURY OR DEATH. DOUBLE CHECK THAT ALL BOLTS ARE SECURELY TIGHTENED PRIOR TO
USE.
PERFORM REGULAR INSPECTIONS ON THE WINCH, WINCH MOUNT, AND RELATED HARDWARE.
NEVER OPERATE THE WINCH WITH DAMAGED OR MISSING PARTS. FAILURE TO FOLLOW THIS
WARNING MAY CAUSE VEHICLE DAMAGE AND OPERATOR INJURY OR DEATH.
WARN INDUSTRIES
INSTALLATION INSTRUCTIONS
ATV WINCH ACCESSORY

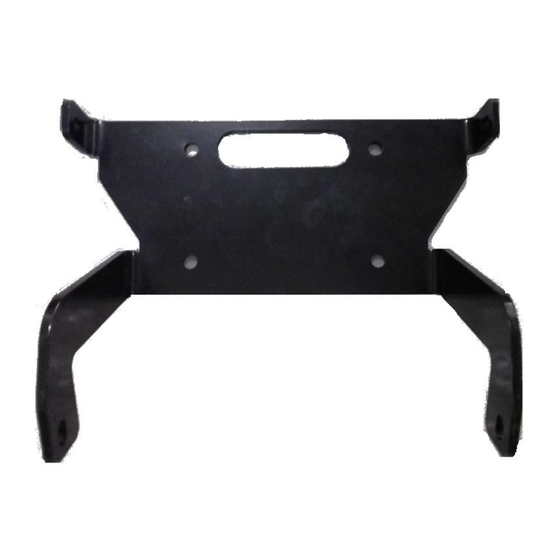

Winch Mount Kit: WARN PN 60004
Application: BOMBARDIER, TRAXTER AND QUEST
WARNING
PAGE 1
(Does not fit 3.0ci)
60003 B2
