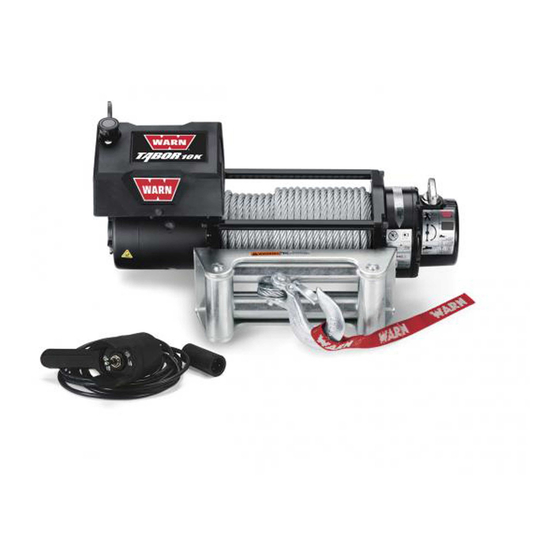

Tabor 10000 WINCH
Part Number: 88395
Rated Line Pull: 10000 lbs. (4536 kgs)
Motor: 12V DC, Series Wound
Controls: Remote switch, 12" (3.7m) Lead
Gear train: 3-Stage Planetary
Gear Ratio: 261:1
Clutch (Freespool): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/length: 2.5"/9.0" (6.4cm/23cm)
Kit Shipping Weight: 89 lbs. (40.4 kgs)
Rope: Wire Rope, Ø 3/8" x 80' (Ø 10mm x 29m)
Fairlead: Roller
Recommended Battery: 650CCA Minimum for winching
Duty Cycle: Intermittent
Battery leads: 2 gauge, 72" (1.83m)
Finish: Black Powder Coat
Warranty: Limited Lifetime
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

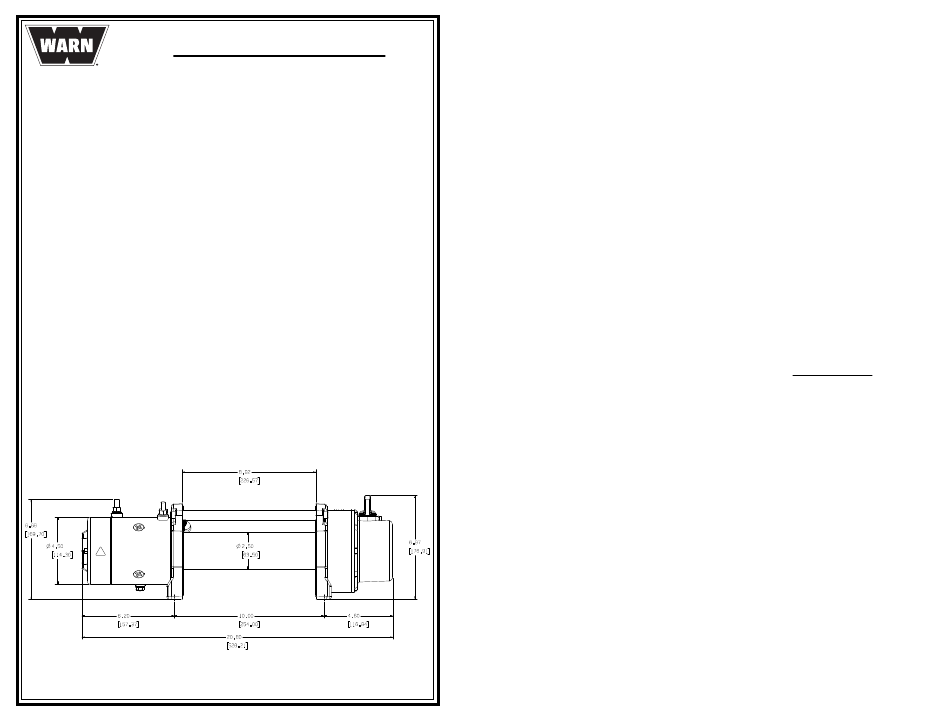

Winch Dimensions: 20.80" L x 6.3" D x 6.97" H (528mm L x 160mm D x
177mm H)
WARN Industries, Inc.

SERVICE INSTRUCTIONS

Should you encounter a problem during installation or operation of your
winch, please follow these steps toward resolving the problem:
1.
Refer to your operator's guide and installation instructions. It has
illustrations and detailed information on the installation and safe and
proper operation of your winch. It also includes a replacement parts list
and assembly diagrams. If you are unable to resolve the problem, then
go to step 2.
2.
Contact your dealer where you purchased your winch. If, after discussing
the problem with their parts and service staff, you are still unable to
resolve the problem then go to step 3.
3.
Call an Authorized WARN Service center from the list provided on the
back of the warranty sheet included with the product. When calling,
please have the following information available: winch model number
and purchase date, make, model and year of vehicle.
4.
If you are unable to resolve the problem to your satisfaction, please call
Warn Industries Customer Service at: 1-800-543-9276. When calling,
please have the following information available: winch model number
and purchase date, make, model and year of vehicle. You may also
contact Warn Industries by visiting our website: www.warn.com

SERVICE/UPGRADE KITS

KIT #
KIT 1
92083
KIT 2
92077
KIT 3
86473
88397A2
WARN Industries, Inc.
PN
ITEM
QTY
DESCRIPTION
END HOUSING KIT
1
1
END HOUSING
2
1
CLUTCH LEVER
3
1
SEAL, O-RING
4
1
CLUTCH LEVER DETENT SCREW
5
1
RING GEAR, SLIDING
6
10
CAPSCREW, 10-24
7
1
GASKET
8
1
THRUST WASHER
DRUM SUPPORT KIT
21
1
GEAR SIDE DRUM SUPPORT
22
1
MOTOR SIDE DRUM SUPPORT
23
2
BUSHING
TIE ROD KIT
24
2
TIE ROD
25
4
5/16" BOLTS
88397A2
