5.3 ODU Protection Ground Cable

The ODU protection ground cable is used to connect the left grounding screw of the ODU and
the outdoor ground point such as the ground point on the tower, so that the ODU is connected
to the outdoor ground counterpoise.
Cable Diagram

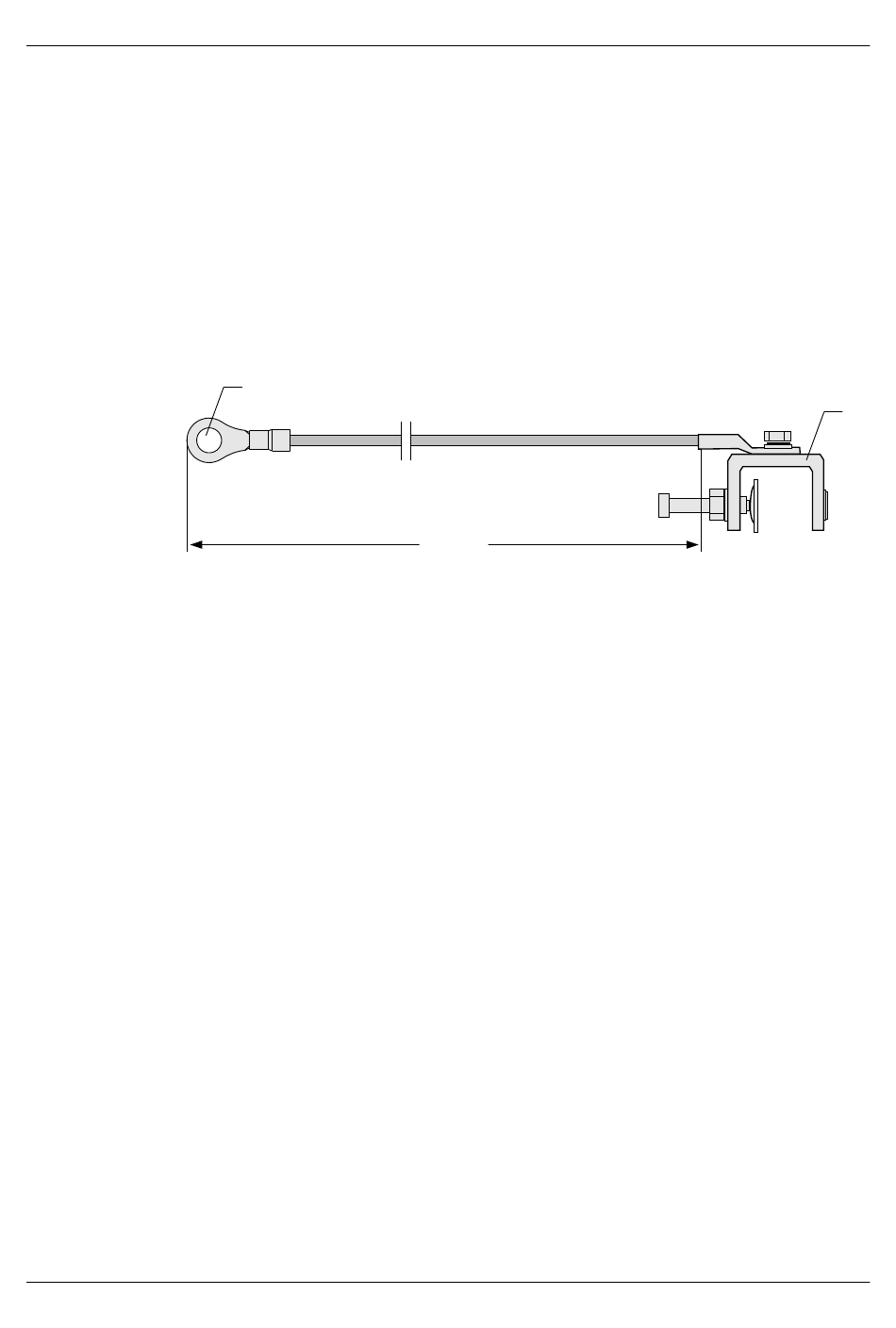

Figure 5-3 View of the ODU protection ground cable

1. Naked crimping connector, OT
Cable Connection Table
None.
